Attach Handle To Pressure Washer
Place the handle on the pump side of the
pressure washer in the center of the frame.
Attach the handle to the frame using the supplied
bolts (Figure 1).
Attach the Exhaust Deflector
Note: This Step is optional.
The exhaust deflector channels the hot air coming
from the muffler to the ground. To install the exhaust
deflector:
Attach the deflector to the muffler using the three
screws provided (Figure 2).
Connect Hose and water supply to
pump
Important: You must assemble the wand and attach
all hoses before you start engine. Starting engine
without all hoses connected and water supplied will
damage pump.
Unravel the high pressure hose.
Attach the gun to the high pressure hose using
the quick connect fitting. Pull back on the quick
connect sleave and push the fitting all the way in.
Tug on the gun to ensure a secure connection
(Figure 3).
Connect the hose to the water outlet. Tighten by
hand (Figure 4).
7
Generac Portable Products 3200 PSI Pressure Washer

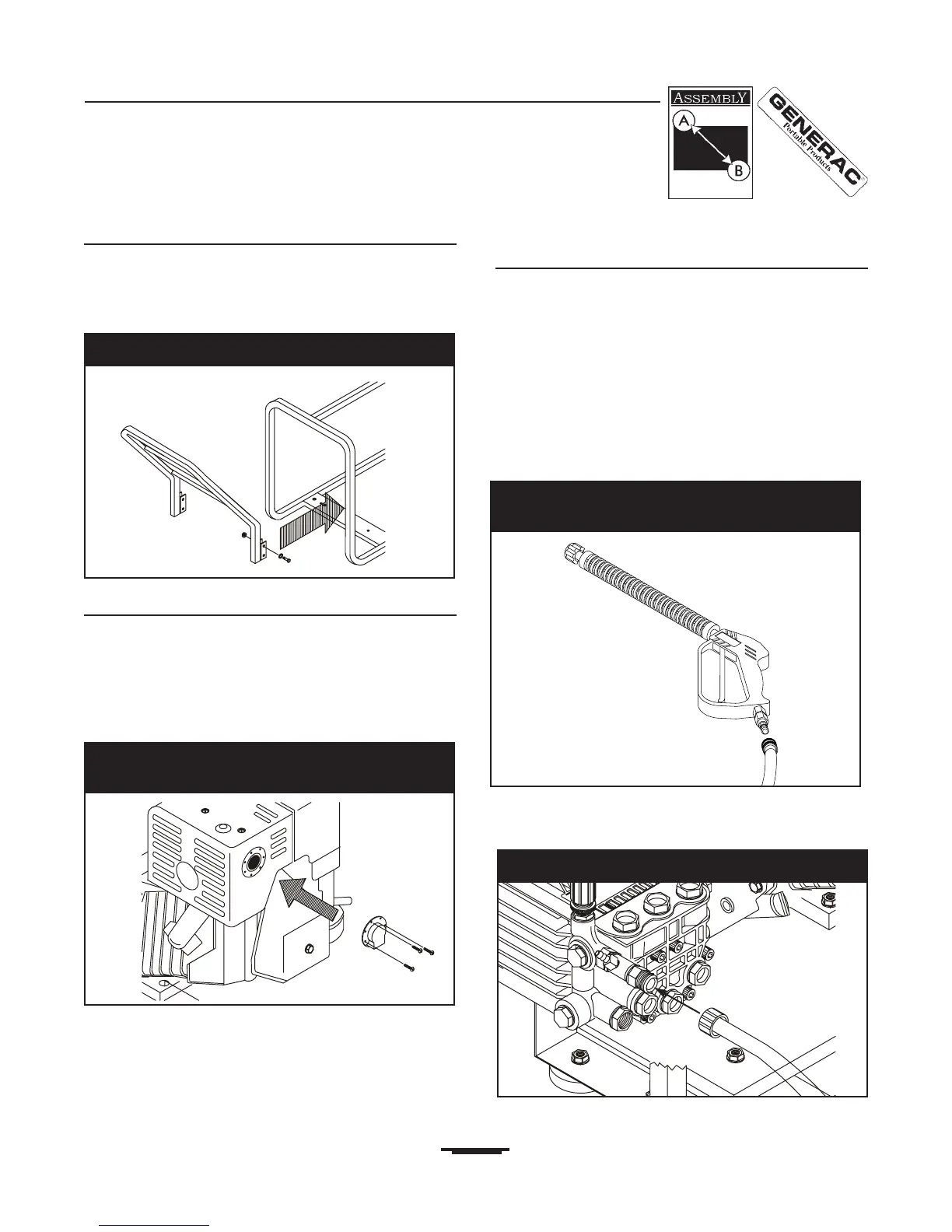

Figure 2 Attach the exhaust deflector
Figure 1 Attach the Guide Handle
Figure 3 Connect high pressure hose to spray
gun
Figure 4 Connect high pressure hose to pump
