Automatic Standby Generator Owner’s Manual 13

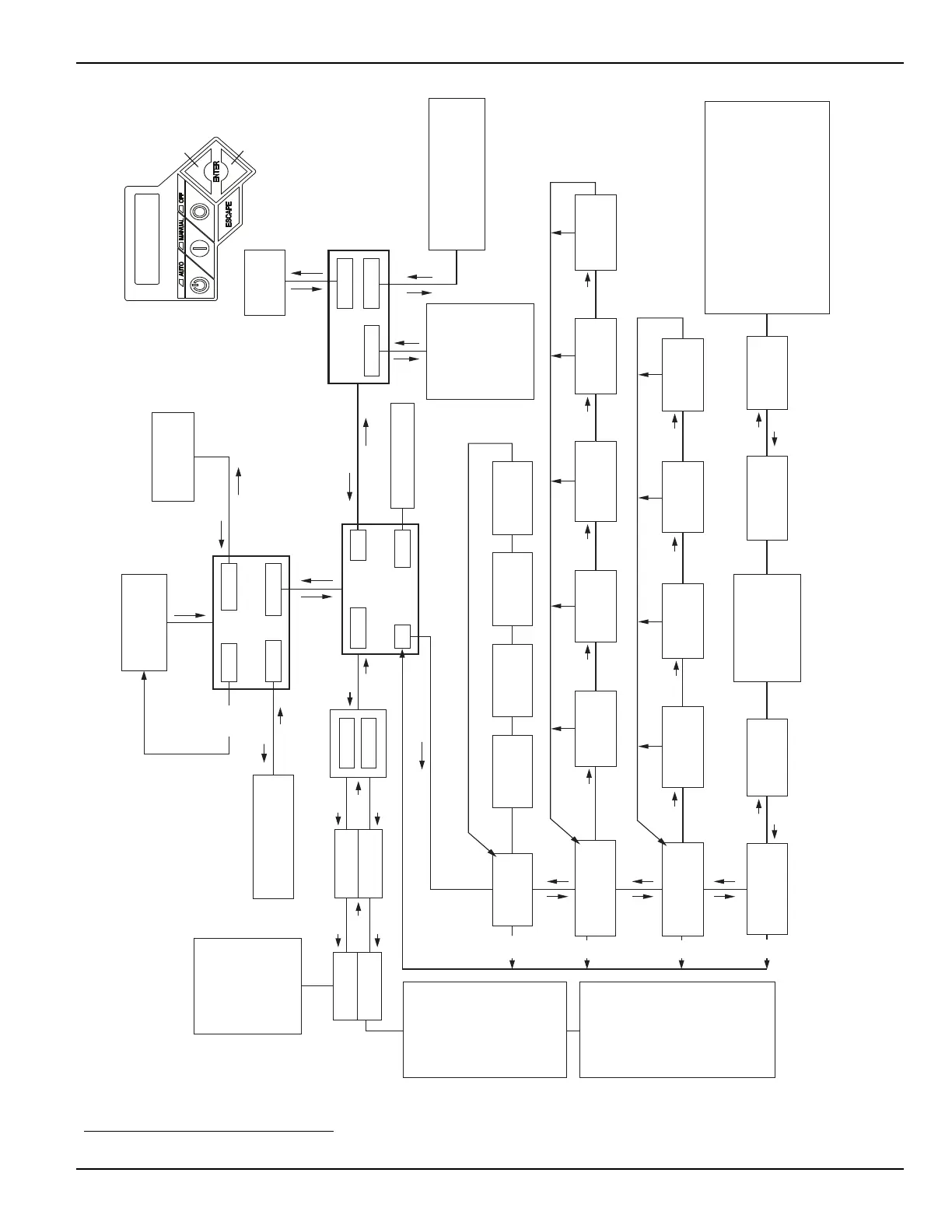

Figure 3-3: Navigation Menu
2013 HSB MENU MAP
0198170GST-B 02/25/13 Page 1 of 4
UP ARROW =
+
DOWN ARROW =
-
“Run Log”
ESC ENTER ENTER
ESC
SYSTEM
BATTERY
DATE/TIME
SUB MENUS
HISTORY EDIT
MAINT
DEALER
Inspect Battery 200 RnHr or 12/27/13
and
Next Maintenance 200 RnHr or 12/27/13
Exercise Time
Å 14:00 Wednesday Æ
Firmware Update
Å Press Enter Æ
Battery Condition
“Good” or “Check Battery”
Current Date/Time
02/14/13 07:40
ESC
ESC
ESC
ENTER
ENTER
Current Date/Time
Å 2/12/13 12:22 Æ
ESC ENTER
ESC
ESC
ESC ESC
ENTER
ENTER
ESC ESC ESC ESC
ENTER
ENTER
ENTERENTER
ESC
ESC
ESC ENTER
MAINT:
Maint. Log
Run Hrs
Scheduled
ENTER
ESC ENTER
Select Day
- Wednesday +
ENTER
ENTER
ENTERENTER
Select Month (1-12)
- 2 +
Run Hours (H)
0.0
ENTER
Select Date (1-31)
- 13 +
ENTER
Select Year (0-99)
- 13 +
ENTER
ENTER
ENTER
ENTER
Switched to “OFF”
Hours of Protection
0 (H)
Access Requires Password
Language
Å English Æ
Possible Message(s)
Corrupted File
Invalid File
File Not Found
Unsupported Device
"Current:V XXXX "
"USB: V XXXX"
"Are You Sure?"
"- Yes or No +"
ESC
ENTER
Firmware Update
Å Insert USB Æ
“Alarm Log”
- Alarm Log +
- Run Log +
- 1 thru 50 + - 1 thru 50 +
ESCENTER
ESCENTER
Select “Yes” then Press “Enter” to continue or Press “ESCAPE” to escape out of updating. During update process the Blue “Manual” light flashes, then the Green “Auto” light flashes. Sequence does this twice. When update is complete the unit returns to Install Wizard menu. When the controller powers up the very first screen displays the version number for a few seconds. When update is complete remove Thumb Drive.
- 1 thru 50 +
"Battery Maintained"
"Schedule A Serviced"
"Schedule B Serviced"
"Maintenance Reset"
"Inspect Battery"
"Service Schedule A"
"Service Schedule B"
Warning Message(s)
"Low Battery"
"Exercise Set Error"
"FIRMWARE ERROR-9"
"Fuel Pressure"
"Battery Problem"
"Charger Warning"
"Charger Missing AC"
"Overload Warning"
"Overload Cooldown"
"SEEPROM ABUSE"
"USB Warning"
"Download Failure"
Running Manual
Running-Utility Lost
Running-Remote Start
Running-2 Wire Start
Running - Exercise
Switched Off
Stopped - Auto
Stopped - Alarm
Alarm Message(s)
"High Engine Temp."
"Low Oil Pressure"
"Overcrank"
"Overspeed"
"RPM Sense Loss"
"Underspeed"
"Internal Fault"
"FIRMWARE ERROR-7"
"WIRING ERROR"
"Over Voltage"
"Under Voltage"
"Overload Remove Load"
"Low Volts Remove Load"
"Stepper Over Current"
"Fuse Problem"
ESC
Select Min (0-59)
- 0 +
ESC
Select Hour (0-23)
- 14 +
ESC
Select Min (0-59)
- 0 +
ESC
Select Hour (0-23)
- 14 +
ESC
Quiet Test Mode ?
- YES or NO +
Quiet Test Mode only
on certain models
Language
+ English -
Language
+ Espanol -
Language
+ Francais -
Language
+ Portuguese -
+
-
+
-
+
-
+
