(1) 1 0G3337 1 ROOF 1.6L C1
(1) 2 0G3336 1 REAR INTAKE WRAP 1.6L C1
(2) 3 077992 16 NUT HEX LOCK M6-1.0 SS NY INS
(1) 4 0G3341 2 RIGHT SIDE DOOR 1.6L C1
(1) 5 0G3335 1 FRONT DISCHARGE WRAP 1.6L C1
6 0F4487A 1 ASSY ACCESS COVER
7 022127 1 NUT HEX 1/4-20 STEEL
8 022097 1 WASHER LOCK M6-1/4
9 022473 1 WASHER FLAT 1/4-M6 ZINC
10 0C2454 16 SCREW THF M6-1 X 16 N WA Z/JS
11 0F5048D 2 VISE-ACTION LATCH, SLOTTED CIR
12 0F5049 2 TAB PULL
13 0F8869D 1 KEY VISE-ACTION LATCH,SLOT CIR
14 089961 1 FOAM STRIP 3/4"WIDE X 3/16"THK (294”LG)
15 078115 18 WASHER SELF LOCKING DOME
16 0G4029 2 INSULATION SIDE DOOR C1
17 0G4029A 1 INSULATION ROOF C1
18 0F3890 5 RETAINER INSULATION (450)
19 0E3257 4 SCREW HWHTF M6-1.0 X 16
20 0912970090 2 ASSY WIRE 14AWG GRN/YEL (32.25”LG)
21 0G4029B 1 INSULATION REAR C1
22 0F3890B 4 RETAINER INSULATION (820)

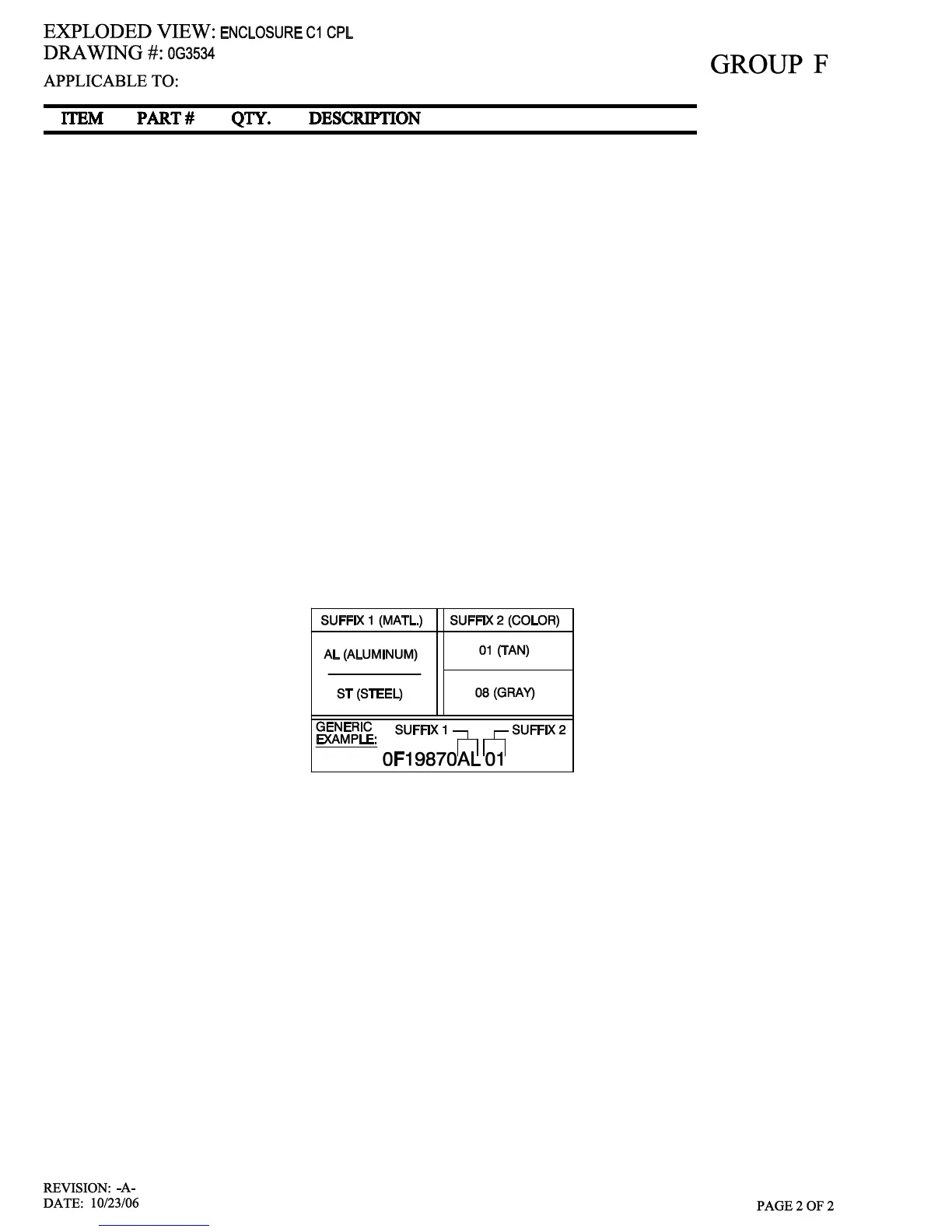

(1) REFER TO CHART BELOW FOR COLOR AND MATERIAL TYPE
(2) ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO
THE BASE FRAME MUST BE SECURED USING ITEM 10 & 19 THREAD FORMING
FASTENER AND ITEM 3 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER
THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN
ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME
MANNER.
