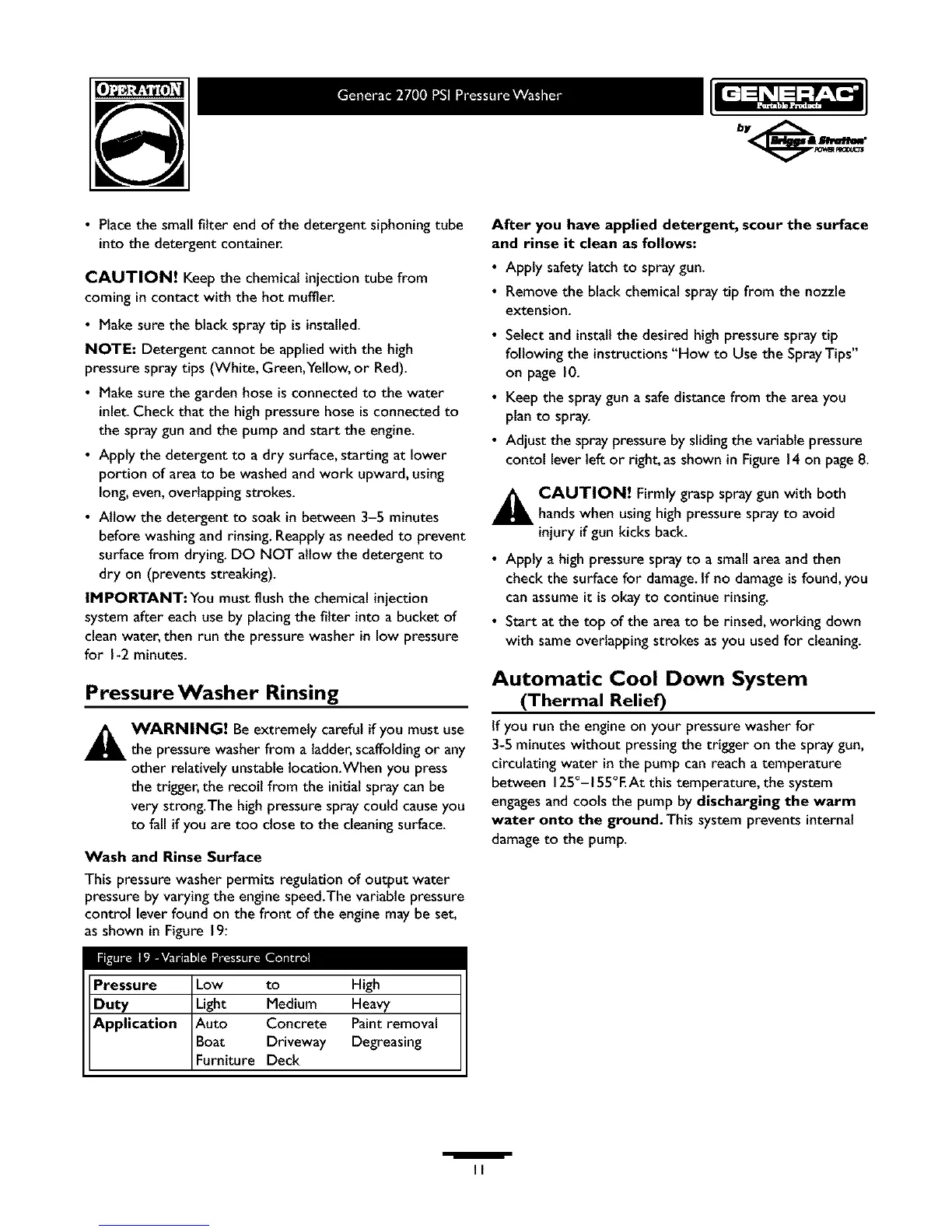

• Place the small filter end of the detergent siphoning tube
into the detergent container.
CAUTION! Keep the chemical injection tube from
coming in contact with the hot muffler.
• Make sure the black spray tip is installed.
NOTE: Detergent cannot be applied with the high
pressure spray tips (White, Green,Yellow, or Red).
• Make sure the garden hose is connected to the water
inlet. Check that the high pressure hose is connected to
the spraygun and the pump and start the engine.
• Apply the detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long,even,overlapping strokes.
• Allow the detergent to soak in between 3-5 minutes
before washing and rinsing.Reapplyasneeded to prevent
surface from drying. DO NOT allow the detergent to
dry on (prevents streaking).
IMPORTANT: You must flush the chemical injection
system after each use by placing the filter into a bucket of
clean water, then run the pressure washer in low pressure
for I-2 minutes.
Pressure Washer Rinsing
_ ARNING! Be extremely careful if you must use
the pressure washer from a ladder,scaffoldingor any
other relatively unstable location.When you press
the trigger,the recoil from the initial spray can be
very strong.The high pressure spray could causeyou
to fall if you are too close to the cleaning surface.
Wash and Rinse Surface
This pressure washer permits regulation of output water
pressure byvarying the engine speed.The variable pressure
control lever found on the front of the engine maybe set,
as shown in Figure 19:
After you have applied detergent, scour the surface
and rinse it clean as follows:
• Apply safety latch to spray gun.
• Remove the black chemical spray tip from the nozzle
extension.
• Select and installthe desired high pressure spray tip
following the instructions "How to Use the SprayTips"
on page 10.
• Keep the spray gun a safedistance from the area you
plan to spray.
• Adjust the spraypressure by sliding the variablepressure
contol lever left or right, as shown in Figure 14on page8.
_ AUTION! Firmly grasp spray gun with both
handswhen using high pressure spray to avoid
injury if gun kicks back.
• Apply a high pressure spray to a small area and then
check the surface for damage.If no damage is found, you
can assumeit is okay to continue rinsing.
• Start at the top of the area to be rinsed, working down
with same overlapping strokes as you used for cleaning.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressingthe trigger on the spray gun,
circulating water in the pump can reach a temperature
between 125°-155°EAt this temperature, the system
engagesand cools the pump by discharging the warm
water onto the ground. This system prevents internal
damageto the pump.
Pressure Low to High
Duty Light Medium Heavy
Application Auto Concrete Paint removal
Boat Driveway Degreasing
Furniture Deck
/
II
