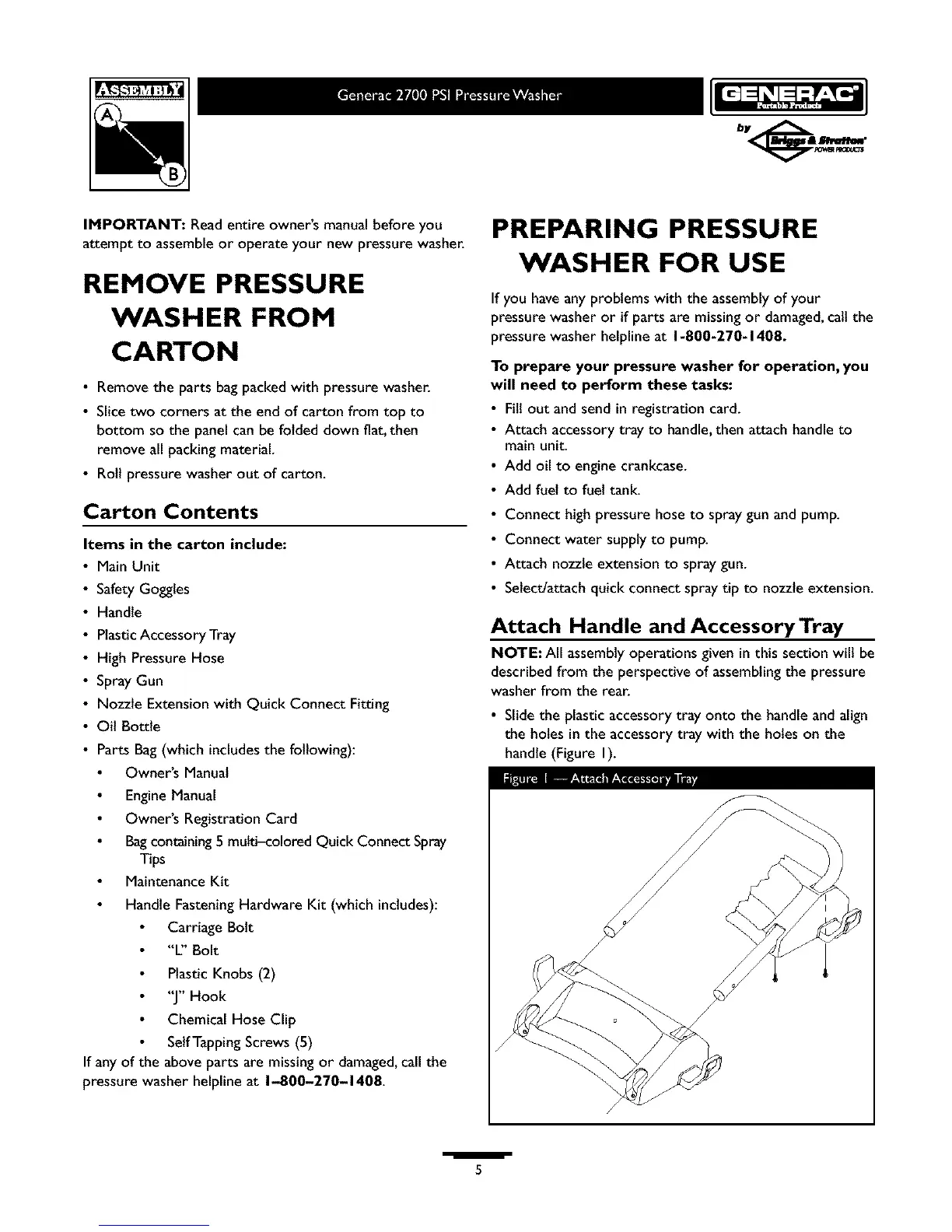

IMPORTANT: Read entire owner's manual before you
attempt to assembleor operate your new pressure washer.
REMOVE PRESSURE
WASHER FROM
CARTON
• Remove the parts bag packedwith pressure washer.
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down fiat,then
remove all packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
SafetyGoggles
Handle
PlasticAccessory Tray
High Pressure Hose
SprayGun
Nozzle Extension with Quick Connect Fitting
Oit Bottle
Parts Bag(which includesthe following):
Owner's Manual
EngineManual
Owner's Registration Card
Bagcontaining5 mult_olored Quick Connect Spray
Tips
MaintenanceKit
Handle FasteningHardware Kit (which includes):
Carriage Bolt
"L" Bolt
PlasticKnobs (2)
"J" Hook
Chemical Hose Clip
SelfTapping Screws(5)
If any of the above parts are missing or damaged,call the
pressure washer helpline at 1-800-270-1408.
PREPARING PRESSURE
WASHER FOR USE
If you haveanyproblems with the assemblyof your
pressure washer or if parts are missingor damaged,calt the
pressure washer helpline at 1-800-270-1408.
To prepare your pressure washer for operation, you
will need to perform these tasks:
• Fitl out and sendin registration card.
• Attach accessory tray to handle, then attach handle to
main unit.
Add oil to engine crankcase.
Add fuel to fuel tank.
Connect high pressure hose to spraygun and pump.
Connect water supply to pump.
Attach nozzle extension to spray gun.
Select/attach quick connect spray tip to nozzle extension.
Attach Handle and Accessory Tray
NOTE: All assemblyoperations given in this section will be
described from the perspective of assemblingthe pressure
washer from the rear.
• Slide the plastic accessory tray onto the handle and align
the holes in the accessory tray with the holes on the
handle (Figure I).
/
/
5
