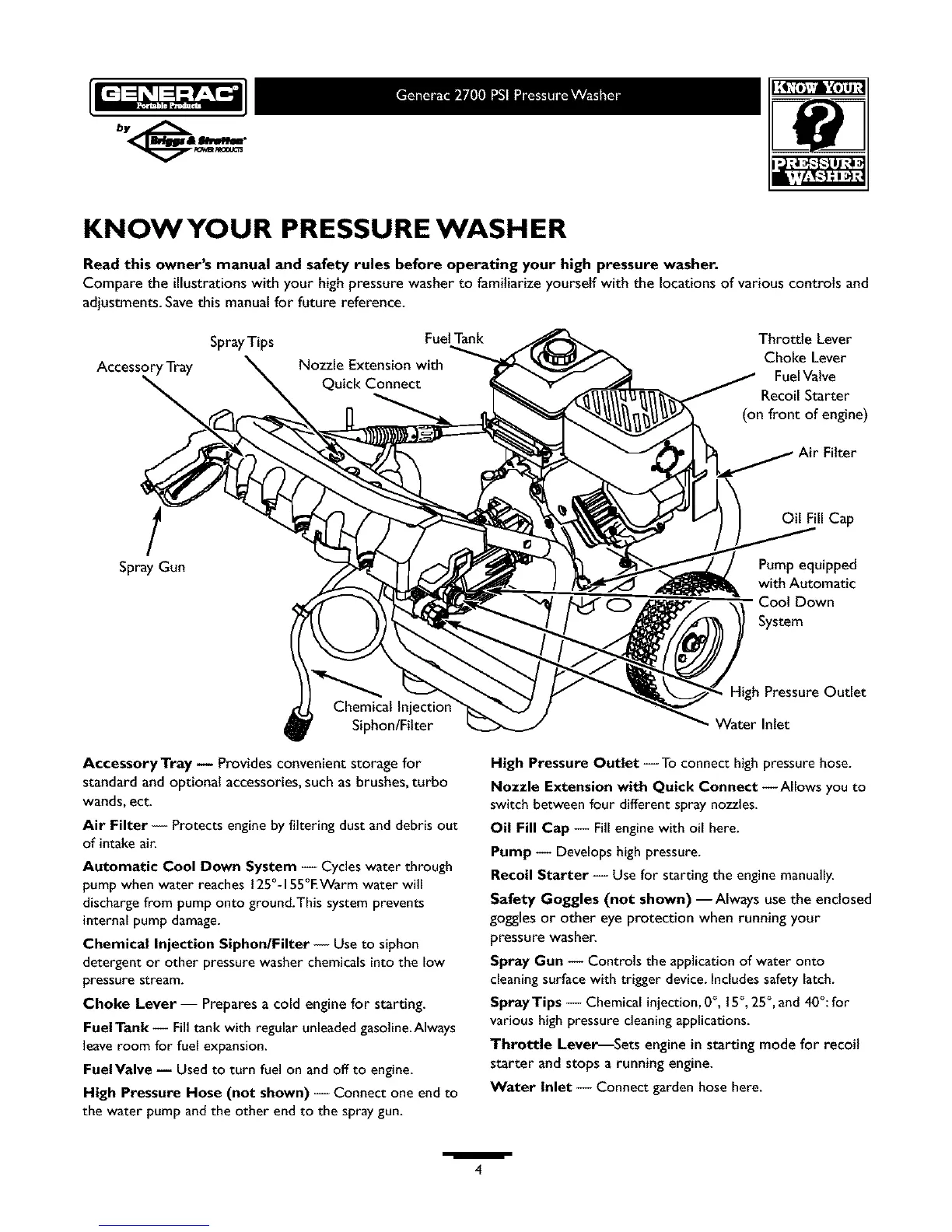

KNOWYOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Accessory Tray
SprayTips
Fuel Tank
Nozzle Extension with
Quick Connect
Throttle Lever
Choke Lever
FuelValve
Recoil Starter
(on front of engine)
Air Filter
Spray Gun
Pumpequipped
with Automatic
Cool Down
System
Chemical Injectiol
Siphon/Fitter
Accessory Tray -- Provides convenient storage for
standard and optional accessories, such as brushes, turbo
wands, ect.
Air Filter -- Protects engine by fi]tering dust and debris out
of intake air.
Automatic Cool Down System -- Cycles water through
pump when water reaches 125°- 155°F.Warm water will
discharge from pump onto ground.This system prevents
internal pump damage.
Chemical Injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Choke Lever -- Prepares a cold engine for starting.
FuelTank -- Fill tank with regular unleaded gasoline.Always
leave room for fuel expansion.
FuelValve -- Used to turn fuel on and off to engine.
High Pressure Hose (not shown) -- Connect one end to
the water pump and the other end to the spray gun.
High Pressure Outlet
- Water Inlet
High Pressure Outlet --To connect high pressure hose.
Nozzle Extension with Quick Connect --Allows you to
switch between four different spray nozzles.
Oil Fill Cap -- Fill engine with oil here.
Pump -- Develops high pressure.
Recoil Starter -- Use for starting the engine manually.
Safety Goggles (not shown) --Always use the enclosed
goggles or other eye protection when running your
pressure washer.
Spray Gun -- Controls the application of wEer onto
cleaning surface with trigger device. Includes safety latch.
Spray Tips -- Chemical injection, 0 °, {5°, 25°, and 40°: for
various high pressure cleaning applications.
Throttle Lever_Sets engine {n starting mode for recoil
starter and stops a running engine.
Water Inlet -- Connect garden hose here.
/
