4000XL Extended Life Generator

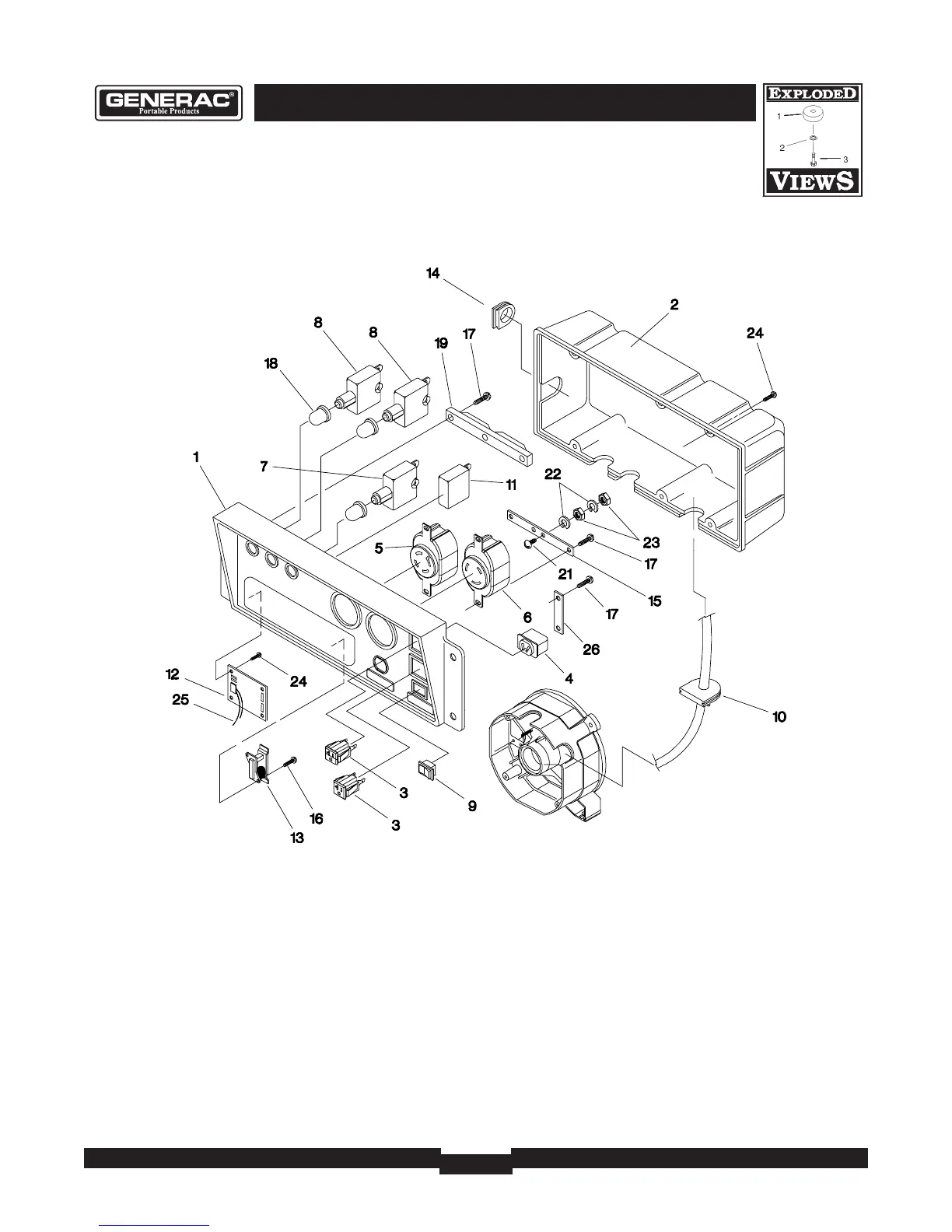

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Description
1 83976GS PANEL, Control
2 83975GS BOX, Control
3 66818GS OUTLET, 120 V AC, 15 A Duplex
4 66821GS OUTLET, 12 V DC
5 68867CGS OUTLET, 120/240 V AC, 20 A
Locking
6 68868CGS OUTLET, 120 V AC, 30 A Locking
7 75207AGS BREAKER, Circuit
8 75207GGS BREAKER, Circuit
9 82538GS SWITCH, On/Off Rocker
10 84134GS GROMMET, Rubber
11 83514GS BREAKER, Circuit
12 83970GS CONTROL BOARD, System
Item Part # Description
13 84028GS TRANSFORMER, Idle Control
14 67022GS GROMMET, Rubber
15 85584GS BAR, Bus
16 84543AGS SCREW
17 84543CGS SCREW
18 84198GS SHIELD, Circuit Breaker
19 84197GS BAR, Circuit Breaker Retaining
21 75476GS SCREW
22 22264GS WASHER, Lock
23 51715GS NUT
24 84543BGS SCREW
25 84335GS HARNESS,Wire
26 82542GS BAR, DC Outlet Retaining
