Generac Portable Products 5500EXL Extended Life Generator
18
Item Part # Qty. Description
1 A92070 1 PANEL, Control
2 23897 4 FLAT WASHER, #10 M5
3 49226 4 LOCK WASHER, M5
4 91526 4 SCREW, M5-0.8 x 12mm
5 82538 1 SWITCH, Idle Control
6 82881 4 LOCK WASHER, 7/16"
7 43181 4 SCREW, M3 - 0.5 x 10mm
8 43182 4 LOCK WASHER, M3
9 90418 1 OUTLET, 12V
10 75207A 2 CIRCUIT BREAKER, 30A
11 75207 2 CIRCUIT BREAKER, 20A
12 23365 6 WASHER, #8 Shakeproof
13 68868 1 OUTLET, 120 Volt, 30 Amp
Locking Type
Item Part # Qty. Description
14 43437 1 OUTLET, 120V/240V, 30A
Locking Type
15 68759 1 OUTLET, 120V, 20A Duplex
16 43180 6 FLAT WASHER, M4
17 22264 6 LOCK WASHER, #8 M4
18 51715 6 NUT, M4-0.7 Hex
19 64526 8 SCREW, #6-32 x 3/8"
20 83970 1 BOARD, System Control
21 64525 4 STAND-OFF, 3/4" Hex
22 87962 1 CIRCUIT BREAKER. 12V,
10A (auto)
23 84335 1 ASSEMBLY, Wire Harness
24 84134 1 GROMMET, Rubber Conn
25 B92069 1 BOX, Control Panel
26 84028 1 TRANSFORMER, Idle Control

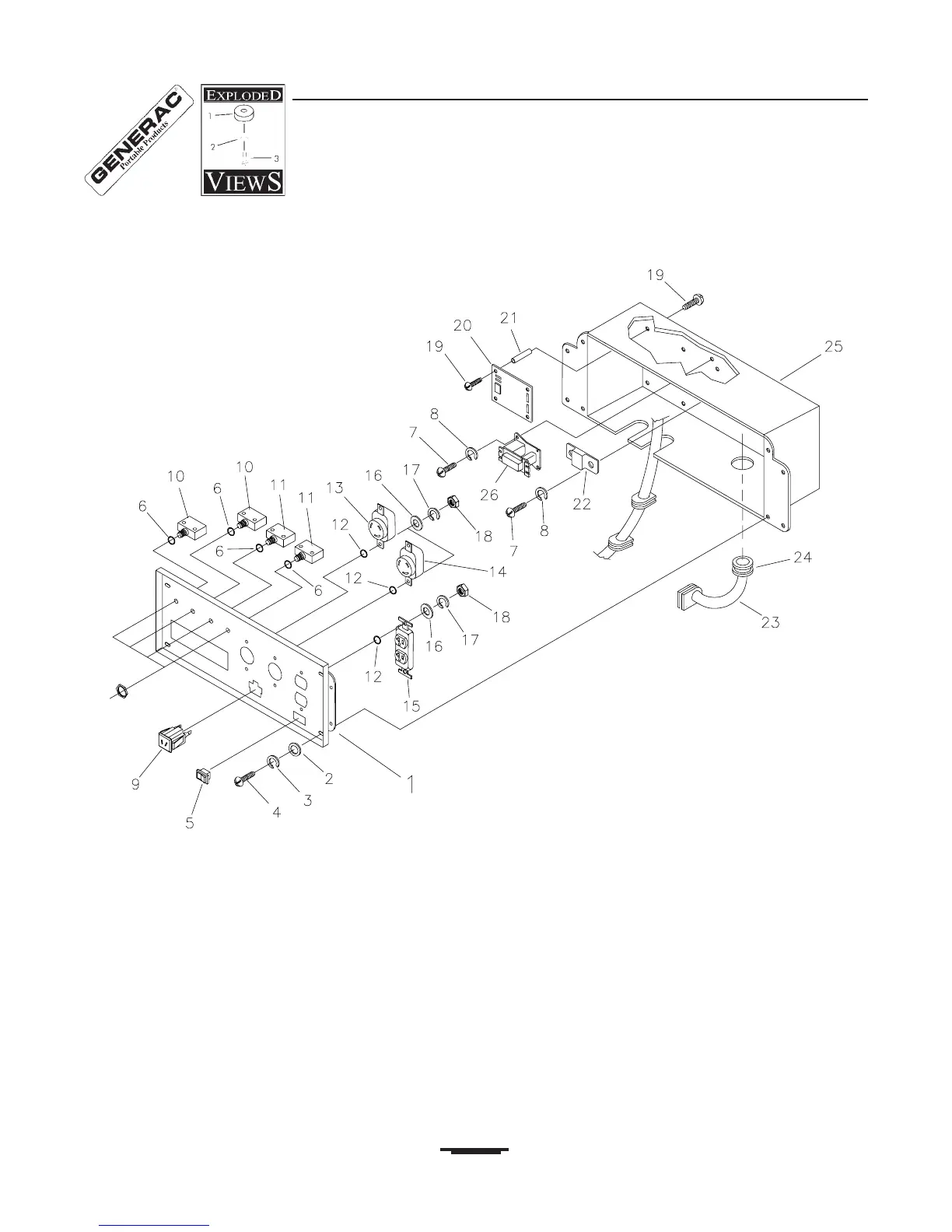

CONTROL PANEL EXPLODED VIEW & PARTS LIST
