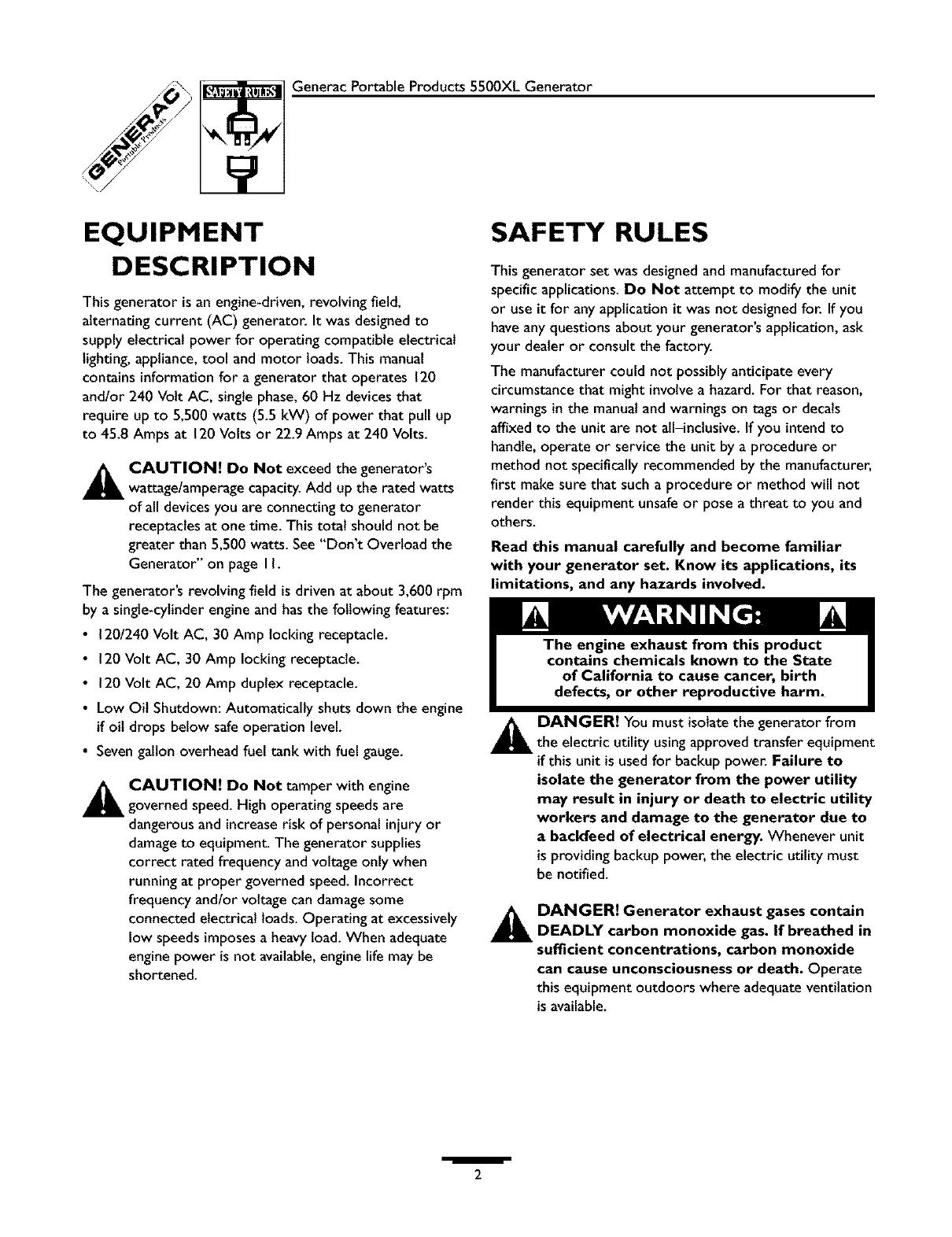

Generac Portable Products 5500XL Generator
EQUIPMENT
DESCRIPTION
This generator isan engine-driven, revolving field,
alternating current (AC) generator. It was designedto
supply electrical power for operating compatible electrical
lighting, appliance,tool and motor loads. This manual
contains informationfor a generator that operates 120
and/or 240 Volt AC, singlephase,60 Hz devicesthat
require up to 5,500 watts (5.5 kW) of power that pull up
to 45.8 Amps at 120Volts or 22.9Amps at 240 Volts.
_ CAUTION! Do Not exceed the generator's
wattage/amperage capacity.Add up the rated watts
of all devicesyou are connecting to generator
receptacles at one time. This total should not be
greater than 5,500 watts. See"Don't Overload the
Generator" on page II.
The generator's revolving field is driven at about 3,600 rpm
by a single-cylinder engine and hasthe following features:
• 120/240Volt AC, 30 Amp locking receptacle.
• 120Volt AC, 30 Amp locking receptacle.
• 120Volt AC, 20 Amp duplex receptacle.
• Low Oit Shutdown: Automatically shuts down the engine
if oit drops below safeoperation level.
• Sevengallon overhead fuel tank with fuel gauge.
_ AUTION! Do Not tamper with engine
governed speed.High operating speedsare
dangerous and increaserisk of personal injuryor
damageto equipment The generator supplies
correct rated frequency and voltage only when
running at proper governed speed. Incorrect
frequency and/or voltage candamagesome
connected electrical loads.Operating at excessively
low speedsimposesa heavyload.When adequate
engine power isnot available,engine life may be
shortened.
SAFETY RULES
This generator set was designed and manufactured for
specific applications. Do Not attempt to modify the unit
or use it for anyapplication it was not designedfor. If you
haveany questions about your generator's application, ask
your dealer or consult the factory.
The manufacturer could not possibly anticipate every
circumstance that might involvea hazard. For that reason,
warnings in the manualand warnings on tagsor decals
affixed to the unit are not all-inclusive. Ifyou intend to
handle,operate or service the unit by a procedure or
method not specificallyrecommended by the manufacturer,
first make sure that such a procedure or method will not
render this equipment unsafeor pose a threat to you and
others.
Read this manual carefully and become familiar
with your generator set. Know its applications, its
limitations, and any hazards involved.
_ DANGER! You must isolatethe generator from
the electric utility usingapproved transfer equipment
ifthis unit isusedfor backup power. Failure to
isolate the generator from the power utility
may result in injury or death to electric utility
workers and damage to the generator due to
a backfeed of electrical energy. Whenever unit
is providing backup power, the electric utility must
be notified.
_ DANGER! Generator exhaust gases contain
DEADLY carbon monoxide gas. If breathed in
sumcient concentrations, carbon monoxide
can cause unconsciousness or death. Operate
this equipment outdoors where adequate ventilation
is available.
/
