GeneracPortableProducts5500XLGenerator

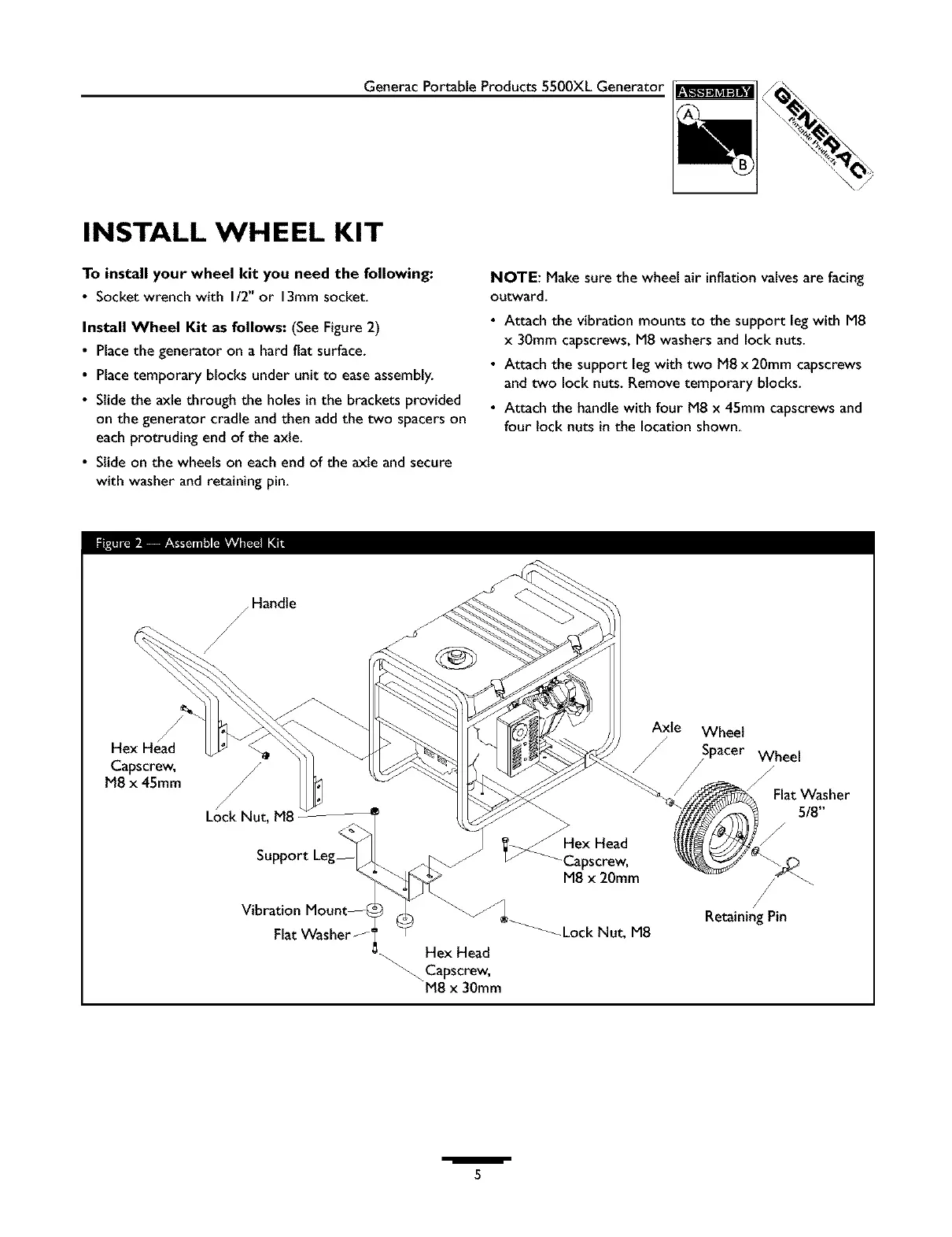

INSTALL WHEEL KIT
To install your wheel kit you need the following:
• Socket wrench with 1/2" or 13mm socket.
Install Wheel Kit as follows: (SeeFigure 2)
• Placethe generator on a hard flat surface.
• Placetemporary blocks under unit to easeassembly.
• Slidethe axle through the holes in the brackets provided
on the generator cradle and then acidthe two spacers on
eachprotruding end of the axle.
• Slide on the wheels on each end of the axle and secure
with washer and retaining pin.
NOTE: Make sure the wheel air inflation valves are facing
outward.
• Attach the vibration mounts to the support leg with M8
x 30mm capscrews,M8 washers and lock nuts.
• Attach the support leg with two M8 x 20ram capscrews
and two lock nuts. Removetemporary blocks.
• Attach the handle with four M8 x 45mm capscrews and
four lock nuts in the location shown.
Handle
Capscrew,
M8 x 45mm
/
Lock Nut, M8
Support
Flat WasherJ
_Hex Head
J _/ _-Capscrew,
M8 x 20mm
_LockNut, M8
_ Hex Head
_Capscrew,
M8 x 30mm
Axle Wheel
jSpacer Wheel
/
/
Retaining Pin
/
5
