Generac Power Systems 9592-3

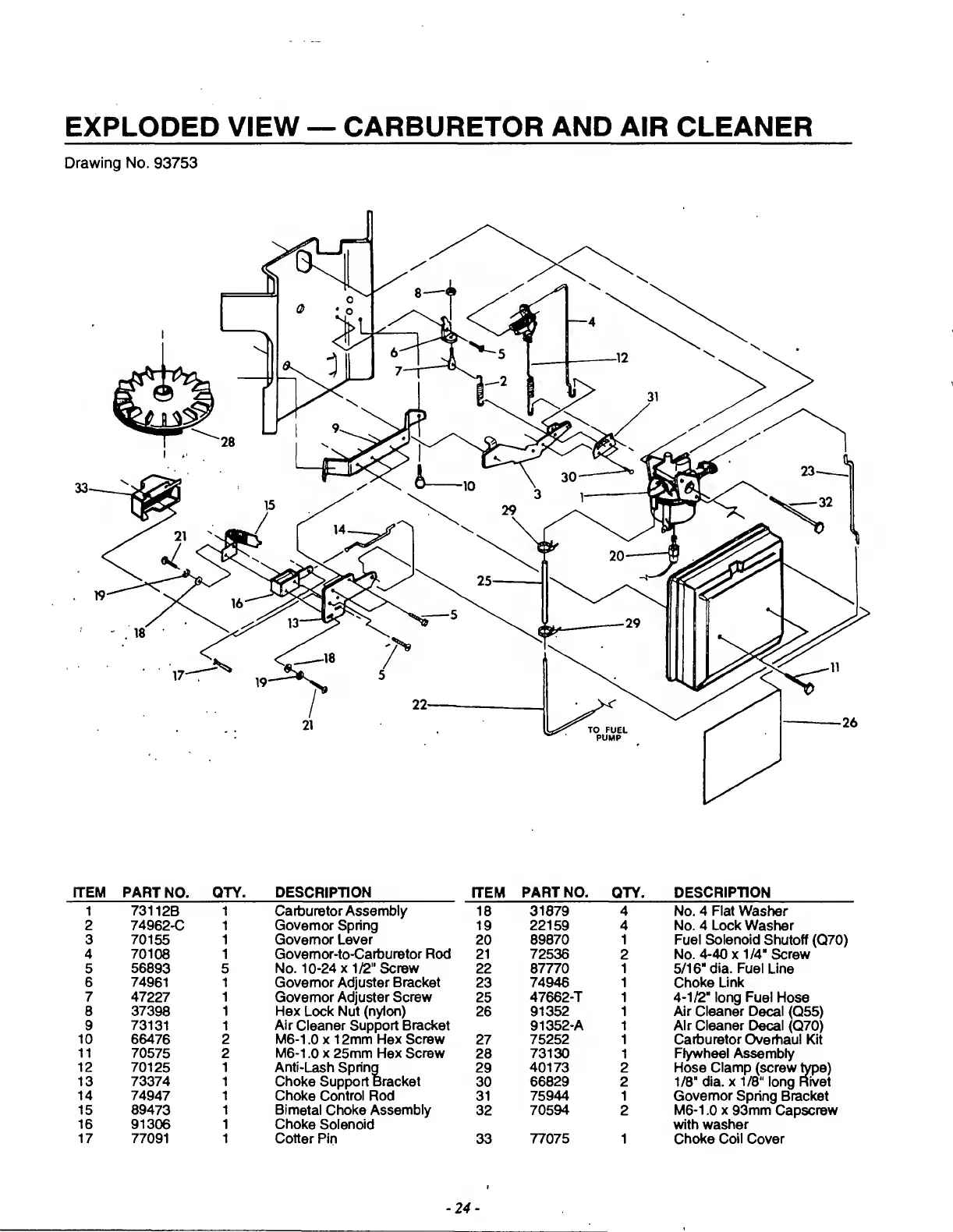

EXPLODED VIEW — CARBURETOR AND AIR CLEANER
ITEM PART NO. QTY. DESCRIPTION _ ITEM PART NO. QTY. DESCRIPTION _
1 73112B 1 Carburetor Assembly 18 31879 4 No. 4 Flat Washer
2 74962-C 1 Governor Spring 19 22159 4 No. 4 Lock Washer
3 70155 1 Governor Lever 20 89870 1 Fuel Solenoid Shutoff (Q70)
4 70108 1 Govemor-to-Carburetor Rod 21 72536 2 No. 4-40 x 1/4“ Screw
5 56893 5 No. 10-24 x 1/2" Screw 22 87770 1 5/16“ dia. Fuel Line
6 74961 1 Governor Adjuster Bracket 23 74946 1 Choke Link
7 47227 1 Governor Adjuster Screw 25 47662-T 1 4-1/2“ long Fuel Hose
8 37398 1 Hex Lock Nut (nylon) 26 91352 1 Air Cleaner Decal (Q55)
9 73131 1 Air Cleaner Support Bracket 91352-A 1 Air Cleaner Decal (Q70)
10 66476 2 M6-1.0 x 12mm Hex Screw 27 75252 1 Carburetor Overhaul Kit
11 70575 2 M6-1.0 x 25mm Hex Screw 28 73130 1 Flywheel Assembly
12 70125 1 Anti-Lash Spring 29 40173 2 Hose Clamp (screw type)
13 73374 1 Choke Support Bracket 30 66829 2 1/8" dia. x 1/8" long Rivet
14 74947 1 Choke Control Rod 31 75944 1 Governor Spring Bracket
15 89473 1 Bimetal Choke Assembly 32 70594 2 M6-1.0 x 93mm Capscrew
16 91306 1 Choke Solenoid with washer
17 77091 1 Cotter Pin 33 77075 1 Choke Coil Cover
- 2 4 -
