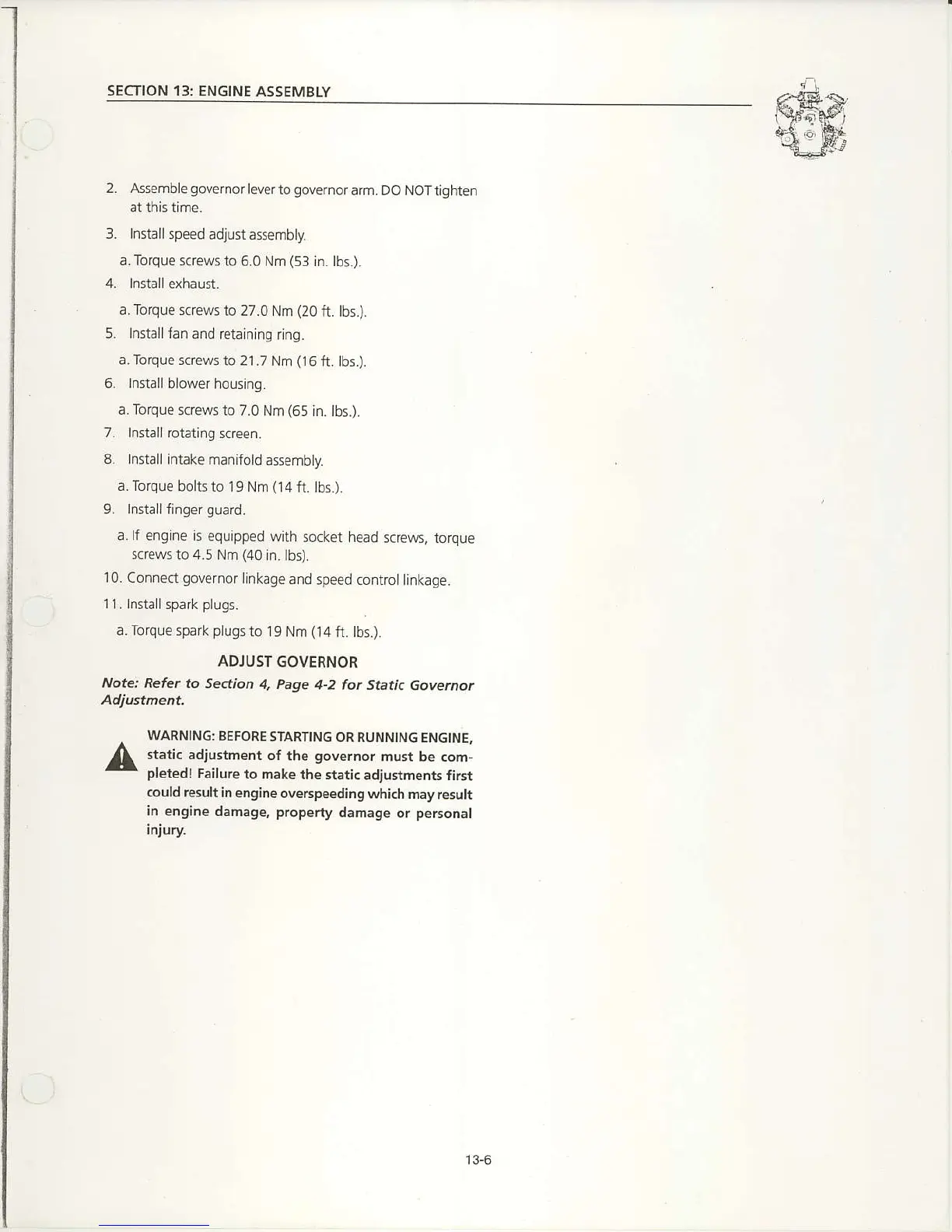

SECTION l3: ENGINE
ASSEMBLY
2. Assemble
governor
leverto
governor
arm. DO NOTtighten
at this time.
3. lnnall
speed adjust assembly_
a. Torque
screws to 6.0
Nm
(53
in. lbs.).
4.
lnstallexhaust.
a.Torque screws
to 27.0 Nm
(20ft.
lbs.).
5. Installfan
and retaining
ring.
a. Torque screws
to 21.7 Nm
(16
ft. lbs.).
6. lnstall
blower housing.
a.Torque
screws to 7.0
Nm
(65
in. lbs.).
7. Install
rotating
Screen.
8. Install intake
manifold assembly.
a- Toque
bolts to 19
Nr.
(14
ft. lbs.)
9. Installfinger
guard.
a. lf engine is
equipped with
socket head
scrcws, torque
screws to 4.5
Nm
(40
in. lbs).
10. Connect
governor
llnkage
and
speed contrcl tinkage.
I1.
Install spark
plugs_
a.Torque spark
plugsto
19
Nm
(14
ft. tbs.).
ADJUST
6OVERNOR
Note: Refer
to Sedion
4, Page
4-2 fot Stati.
covehor
Adjustment
WARNING: BETORE
STARTING
OR RUNNING
ENGtNE,
static adjustment
of the
governor
must be com-
pletedl
Failure
to make
the natic
adjunments first
could
result in engine
overspeeding
whid may
reruh
in engine damage, property
damage
or
personal
injury
