General Information
Owner’s Manual for MLT6SM/6SK Light Tower 21

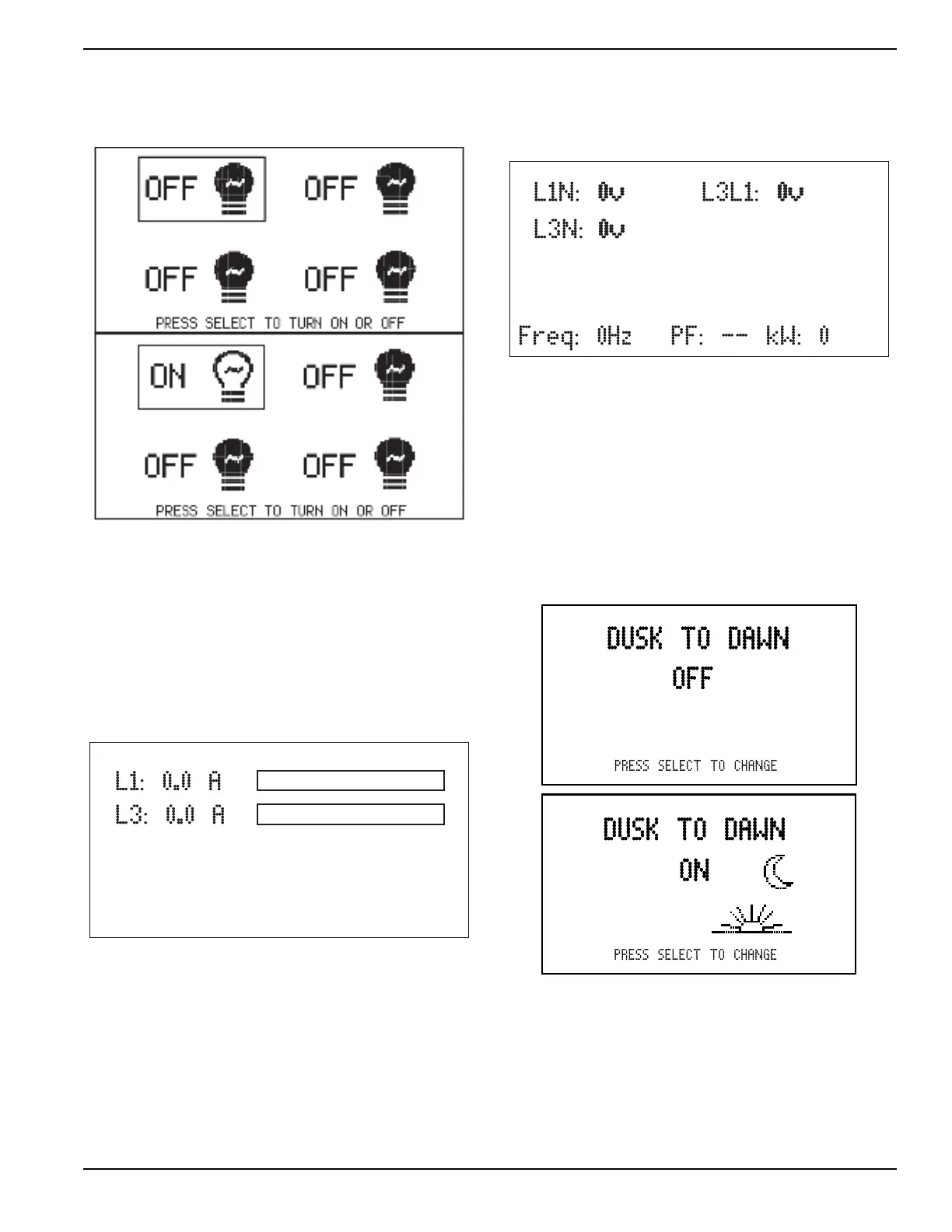

Lights Screen
See Figure 2-18. The Lights screen allows the operator
to turn the lights on and off. Refer to
Light Operation
(Key Switch Models) for more information.
Figure 2-18. Lights Screen
Line Amperage Screen
See Figure 2-19. The Line Amperage screen displays
the AC output amperage produced by the generator in
amps (A). The load balance for each line (L1 and L3) is
displayed in both numerical and graphical form. It is
important to maintain a balanced load distribution
between lines for optimum generator performance.
Figure 2-19. Line Amperage Screen
Generator Screen
See Figure 2-20. The Generator screen displays the
average line voltage, frequency (in Hertz), and power
factor for the generator while in operation.
Figure 2-20. Generator Screen
Dusk to Dawn Screen
NOTE: This feature will only work in AUTO mode.
See
Figure 2-21. The Dusk to Dawn screen enables or
disables the “dusk to dawn” function. This function uses a
photo sensor to detect the surrounding light level,
automatically starting the engine and turning the lights on
at dusk. The engine will run and the lights will remain
illuminated until dawn.
Figure 2-21. Dusk to Dawn Screen
002327
002980
002981
002328
