Generac Power Systems MAGNUM MLT6SM - AC Wiring Diagram-MLT6 SK and MLT6 SM Power Zone (if Equipped)

68 pages

To Next Page

To Previous Page

Wiring Diagrams

Owner’s Manual for MLT6SM/6SK Light Tower 49

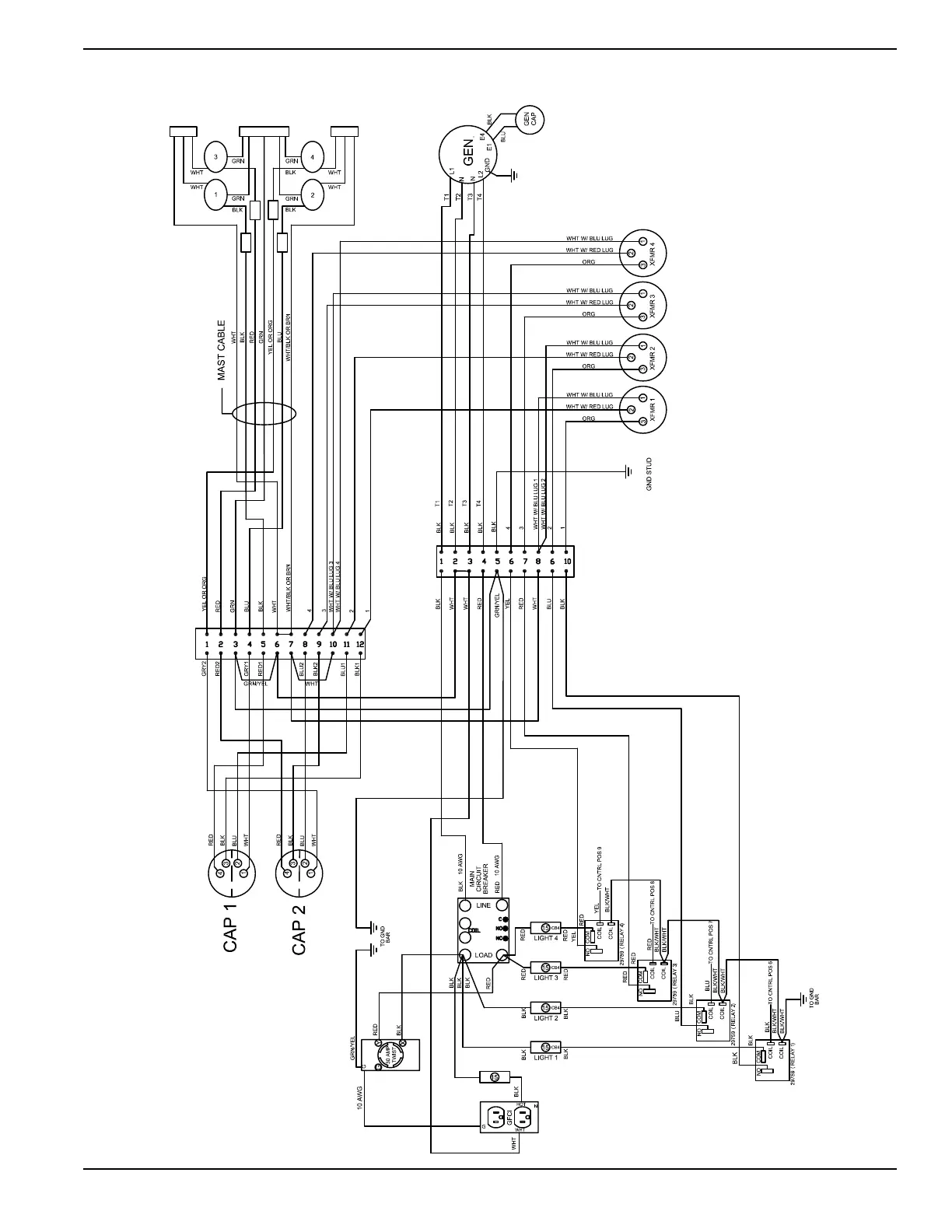

AC Wiring Diagram—MLT6SK and MLT6SM Power Zone (If Equipped)

90616_B_03.09.18
