Generac Power Systems NP-50G Series User Manual

Generac NP-50G Recreational Vehicle Generator
Drawing No. 92197

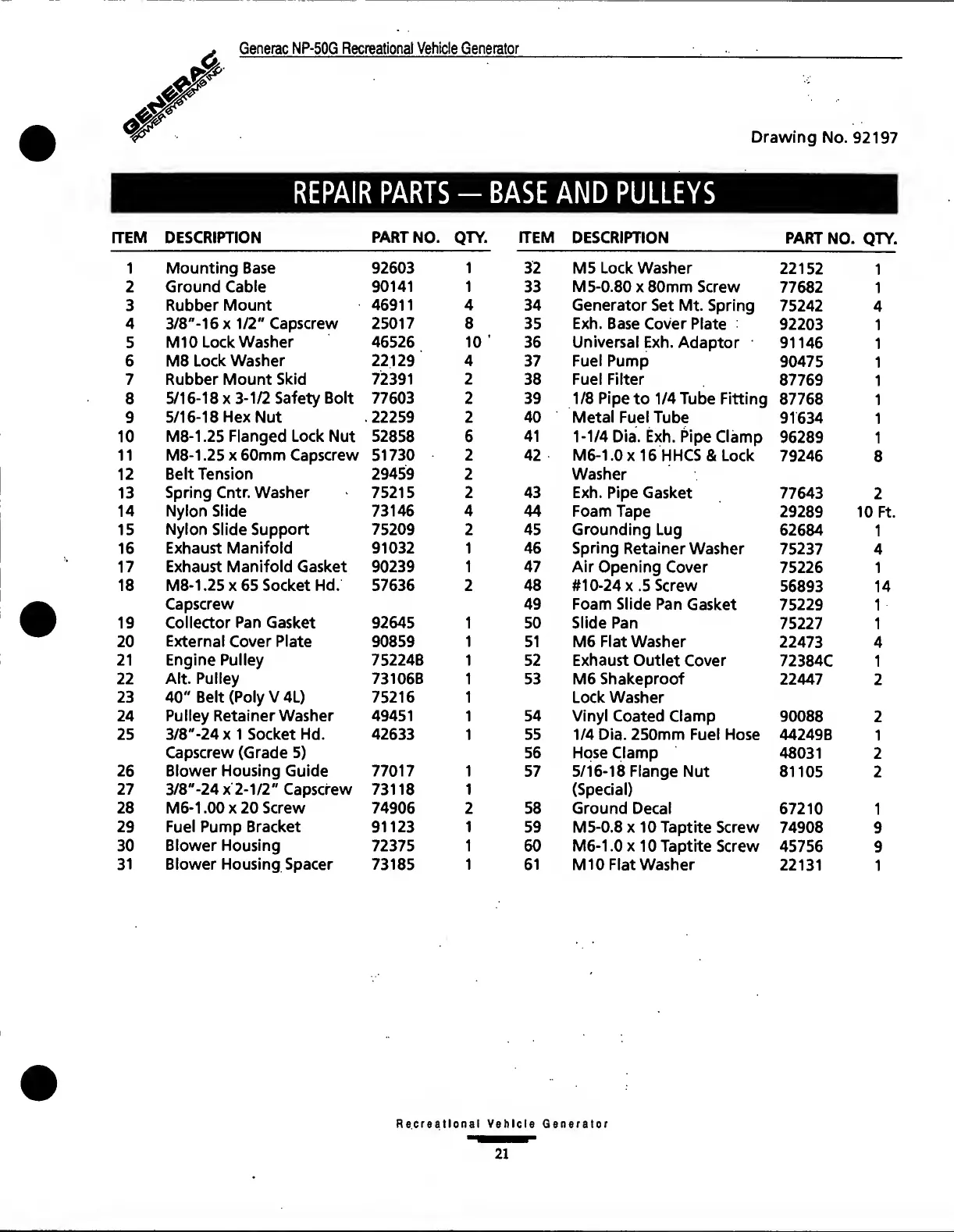

REPAIR PARTS
—
BASE AND PULLEYS
1
ITEM DESCRIPTION
PART NO.
QTY. ITEM DESCRIPTION
PART NO.
QTY.
1 Mounting Base 92603
1
32 M5 Lock Washer
22152
1
2 Ground Cable
90141 1
33 M5-0.80 x 80mm Screw
77682
1
3
Rubber Mount 46911
4
34
Generator Set Mt. Spring
75242
4
4 3/8"-16x 1/2" Capscrew
25017
8
35 Exh. Base Cover Plate
92203 1
5
M10 Lock Washer
46526 10 36 Universal Exh. Adaptor
91146
1
6
M8 Lock Washer
22129
4
37 Fuel Pump
90475
1
7 Rubber Mount Skid 72391
2
38 Fuel Filter
87769
1
8
5/16-18x3-1/2 Safety Bolt 77603 2 39
1/8 Pipe to 1/4 Tube Fitting
87768
1
9
5/16-18 Hex Nut . 22259 2 40
Metal Fuel Tube
91634
1
10 M8-1.25 Flanged Lock Nut 52858 6
41
1-1/4 Dia. Exh. Pipe Clamp
96289
1
11 M8-1.25 x 60mm Capscrew 51730 2
42 M6-1.0x 16 HHCS & Lock
79246
8
12 Belt Tension
29459
2 Washer
13
Spring Cntr. Washer
75215 2 43 Exh. Pipe Gasket
77643
2
14 Nylon Slide 73146 4 44 Foam Tape
29289 10 Ft.
15
Nylon Slide Support 75209 2
45 Grounding Lug
62684
1
16
Exhaust Manifold 91032 1
46 Spring Retainer Washer
75237
4
17
Exhaust Manifold Gasket
90239
1 47
Air Opening Cover
75226
1
18 M8-1.25x65 Socket Hd. 57636 2 48 #10-24 x .5 Screw
56893 14
Capscrew
49 Foam Slide Pan Gasket
75229
1
19 Collector Pan Gasket
92645 1 50 Slide Pan
75227
1
20 External Cover Plate
90859
1
51
M6 Flat Washer
22473
4
21 Engine Pulley
75224B
1
52 Exhaust Outlet Cover
72384C 1
22
Alt. Pulley 73106B
1 53 M6 Shakeproof
22447
2
23
40" Belt (Poly V 4L)
75216 1
Lock Washer
24 Pulley Retainer Washer
49451 1
54 Vinyl Coated Clamp
90088
2
25
3/8"-24 x 1 Socket Hd.
42633 1 55
1/4 Dia. 250mm Fuel Hose 44249B
1
Capscrew (Grade 5)
56 Hose Clamp
48031 2
26
Blower Housing Guide 77017 1
57 5/16-18 Flange Nut
81105 2
27 3/8"-24 x 2-1/2" Capscrew
73118
1
(Special)
28 M6-1.00 x 20 Screw
74906 2 58 Ground Decal
67210 1
29
Fuel Pump Bracket
91123
1
59 M5-0.8 x 10 Taptite Screw
74908
9
30
Blower Housing
72375 1
60 M6-1.0 x 10 Taptite Screw
45756
9
31
Blower Housing Spacer
73185
1
61 M10 Flat Washer
22131 1
