Generac Power Systems NP-50G Series

Generac NP-50G Recreational Vehicle Generator
Drawing No. 94106

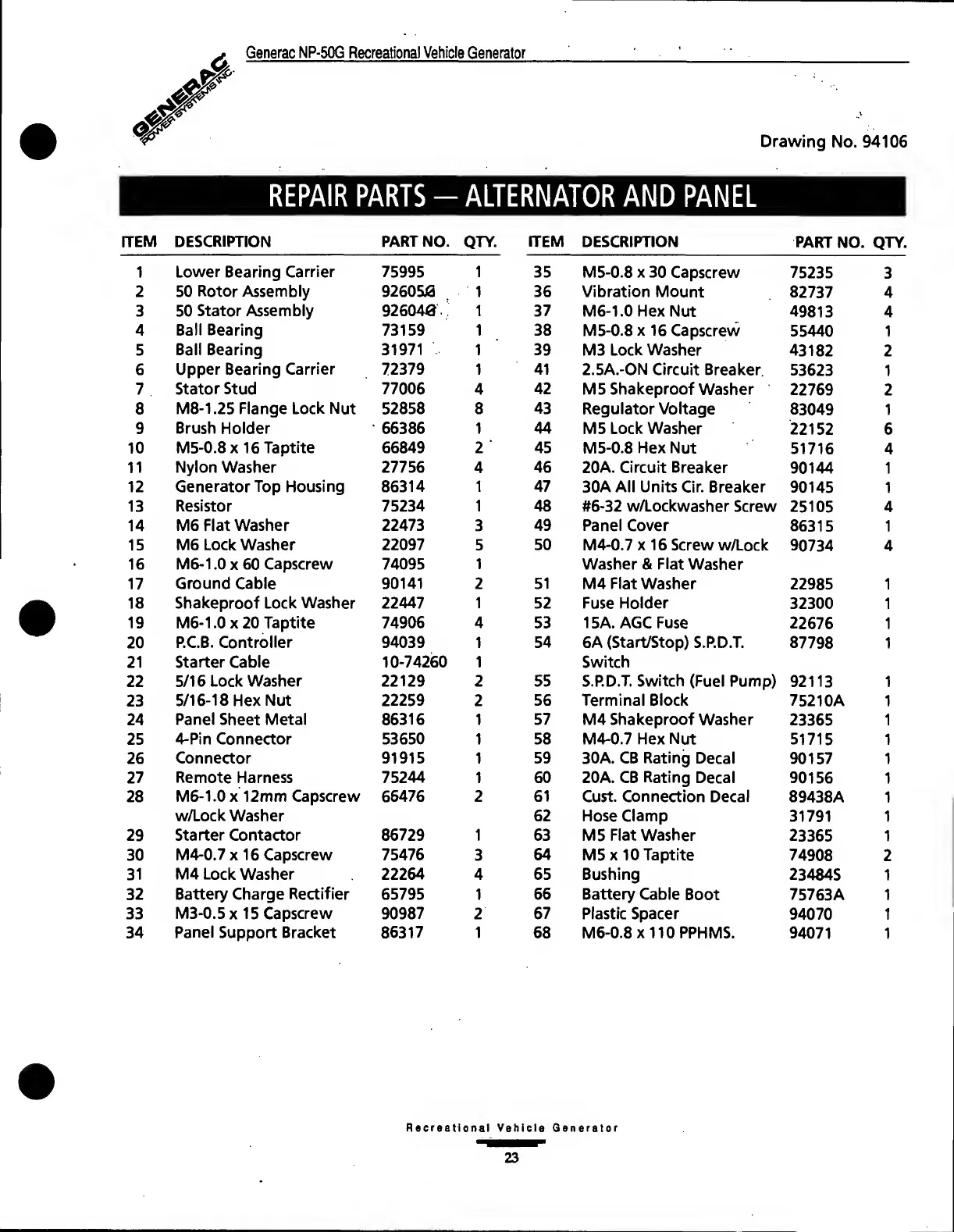

REPAIR PARTS - ALTERNATOR AND PANEL
ITEM DESCRIPTION
PART NO.
QTY.
ITEM DESCRIPTION
PART NO. QTY.
1
Lower Bearing Carrier
75995 1 35
M5-0.8 x 30 Capscrew
75235
3
2 50 Rotor Assembly 926050 1 36 Vibration Mount
82737 4
3
50 Stator Assembly 926040 1 37
M6-1.0 Hex Nut
49813 4
4 Ball Bearing 73159 1 38
M5-0.8 x 16 Capscrew
55440
1
5
Ball Bearing 31971 1
39 M3 Lock Washer
43182 2
6
Upper Bearing Carrier 72379 1 41
2.5A.-ON Circuit Breaker
53623 1
7
Stator Stud
77006 4
42
M5 Shakeproof Washer
22769 2
8
M8-1.25 Flange Lock Nut 52858 8 43 Regulator Voltage
83049
1
9
Brush Holder
66386
1 44
M5 Lock Washer
22152 6
10
M5-0.8 x 16 Taptite 66849 2 45
M5-0.8 Hex Nut
51716 4
11
Nylon Washer 27756
4
46
20A. Circuit Breaker
90144
1
12 Generator Top Housing
86314 1 47
30A All Units Cir. Breaker
90145 1
13
Resistor 75234
1 48 #6-32 w/Lockwasher Screw
25105 4
14
M6 Flat Washer 22473
3
49
Panel Cover
86315 1
15
M6 Lock Washer 22097
5
50
M4-0.7 x 16 Screw w/Lock
90734 4
16
M6-1.0 x 60 Capscrew 74095 1
Washer & Flat Washer
17
Ground Cable
90141
2 51 M4 Flat Washer
22985
1
18 Shakeproof Lock Washer
22447
1
52 Fuse Holder
32300
1
19 M6-1.0 x 20 Taptite
74906 4
53 15A. AGC Fuse
22676
1
20
P.C.B. Controller
94039 1
54 6A (Start/Stop) S.P.D.T.
87798 1
21
Starter Cable
10-74260 1
Switch
22
5/16 Lock Washer 22129 2 55 S.P.D.T. Switch (Fuel Pump)
92113 1
23
5/16-18 Hex Nut
22259
2
56 Terminal Block
75210A 1
24
Panel Sheet Metal 86316 1 57 M4 Shakeproof Washer
23365 1
25
4-Pin Connector 53650 1 58 M4-0.7 Hex Nut
51715
1
26
Connector
91915 1 59 30A. CB Rating Decal
90157 1
27 Remote Harness
75244
1 60 20A. CB Rating Decal
90156 1
28
M6-1.0 x 12mm Capscrew 66476 2 61
Cust. Connection Decal
89438A 1
w/Lock Washer
62 Hose Clamp
31791
1
29
Starter Contactor
86729 1 63 M5 Flat Washer
23365
1
30
M4-0.7 x 16 Capscrew 75476
3
64
M5 x 10 Taptite
74908 2
31
M4 Lock Washer 22264
4 65 Bushing
23484S
1
32 Battery Charge Rectifier 65795 1 66 Battery Cable Boot
75763A 1
33
M3-0.5 x 15 Capscrew 90987
2
67
Plastic Spacer
94070
1
34 Panel Support Bracket
86317
1
68 M6-0.8 x 110 PPHMS.
94071 1
