Generac Power Systems NP-50G Series

Generac NP-50G Recreational Vehicle Generator
Drawing No. A8058

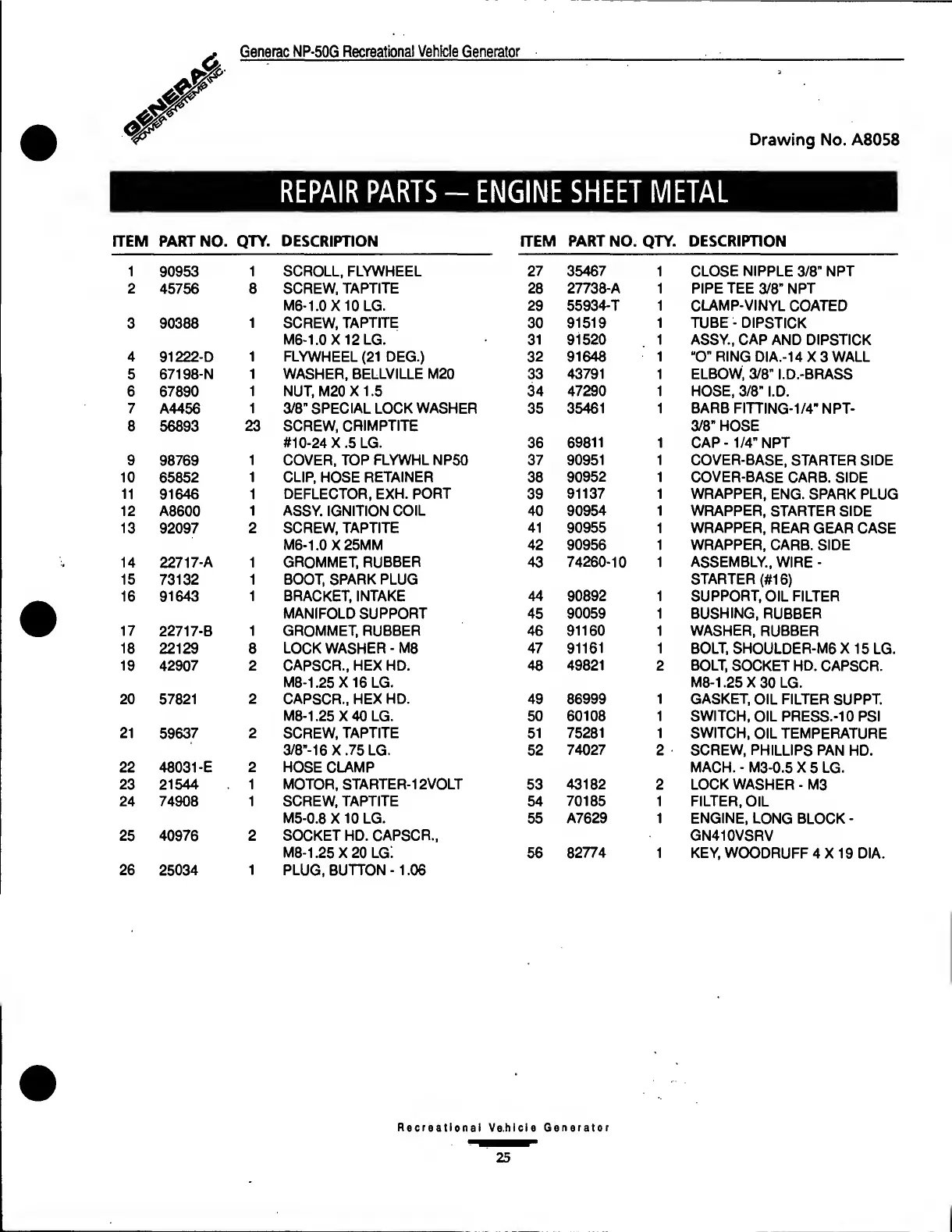

REPAIR PARTS - ENGINE SHEET METAL
ITEM PART NO.
QTY.
DESCRIPTION
HEM PART NO.
QTY. DESCRIPTION
1
90953
1 SCROLL, FLYWHEEL
27 35467
1
CLOSE NIPPLE 3/8" NPT
2
45756
8
SCREW, TAPTITE
28
27738-A 1
PIPE TEE 3/8" NPT
M6-1.0 X 10 LG.
29
55934-T
1
CLAMP-VINYL COATED
3 90388
1
SCREW, TAPTITE 30 91519
1
TUBE - DIPSTICK
M6-1.0 X 12 LG. 31
91520 1
ASSY., CAP AND DIPSTICK
4
91222-D
1
FLYWHEEL (21 DEG.)
32
91648 "O" RING DIA.-14 X 3 WALL
5
67198-N
1
WASHER, BELLVILLE M20 33 43791 1
ELBOW, 3/8" I.D.-BRASS
6
67890
1
NUT, M20 X 1.5
34 47290 1
HOSE, 3/8" I.D.
7
A4456
1
3/8” SPECIAL LOCK WASHER 35
35461 1
BARB FITTING-1/4" NPT-
8
56893
23 SCREW, CRIMPTITE 3/8” HOSE
#10-24 X.5 LG. 36 69811
1 CAP -1/4” NPT
9
98769
1
COVER, TOP FLYWHL NP50
37
90951
1
COVER-BASE, STARTER SIDE
10 65852
1 CLIP, HOSE RETAINER
38
90952
1
COVER-BASE CARB. SIDE
11
91646
1 DEFLECTOR, EXH. PORT
39
91137
1
WRAPPER, ENG. SPARK PLUG
12
A8600
1 ASSY. IGNITION COIL
40
90954 1
WRAPPER, STARTER SIDE
13
92097
2 SCREW. TAPTITE
41
90955 1 WRAPPER, REAR GEAR CASE
M6-1.0X25MM 42 90956 1
WRAPPER, CARB. SIDE
14
22717-A 1
GROMMET, RUBBER
43 74260-10
1 ASSEMBLY., WIRE -
15
73132
1
BOOT, SPARK PLUG STARTER (#16)
16 91643
1 BRACKET, INTAKE
44 90892
1 SUPPORT, OIL FILTER
MANIFOLD SUPPORT
45
90059 1
BUSHING, RUBBER
17
22717-B 1
GROMMET, RUBBER
46
91160
1 WASHER, RUBBER
18 22129 8 LOCK WASHER - M8 47 91161 1
BOLT, SHOULDER-M6 X 15 LG.
19 42907 2 CAPSCR., HEX HD.
48
49821
2 BOLT, SOCKET HD. CAPSCR.
M8-1.25X16 LG.
M8-1.25X30 LG.
20
57821
2
CAPSCR., HEX HD.
49 86999 1
GASKET, OIL FILTER SUPPT.
M8-1.25 X 40 LG.
50
60108
1
SWITCH, OIL PRESS.-10 PSI
21
59637
2 SCREW, TAPTITE
51
75281 1
SWITCH, OIL TEMPERATURE
3/8”-16 X .75 LG.
52
74027
2
SCREW, PHILLIPS PAN HD.
22 48031-E
2
HOSE CLAMP
MACH. - M3-0.5 X 5 LG.
23
21544 1 MOTOR, STARTER-12VOLT
53
43182
2 LOCK WASHER - M3
24 74908 1 SCREW, TAPTITE 54 70185 1 FILTER, OIL
M5-0.8 X 10 LG. 55
A7629 1
ENGINE, LONG BLOCK -
25 40976
2 SOCKET HD. CAPSCR.,
GN410VSRV
M8-1.25 X 20LG: 56
82774
1
KEY, WOODRUFF 4X19 DIA.
26
25034 1
PLUG, BUTTON -1.06
