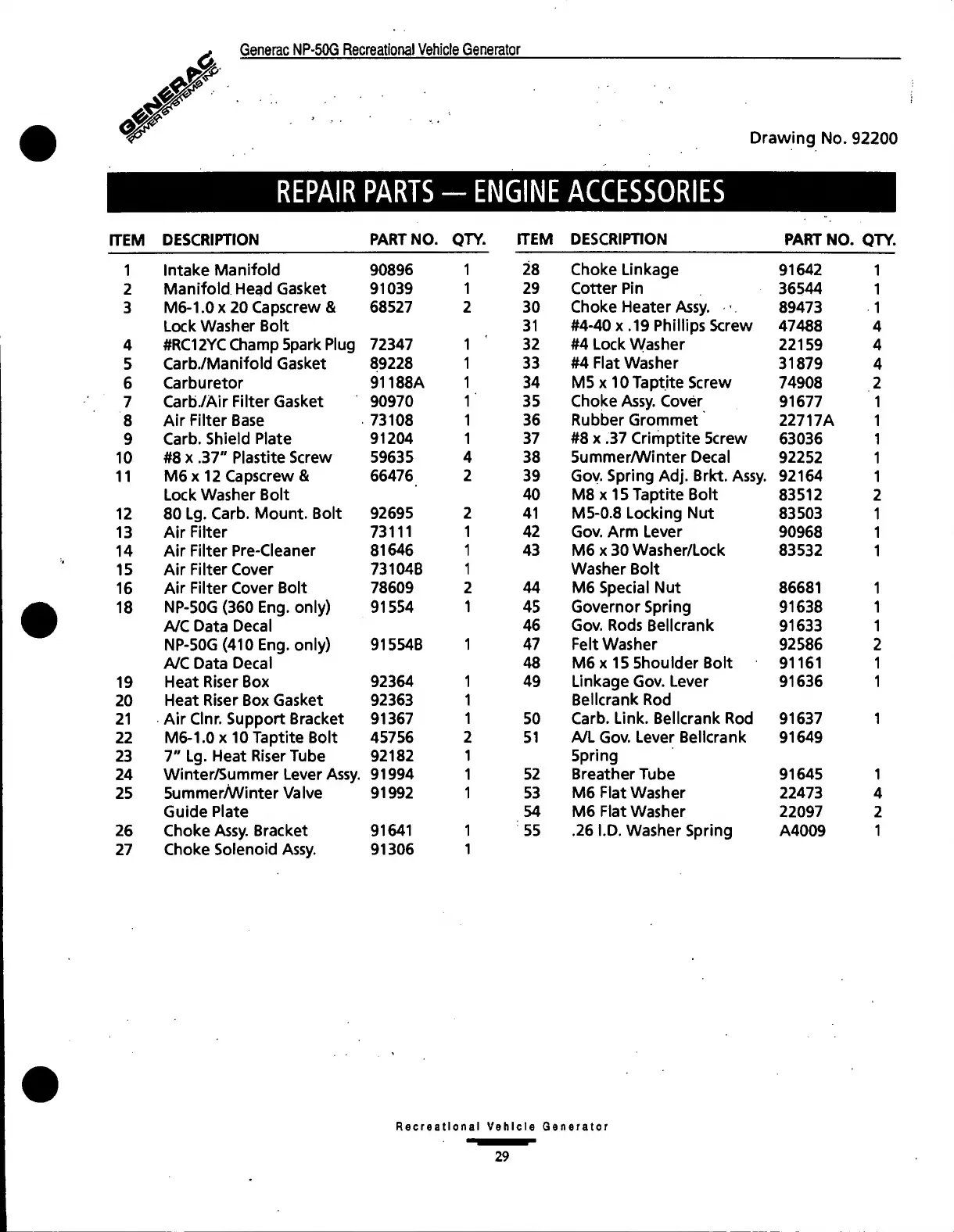

Generac Power Systems NP-50G Series

Drawing No. 92200
REPAIR PARTS - ENGINE ACCESSORIES
ITEM
DESCRIPTION PART NO.
QTY.
ITEM DESCRIPTION
PART NO.
QTY.
1
Intake Manifold
90896 1 28 Choke Linkage
91642 1
2
Manifold Head Gasket
91039
1 29 Cotter Pin
36544
1
3
M6-1.0 x 20 Capscrew &
68527 2 30 Choke Heater Assy.
89473 1
Lock Washer Bolt 31 #4-40 x .19 Phillips Screw
47488 4
4
#RC12YC Champ Spark Plug 72347
1 ' 32 #4 Lock Washer
22159 4
5
Carb./Manifold Gasket
89228 1 33
#4 Flat Washer
31879
4
6
Carburetor
91188A 1 34 M5 x 10 Taptite Screw
74908
2
7
Carb./Air Filter Gasket
90970 1 35 Choke Assy. Cover
91677 1
8
Air Filter Base 73108
1 36
Rubber Grommet 22717A 1
9
Carb. Shield Plate
91204 1 37 #8 x .37 Crimptite Screw
63036 1
10
#8 x .37" Plastite Screw
59635 4 38 Summer/Winter Decal
92252 1
11
M6 x 12 Capscrew & 66476
2
39 Gov. Spring Adj. Brkt. Assy. 92164 1
Lock Washer Bolt 40 M8 x 15 Taptite Bolt 83512
2
12
80 Lg. Carb. Mount. Bolt
92695 2 41 M5-0.8 Locking Nut
83503 1
13
Air Filter 73111
1 42 Gov. Arm Lever
90968
1
14
Air Filter Pre-Cleaner 81646
1 43
M6 x 30 Washer/Lock
83532 1
15
Air Filter Cover 73104B 1
Washer Bolt
16
Air Filter Cover Bolt 78609 2
44
M6 Special Nut 86681
1
18
NP-50G (360 Eng. only) 91554
1
45
Governor Spring
91638
1
A/C Data Decal
46
Gov. Rods Bellcrank
91633 1
NP-50G (410 Eng. only)
91554B
1 47
Felt Washer
92586
2
A/C Data Decal
48
M6 x 15 Shoulder Bolt 91161
1
19
Heat Riser Box
92364 1 49
Linkage Gov. Lever
91636 1
20
Heat Riser Box Gasket 92363 1
Bellcrank Rod
21
Air Clnr. Support Bracket
91367
1
50
Carb. Link. Bellcrank Rod 91637 1
22
M6-1.0 x 10 Taptite Bolt 45756 2 51
A/L Gov. Lever Bellcrank
91649
23
7" Lg. Heat Riser Tube 92182
1 Spring
24
Winter/Summer Lever Assy.
91994
1 52
Breather Tube
91645 1
25
Summer/Winter Valve
91992 1 53 M6 Flat Washer 22473 4
Guide Plate
54 M6 Flat Washer 22097
2
26
Choke Assy. Bracket 91641 1 55 .26 I.D. Washer Spring A4009 1
27
Choke Solenoid Assy. 91306
1
