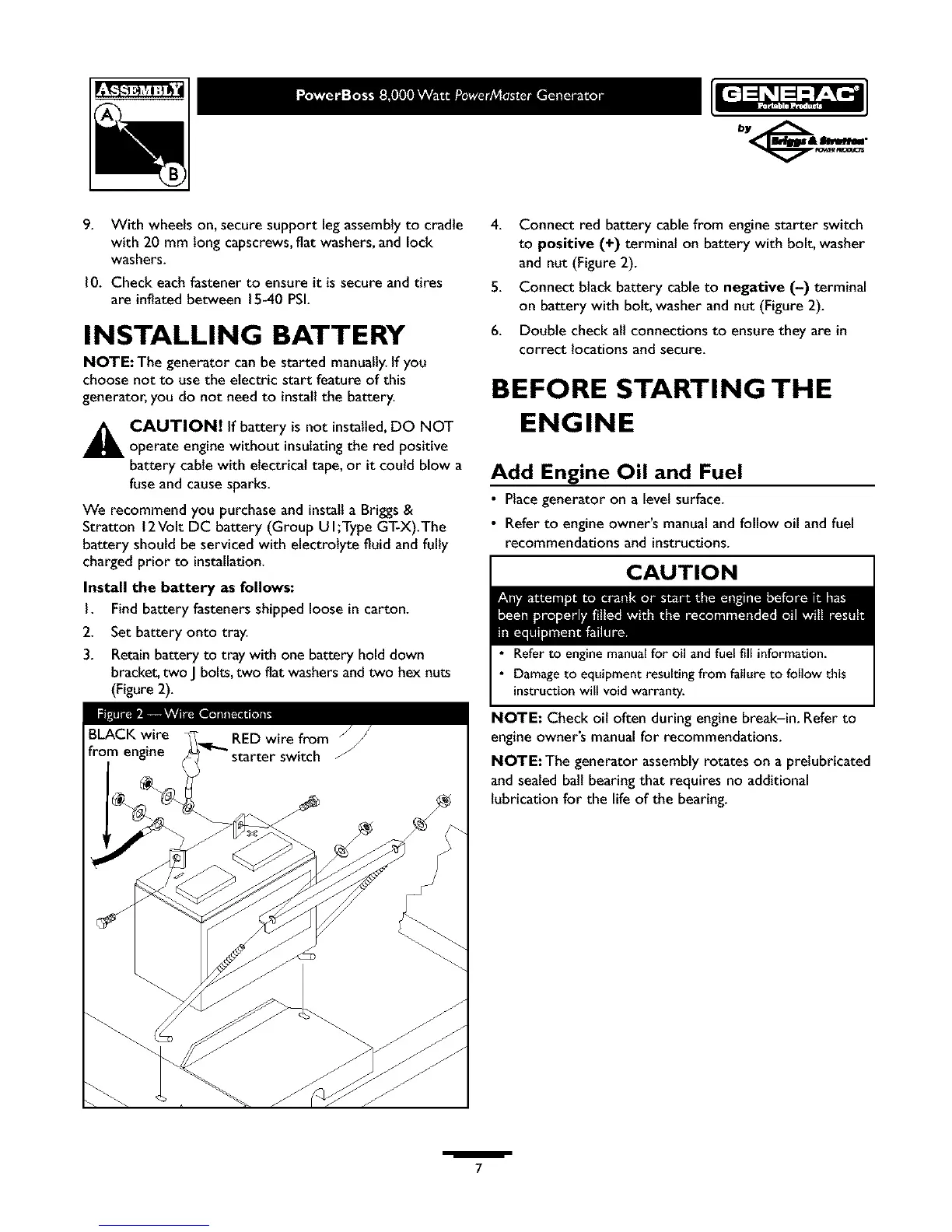

9. Withwheelson,securesupportlegassemblytocradle
with20mmlongcapscrews,flatwashers,andlock
washers.
10.Checkeachfastenertoensureitissecureandtires
areinflatedbetween15-40PSI.
INSTALLING BATTERY
NOTE: The generator can be started manually.If you
choose not to use the electric start feature of this
generator, you do not need to install the battery.
_ AUTION! If battery is not installed,DO NOT
operate engine without insulatingthe red positive
battery cable with electrical tape, or it could blow a
fuse and causesparks.
We recommend you purchase and install a Briggs&
Stratton 12Volt DC battery (Group U I;Type GT-X).The
battery should be serviced with electrolyte fluid and fully
charged prior to installation.
Install the battery as follows:
I. Find battery fasteners shipped loosein carton.
2. Set battery onto tray.
3. Retainbattery to tray with one battery hold down
bracket,two Jbolts,two fiat washersandtwo hex nuts
(Figure2).
4. Connect red battery cable from engine starter switch
to positive (+) terminal on battery with bolt, washer
and nut (Figure 2).
5. Connect black battery cable to negative (-) terminal
on battery with bolt, washer and nut (Figure 2).
6. Double check all connections to ensure they are in
correct locations and secure.
BEFORE STARTING THE
ENGINE
Add Engine Oil and Fuel
• Place generator on a level surface.
• Refer to engine owner's manualand follow oil and fuel
recommendations and instructions.
CAUTION
• Refer to engine manualfor oil andfuel fill information.
• Damage to equipment resulting from failure to follow this
instructionwill void warranty.
NOTE: Check oil often during engine break-in. Refer to
engine owner's manualfor recommendations.
NOTE: The generator assembly rotates on a pretubricated
and sealed ball bearing that requires no additional
lubricationfor the life of the bearing.
/
7
