Owner’s Manual for Generac PWRcell Battery 7
General Information
Component Locations
ON
OFF
BATTERY DISCONNECT
009890
C
E
B
A

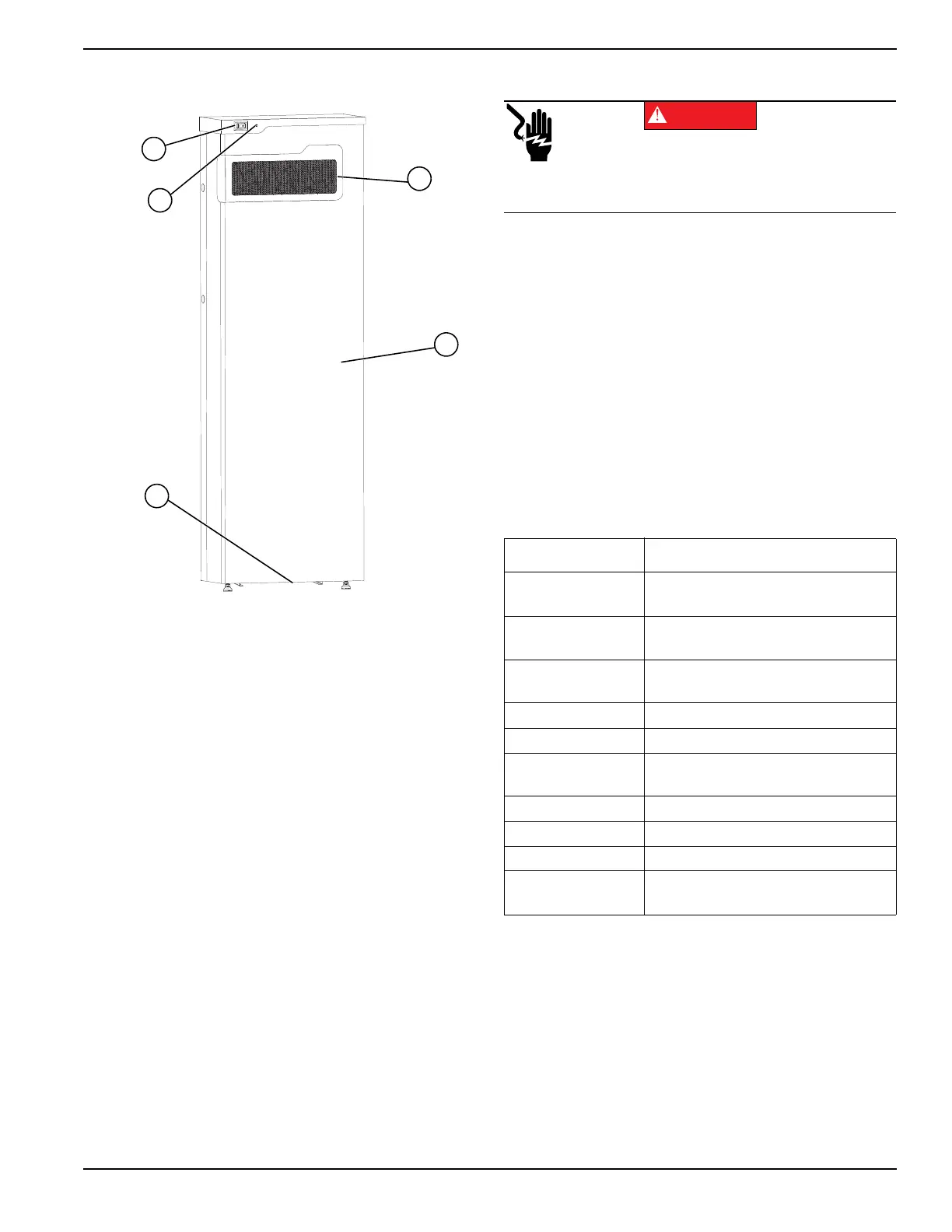

Figure 2-3. Component Locations
A Battery disconnect switch
B Battery status LED
C Intake filter
D Front cover
E Exhaust vent
Battery Disconnect Switch
(000600)
Electrocution. Initiate a system-wide shutdown and turn
the PWRcell Disconnect Switch OFF on all connected
batteries before performing service. Failure to do so will
result in death, serious injury, equipment and property
damage.
DANGER
See Figure 2-3. Battery Disconnect switch (A)
disconnects the battery string from the battery monitoring
system (BMS) electronics.
The Battery Disconnect switch ca
n be locked in the OFF
position if required. The switch bracket accepts a
standard lockout/tagout lock.
NOTE: T
urn Battery Disconnect OFF whenever the
system will be powered down and left inactive for an
extended period of time to prevent battery discharge.
Battery Status LED
See Figure 2-3. The color and strobing interval of LED
(B) communicates battery status.
Table 2-1. Battery Status LED
LED State Interpretation (strobe interval)
Green, 3 sec
solid
at power up
Enabled, operation starting
Red, 3 sec solid
at po
wer up
Disabled
Red/green, 
alternating
Initializing, connecting battery and
REbus, syst
em energizing
Green, solid Enabled, charging
Green, strobe Enabled, standby (3 sec)
Green, rapid
flashin
g
Enabled, discharging
Orange, solid Waiting
Orange, strobe Asleep (8 sec)
Red, strobe Disabled (3 sec)
Red, rapid
flashing
Error state
