Owner’s Manual for Generac PWRcell Battery 7
General Information
Serial Number Location

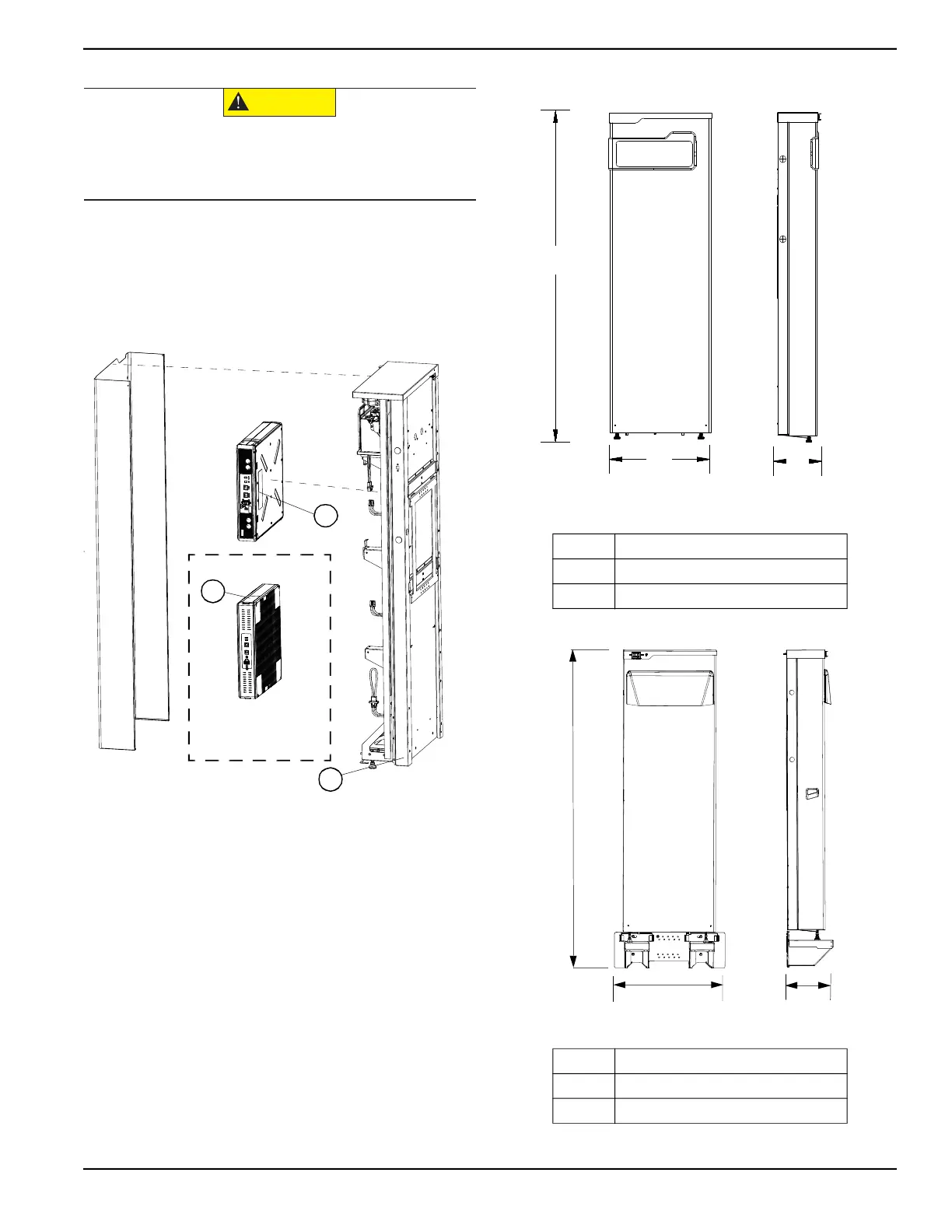

Refer to Figure 2-1 to locate serial numbers for the unit
(A) and the individual battery modules (B). Record this
information in Table 1: Important Information on the
inside front cover of this manual so it is available if the
tags are lost or damaged. When ordering parts or
requesting assistance, you may be asked to provide this
information.
Figure 2-1. Serial Number Location
Unit Dimensions
Indoor Rated Unit Dimensions
Figure 2-2. Unit Dimensions
Outdoor Rated Unit Dimensions
Figure 2-3. Unit Dimensions
CAUTION
(000731a)
Ensure all battery modules installed in any single
PWRcell Battery are the same type (EX or DCB).
Connecting different battery types can result in
equipment damage.
012306
A
B
B
EX Battery
DCB Battery
Do Not Mix Battery
Types in a Single
Enclosure
A 68-3/8 in (1,737 mm)
B 22 in (558 mm)
C 9-7/8 in (251 mm)
A 73 3/16 in (1,859 mm)
B 26 1/8 in (663 mm)
C 11 in (279 mm)
B
A
C
009892
011162
C
B
A
