20
235
66
250
440
580
( 650) (Grille measurement)
650
(Hanging bolt position)
400
(Hanging bolt position)
606
580
66
440
35
600
(Ceiling opening measurement)
250
60
86
Drain pipe (I.D
.
32)
54
46
131
111
47

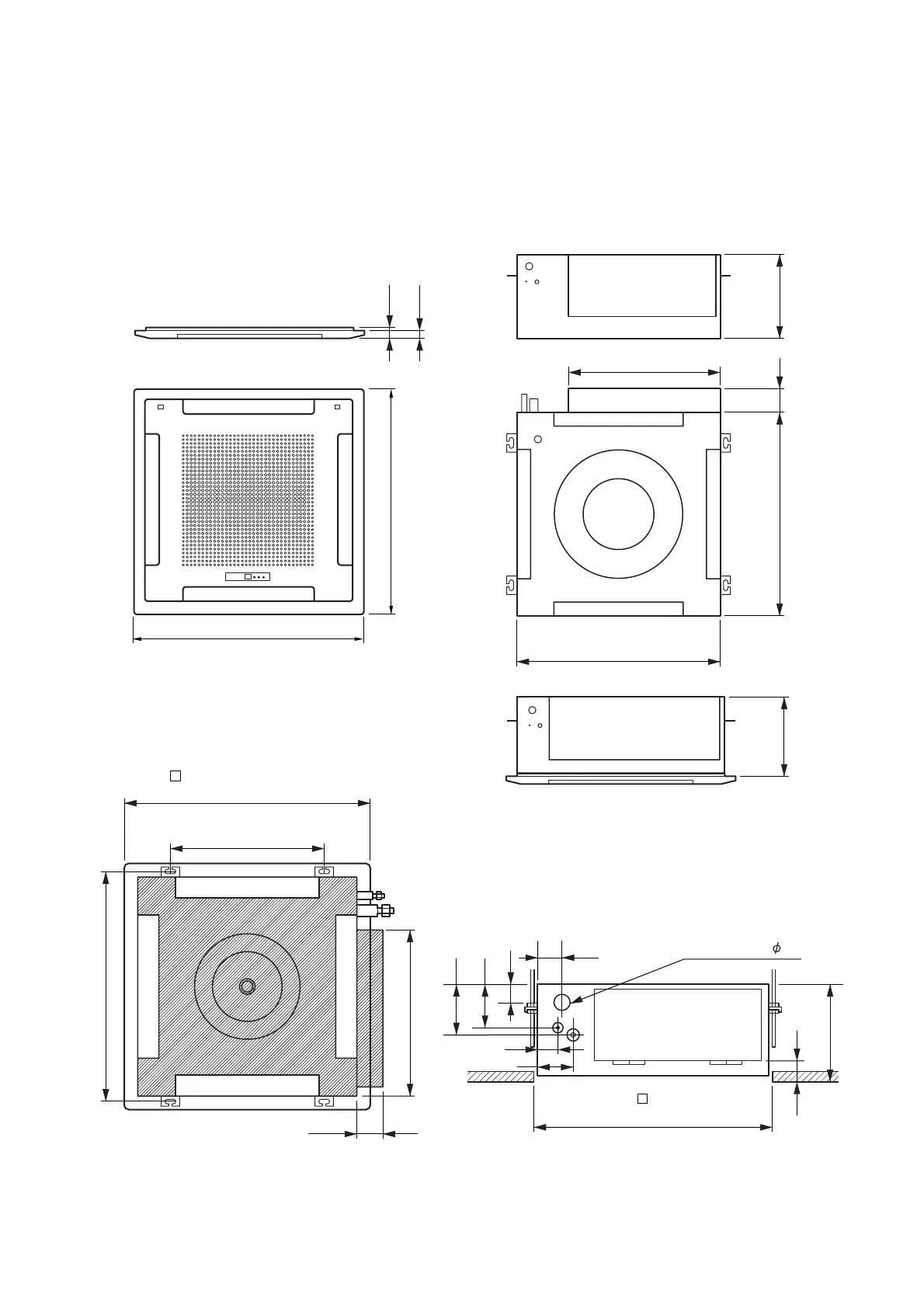

INDOOR UNIT (Cassette type)
Model : AUH12UMAB
(Unit : mm)
650
650
3
2006.02.03
3
5
Table of Contents
Table of Contents
1
Specifications
2
Electrical Data
2
Outline and Dimensions
3
Refrigerant System Diagram
6
Circuit Diagram
7
Indoor Pcb Circuit Diagram
9
Error Contents
11
Disassembly Illustration
13
Parts List
23
Standard Accessories
26
