General DOVETAILER II User Manual

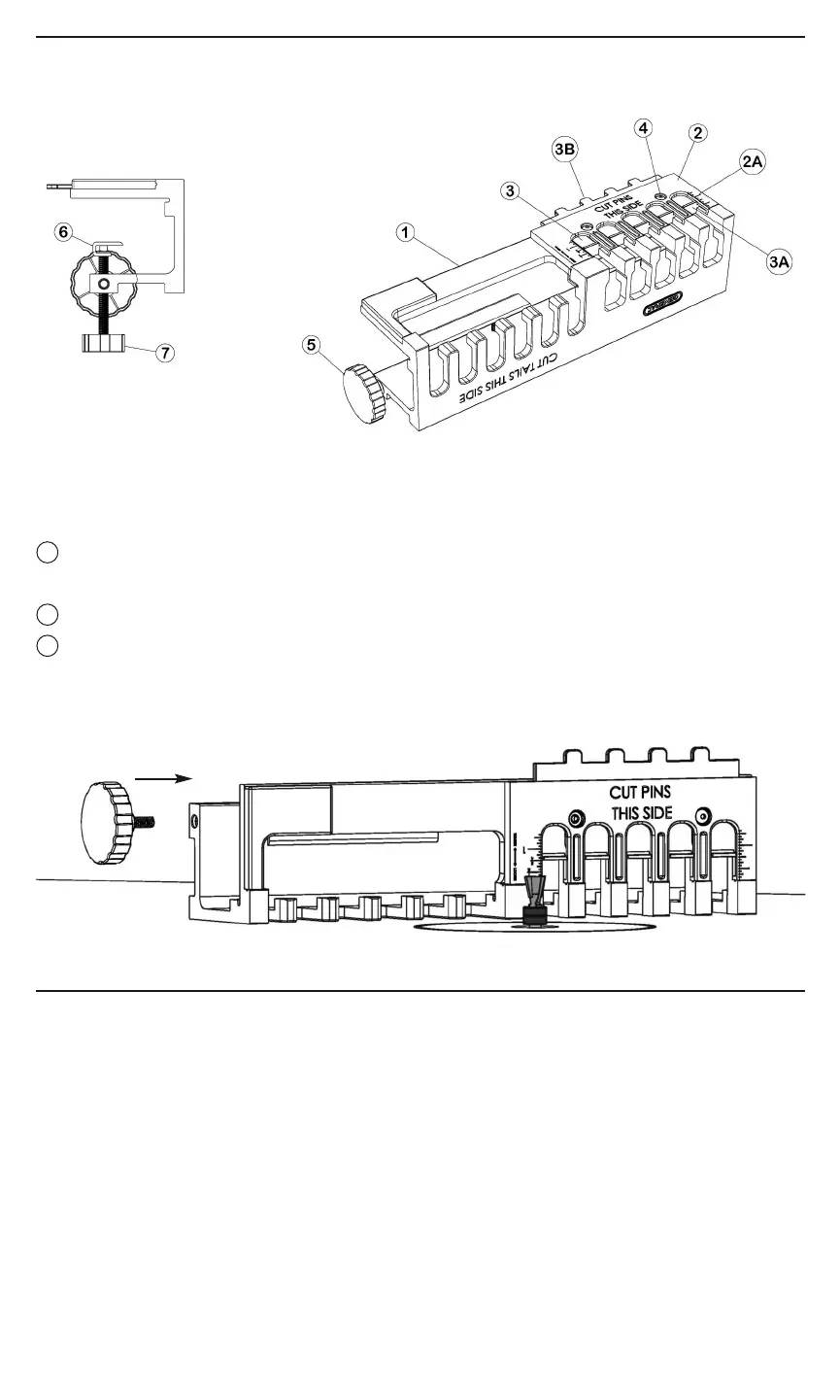

ANATOMY OF THE DOVETAILER II JIG
DOVETAIL JIG ASSEMBLY
NOTE: Your jig comes fully assembled for use. The addition of the router control knobs aids in the
use of this jig on router tables.
1. For use on a router table, securely screw in the two Router Table Guide Knobs [6] into the holes
provided on the ends of the jig. Always use the Router Table Guide Knobs when using the jig on
a router table.(FIG. 4)
DOVETAIL ROUTER BIT AND BEARINGS
Included bearings are 1/2 in. outside diameter (OD) and 1/4 in. inner diameter (ID). Router sleeves
or bushings can be used in place of the guide bearings as long as they are also 1/2 in. OD.
Included router bit is 14˚ x 1/2 in. Other bits can be substituted provided they have a 1/4 in.
diameter shank have no greater diameter than 17/32 in.
Caution: Keep fingers on control knobs only when using the jig on a router table.
5
FIG.4
 – Jig Assembly
 – Depth Plate
– Template Position Rule
 – Depth Adjuster Plate
– Depth Measuring Working Surface
– Edge Alignment Teeth
 – Template Lock Screws
 – Two Router Table Guide Knobs
 – Face Clamp
 – Face Clamp Thumb Screws
2A
3A
3B
861 Dovetailer II Manual 11P-081711_Layout 1 8/17/11 5:12 PM Page 5
