General TA500 User Manual

Page 3
3. OPERATION

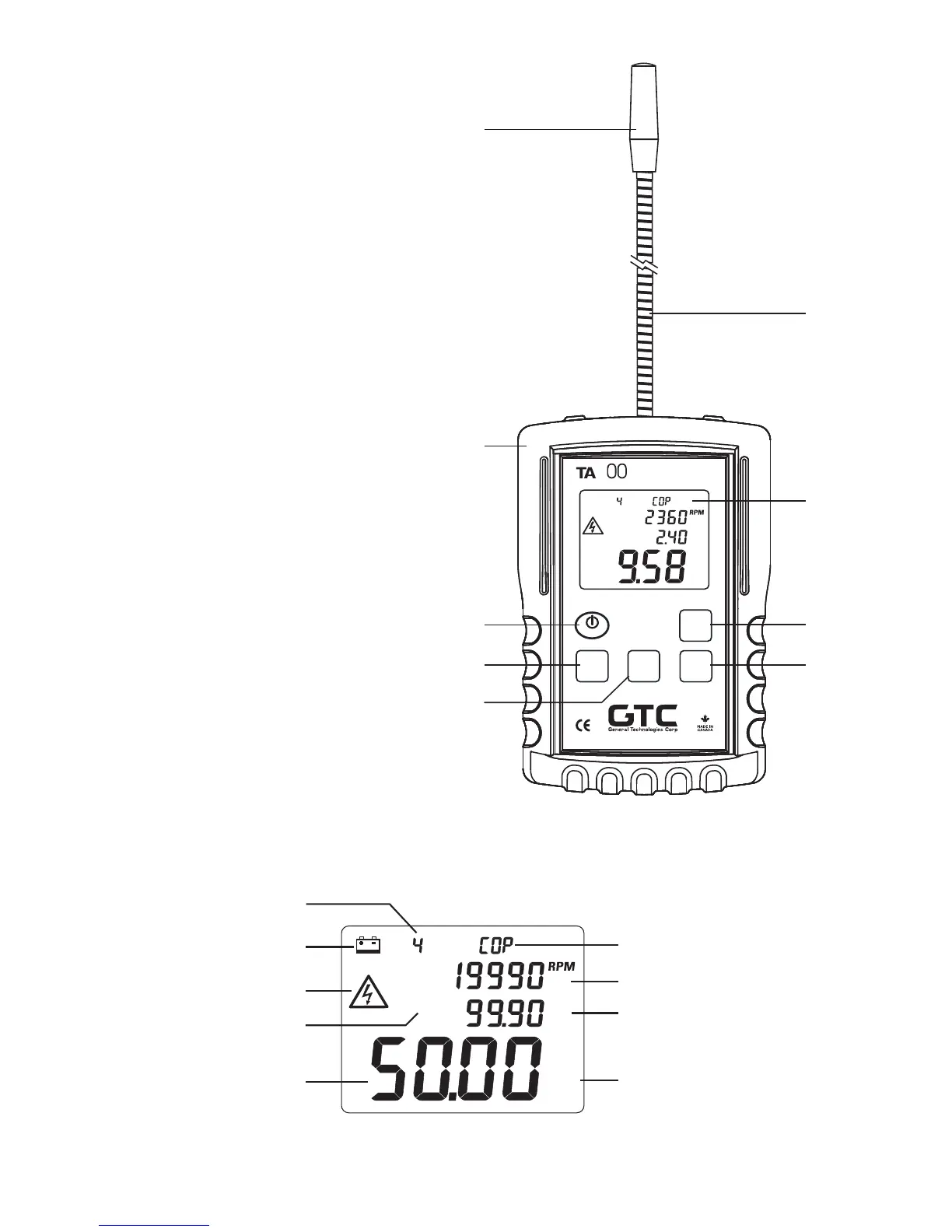

3.1 Instrument Description
1) Capacitive pick-up
2) Flexible probe
3) Protective rubber holster
4) LCD Display
5) Power ON/OFF / Reset button
6) Secondary Function / Capture button
7) Ignition System button
8) Main Function / Calibrate button
9) Engine Cycles button
3.2 LCD Display
3.2.1 LCD Display description
Fig. 1 - Instrument description
Multisystem Ignition Analyzer
Ignition
System
Function
Made in Canada
Reset
Engine
Cycles
SmarTach
+
COP
Function
5
Secondary
Main
Calibrate
Capture
Calibrate
3
4
5
7
9
6
8
1
2
C7
Burn Time
Cycles
mS
KVolt
Spark
Fig. 2 - LCD Display
Burn Time
Cycles
mS
Spark
KVolt
Ignition System
Secondary display A
Secondary display B
Function / measurement
units
Number of cycles
Low battery indicator
Spark detected
Secondary display
function
Main display
