1.2V-2V Batteries with 2 poles + BC4B measuring cable
4V – 16V Battery + BC5 - measuring cable
1.2V-2V Batteries with 4 or more poles + BC4B measuring cable
For batteries with four poles, connect the BACS test lead to all poles.
Note: If the battery has more than 4 poles, it is sufficient to connect the BACS cable to four battery poles (Use
the same poles at each battery).
Note: Please refer to the battery manufacturers connection guidelines for resistance/impedance measure-
ments. The connection stated in the quick start guide provides a high precision value any will not typically
match up to the published battery manufacturing data sheets.

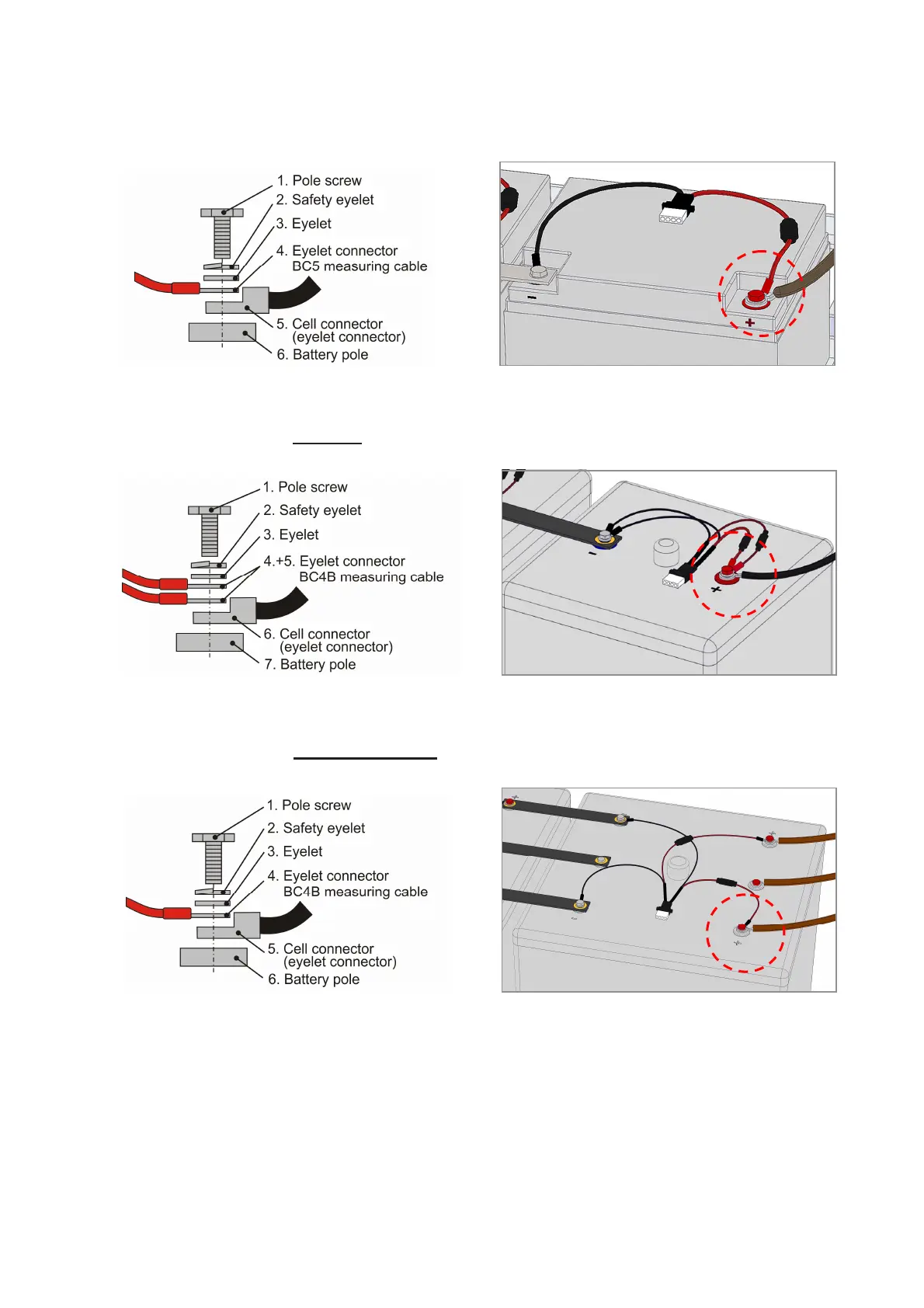

Connecting BACS BCx Measuring Cable to the Battery
