10 cm

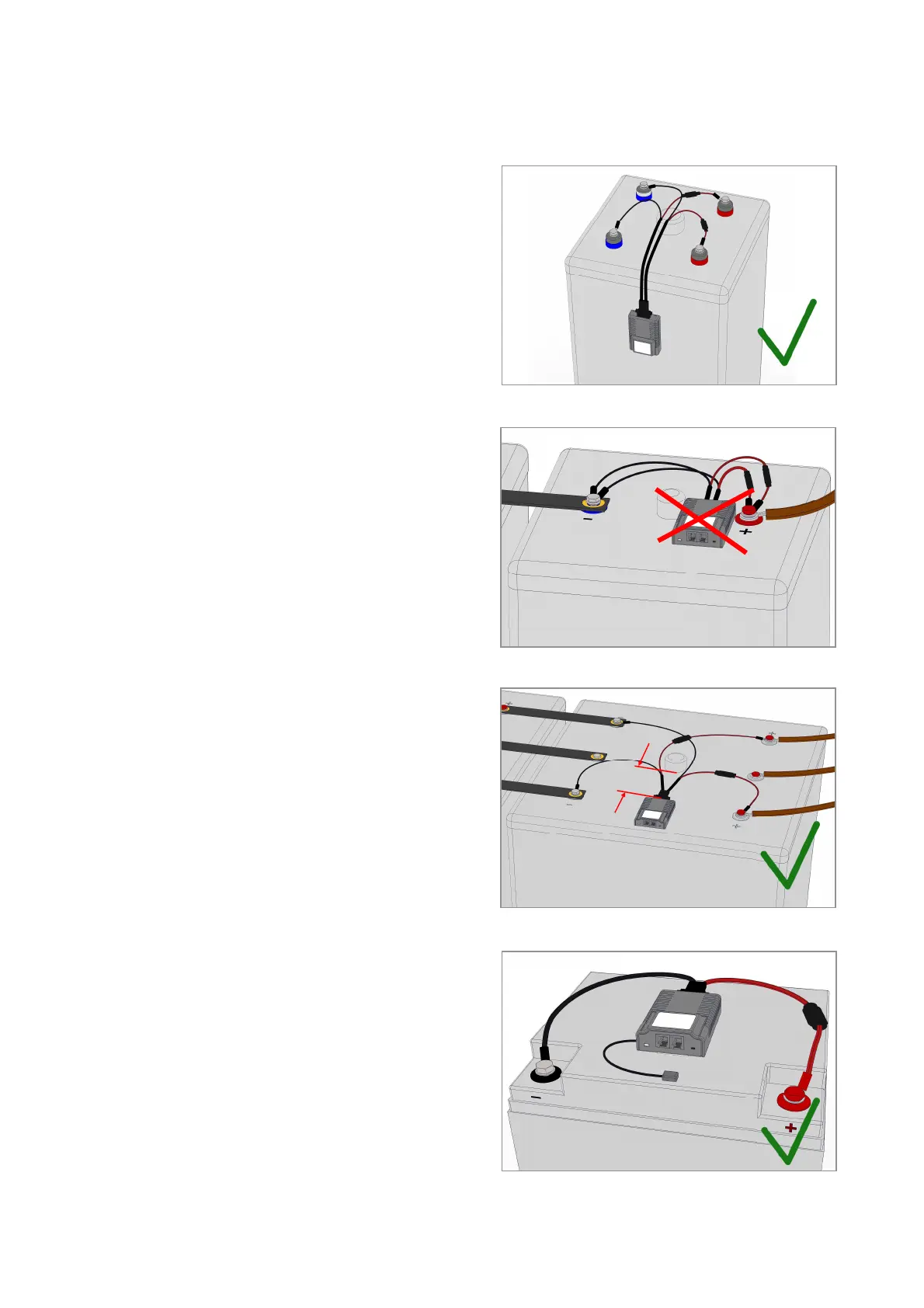

Please read before placing BACS modules!
General instructions
If there is not enough space on the top of the bat-
tery, place the BACS module at the front panel of
the battery.
Do not install modules on any cooling ribs or plugs.
Wet cells
For wet cells and low-maintenance batteries, ensure
a clearance to the breather of at least 10 cm
(3.94in.).
BACS Modules with
external temperature sensors
Instead of the internal temperature sensor
(standard), there are also BACS REV.3 modules
with already pre-assembled external temperature
sensor available.
This external temperature sensor is attached at the
end of a 23 cm (9.06in.) or 90 cm (35.43in.) long
cable.
Please ensure that each sensor is at the same posi-
tion of the batteries.
