Preparing the BACS Modules

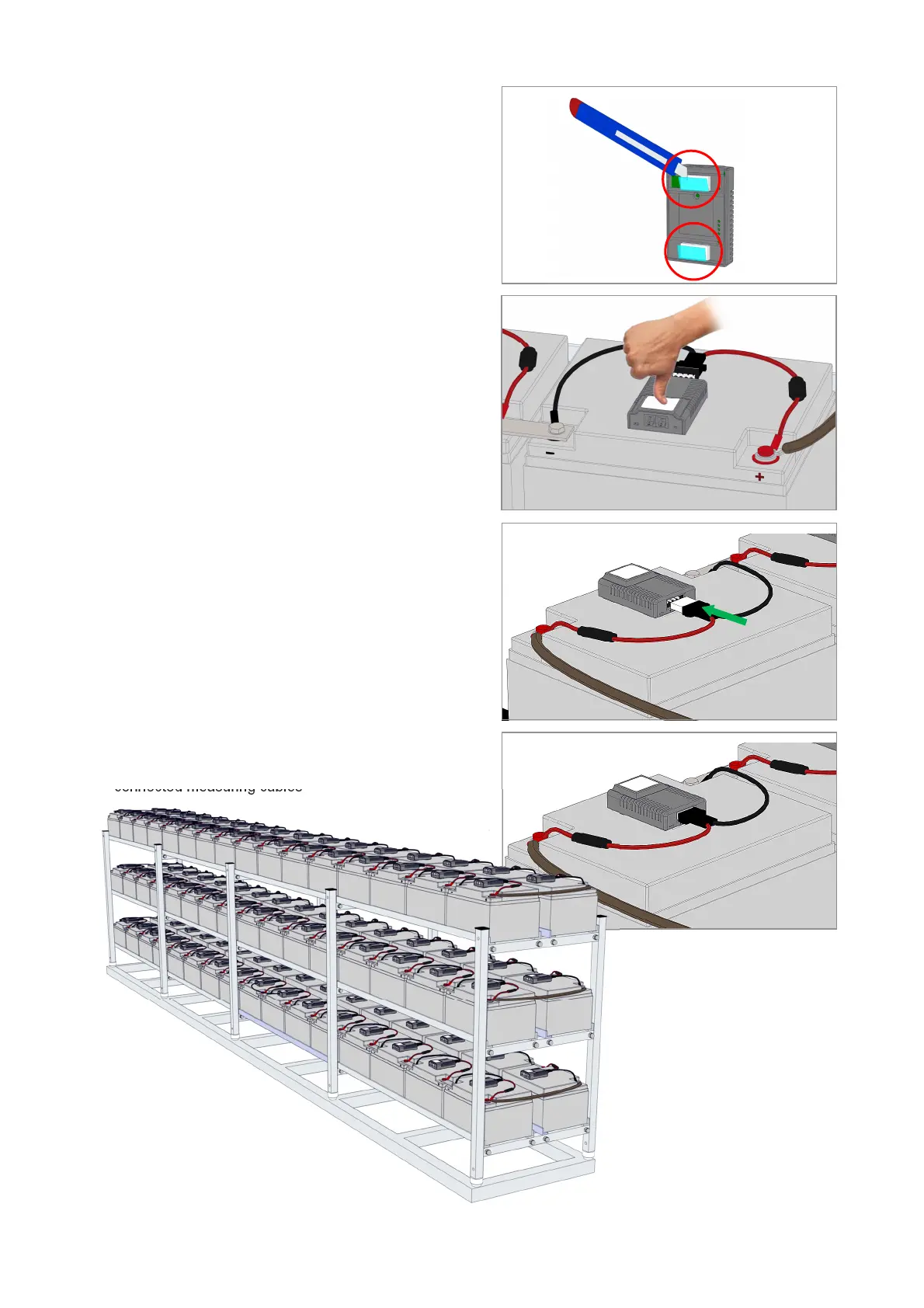

Mounting the modules
1. There are two Velcro or pressure strips on the backside
of the BACS module. Remove the adhesive film from the
Velcro strips.
2. Mounting the BACS module:
Position the BACS module, press it firmly with your
thumb under high pressure and hold the pressure for
about 5-10 seconds.
Connecting BCx Measuring Cable
to the BACS Module
The BCx measuring cable is equipped with a mecha-
nical protection against accidental polarity reversal.
Connect plug of the measuring cable to the socket at
the back of the module.
Installation example
BACS Modules with
connected measuring cables
