A Quick Start Set-up Guide
Now that you have your new Genesis Surround ServoSub 2/12t, we
realize that you are eager to hook it up and start listening!
Nevertheless, please read this quick start guide NOW before you
begin setting it up.
Safety Tips
The S2/12t is a powered subwoofer with a built-in amplifier: it needs to
be connected to a power socket that is always on. Make sure that you
are providing the correct voltage, and keep the S2/12t away from water
and direct heat.

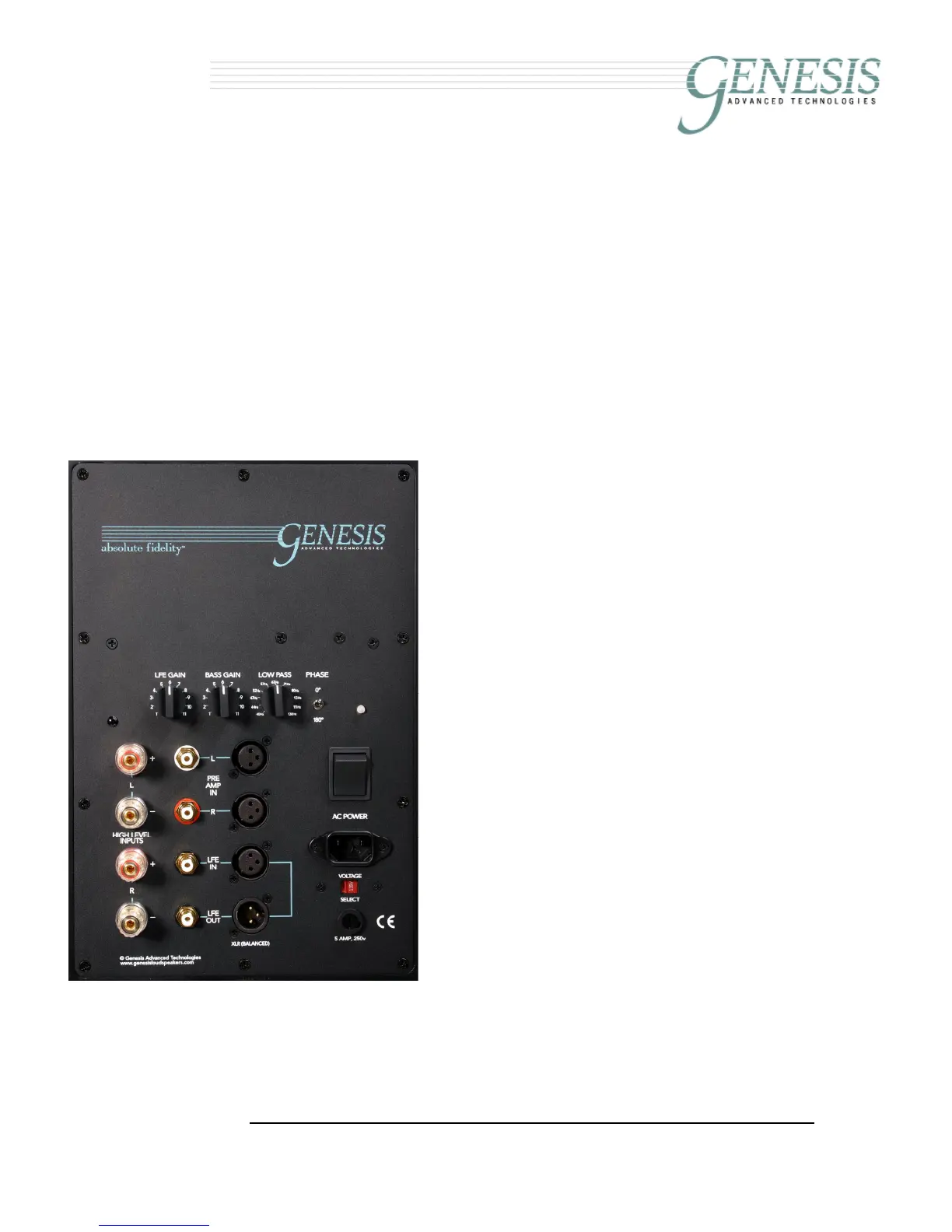

Connections
There are two common options for hooking-up
the S2/12t to your existing system. For
dedicated music systems and bass extension
of surround speakers, connect the high-level
speaker binding posts on the S2/12t to your
amplifier’s speaker outputs, or connect them
to the “speaker through” binding posts on the
associated speaker, using a short run of
loudspeaker cable.
For traditional subwoofer use in audio/video
systems in multi-channel home theater
applications, connect the line level LFE output
of your processor to the LFE input on the
S2/12t
Our unique LFE Blend™ technology allows
you to use the S2/12t in BOTH your music
system and your home theater system at the
same time by using the high-level speaker
inputs to augment the bass response of your
surround speakers and connecting your
processor’s LFE output to the the LFE Input.
You are able to blend the two signals together
for better bass management of your listening room.
The S2/12t’s LFE out can be used to daisy-chain multiple Genesis
subwoofers together for better control of the bass modes in your
listening room. This makes bass management easier, and reduces the
chance of experiencing a boomy, inarticulate bass response.
