GAS INSTRUCTIONS

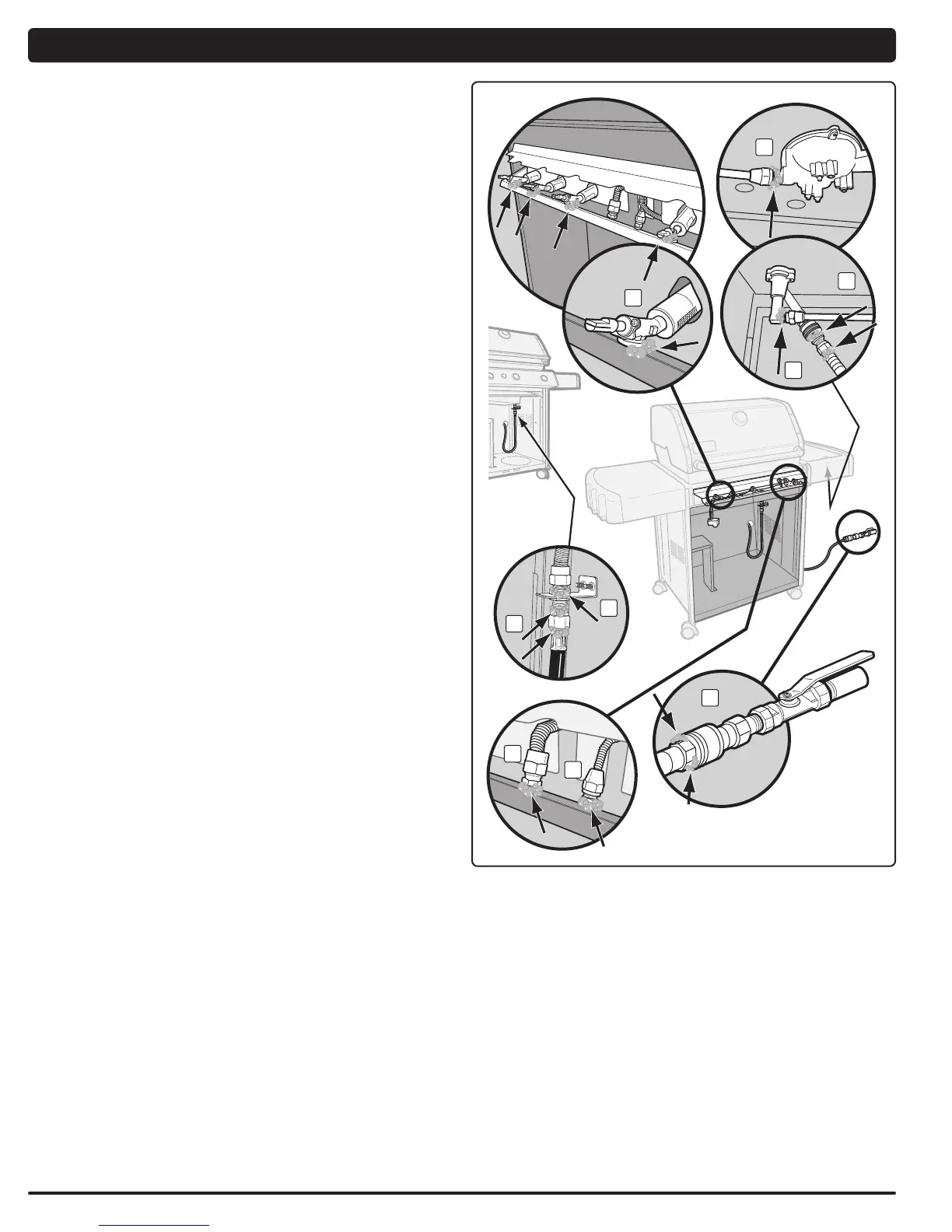

Check
A) Flexible Hose to bulkhead connection (1).
B) Main gas line to bulkhead connection (2).
C) Main gas line to manifold connections (3).
D) Side burner gas line to manifold connection (4).
E) Side burner pipe fitting to side burner cup (5).
F) Side burner pipe fitting to side burner valve connections (6).
m WARNING: If there is a leak at connection (1, 2, 3, 4, 5, or 6),
retighten the fitting with a wrench and recheck for leaks with
soap and water solution. If a leak persists after re-tightening
the fitting, turn OFF the gas. DO NOT OPERATE THE GRILL.
Contact the Customer Service Representative in your area
using the contact information on our web site.
Log onto www.weber.com.
G) Side burner quick disconnect connection (7).
H) Flexible Hose to Quick Disconnect connection (8).
I) Valves to manifold connections (9).
m WARNING: If there is a leak at connections (7, 8, or 9), turn
OFF the gas. DO NOT OPERATE THE GRILL. Contact the
Customer Service Representative in your area using the
contact information on our web site.
Log onto www.weber.com.
When leak checks are complete, turn gas supply OFF at the source and rinse
connections with water.
Reinstall Control Panel
You will need: Phillips screwdriver.
A) Position top edge of control panel on tabs of frame. Push down into position.
B) Reinstall igniter module.
C) Slide both shorter wind deflector tabs toward inside edge of control panel while you
slide longer tab over outside edge. Seek previous illustrations for reference.
D) Line up screws with screw holes on both control panel bracket and frame.
E) Tighten screws.
F) Place corresponding control knobs onto valve stems.
◆
The grills illustrated in this
Owner’s Guide may vary slightly
from the model purchased.
