supplied the final “eye” to get the angles right on the cabinets.
Consultants on veneers, glues, and a German consultant on CNC
machining were used in its development.
The cabinet required incredible
precision in manufacturing as the
cabinet is made of complex curves and
subtle angles that need to be joined
seamlessly and perfectly.
For example, there is not a single right-
angled joint in the entire construction! In
order to achieve the optical illusion to
make the cabinet look slimmer than it
actually is, the sides of the cabinet are
sloped 1degree top to bottom, and also
angled 3degrees front to back, and leans backwards by 5degrees.
Joints and braces had to be cut precisely at 1degree, 3degree, and
5degree angles.
The result is that the cabinet is not only beautiful, but exceedingly well
damped and vibration-free – contributing to a loudspeaker that is
extremely low in coloration. It uses subtle angles, complex curves, and
contrasting colors to transform a loudspeaker into a beautiful piece of
sculpture or musical instrument.
Try this as a party trick for the optical illusion in the G6.1: the rear grill
looks like it has parallel sides when you are looking at it – but when you
take it out, and try to put it back in upside down, it’s impossible. The
bottom is more than an inch wider than the top!
The structural principle used in the construction is this: when any
loudspeaker is operating, ALL the components of the speaker are set
into vibration to a larger or smaller extent. The goal of the cabinet is to
reduce this vibration to a minimum, distribute it, and damp it so that
there is no energy storage in the cabinet itself. This then eliminates the
boxy coloration that is evident in many loudspeakers.
In some parts of the cabinet where vibration would have been the
greatest, two inches (52mm) of multi-layer bonded MDF was used to
provide the damping, structural integrity, as well as a rigid platform for
the drivers to be located. In other parts of the cabinet, extensive bracing
was carefully incorporated using 25mm slabs of MDF to eliminate
cabinet flex and panel resonance.

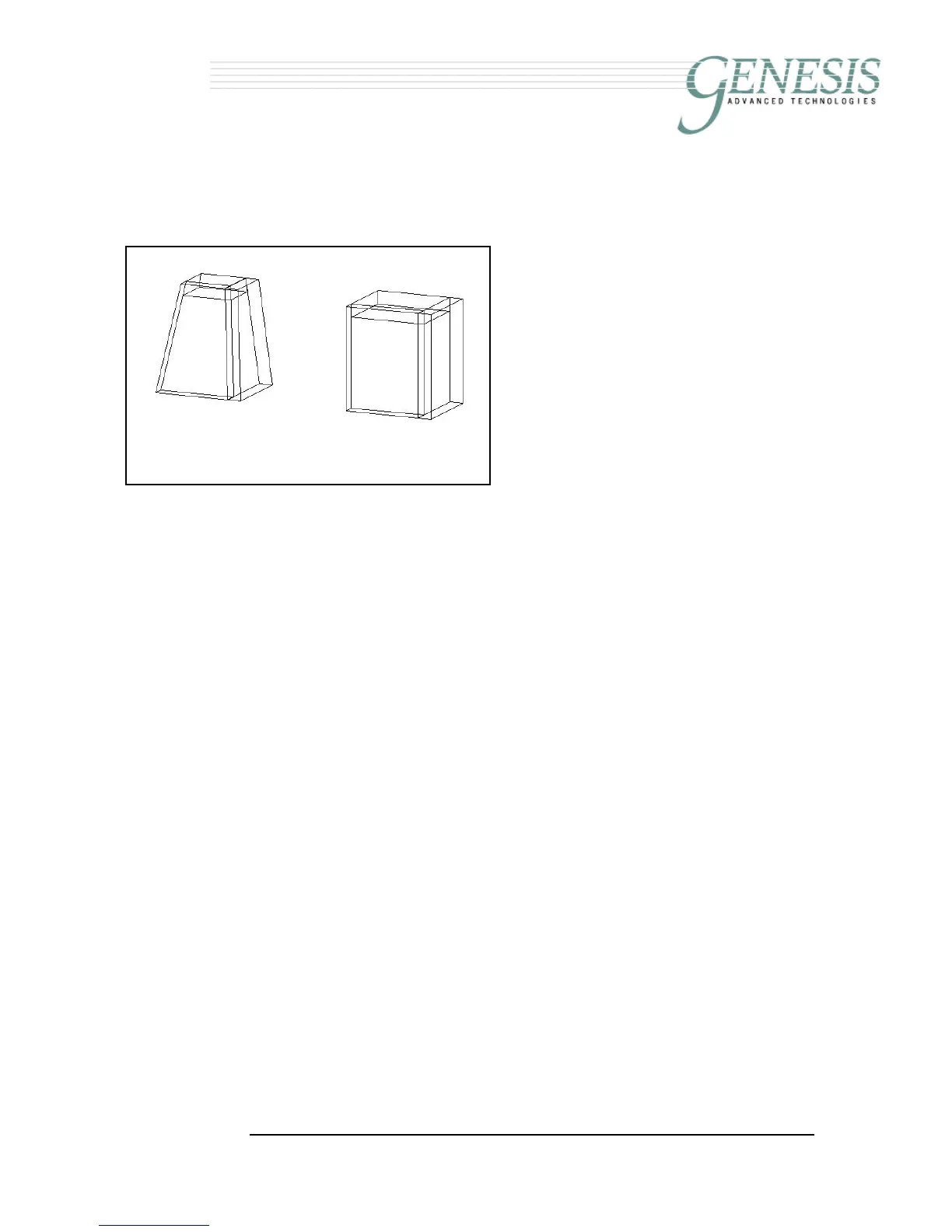

Joinery on G6.1 Square Box
