ver 1.3
8
88
8
~ÄëçäìíÉ=ÑáÇÉäáíó
might find that the power supply you have limits the amount of bass that
your G6.1 can deliver.
You will know that your speakers are limited by the power supply if the
lights dim when there is a heavy bass-drum whack. If you have the
luxury of bringing a dedicated line in for your hifi system, we recommend
a minimum of 30 amps.

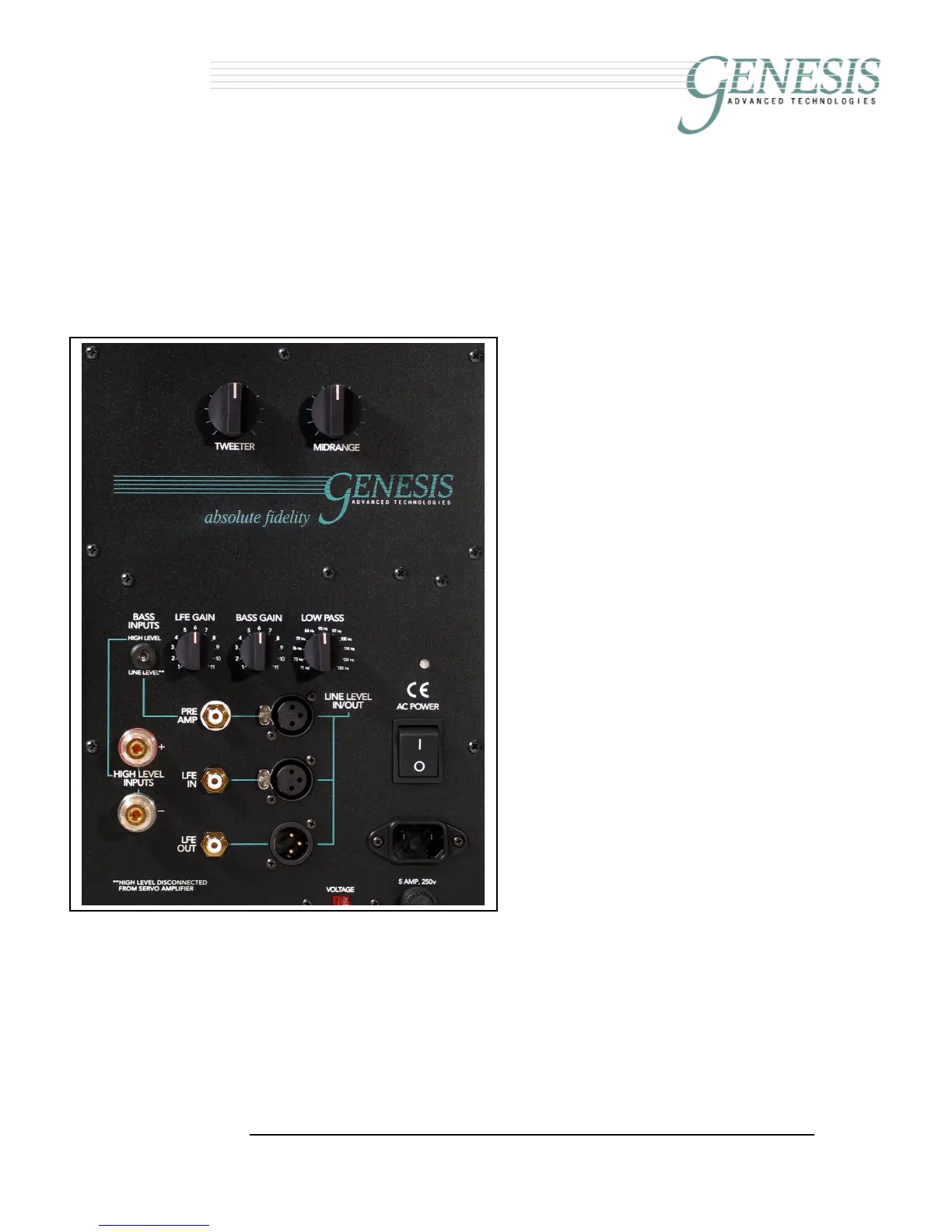

There is an on/off switch for the power
amplifier. This switch should always be
left on unless the system will not be
used for a long time (like if you are
going on vacation). The built-in
amplifier has an auto-sensing circuit
that will automatically shut the
amplifier off when there is no signal for
around 10 minutes. It will immediately
switch the amplifier on if there is a
signal sensed.
2.3 Source Input Connections
2.3.1 Recommended Connections
Connect the speaker outputs of your
power amplifier to the HIGH LEVEL
INPUTS binding posts using a high-
quality loudspeaker cable. This is
recommended both sonically and for
convenience. The B
ASS INPUTS
selector switch should be in the
up
position – pointing to the high-level
inputs being used.
Make sure that you have the correct
polarity connected for both speakers –
the plus(+), positive(+ve) or red
terminal on the G6.1 should be
connected to the plus, positive, or red terminal on your power amplifier.
The minus(-), negative(-ve) or black terminal should be connected to the
amplifier’s minus(-), negative(-ve) or black output.
2.3.2 Alternative Input Connection
You may wish to connect the bass section of the G6.1 directly to your
preamplifier instead. You may wish to do this if you know that your
power amplifier does not have a flat response down to below 20Hz.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Genesis G6.1 and is the answer not in the manual?

Genesis G6.1 Specifications

Frequency and Sensitivity IconFrequency and Sensitivity
frequency response55Hz to 36kHz, ± 3dB
sensitivity89 dB, 1 watt 1 meter
Power IconPower
min/max power (tube)75/500 watts per side
min/max power (solid state)100/1000 watts per side
Transducers IconTransducers
hf transducersOne 1” Circular Ribbon Tweeter
midrange transducersOne Genesis 5” titanium cone midrange
lf transducersTwo Genesis 6.5” aluminium cone
Impedance and Inputs IconImpedance and Inputs
input impedance4 ohms (Nominal)
inputsHigh-level with 5-way binding posts
throughputsHigh-level with 5-way binding posts
Weight and Dimensions IconWeight and Dimensions
dimensionsH 14½ “ x W 20½” x D 12”
weight38.5 lbs (17.5kg) per side
