9
English
UNPACKING AND CONTENTS
IMPORTANT: Due to modern mass production techniques, it is unlikely the tool is
faulty or that a part is missing. If you find anything wrong, do not operate the tool until
the parts have been replaced or the fault has been rectified. Failure to do so could result
in serious personal injury.
CONTENTS IN PACKAGE
Description Q'ty Description Q'ty
ASSEMBLY AND ADJUSTMENTS
WARNING: Always be sure that the tool is switched off and unplugged before
adjusting, adding accessories, or checking a function on the tool.
WARNING: 4-3/4” is the maximum blade capacity of your saw. Never use a
blade that is too thick to allow the outer flange washer to fit properly on the spindle.
Too thick a blade will prevent the blade bolt from securing the blade on the spindle.
Larger diameter blades will contact the blade guards. Either situation could result in a
serious accident.

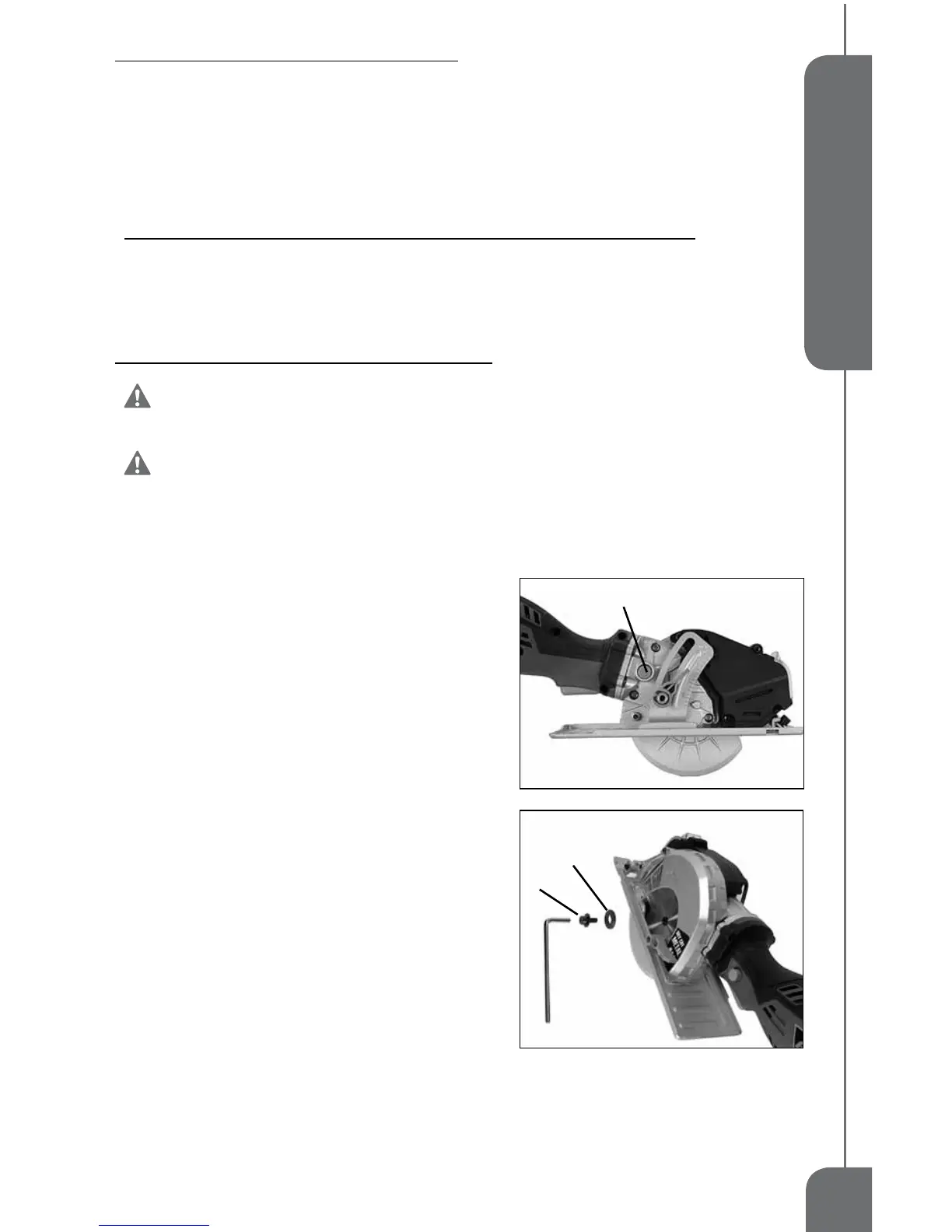

BLADE INSTALLATION (FIG 2)
• Unplug your saw.
• Depress the spindle lock (14).
• Using the blade wrench provided, remove the blade
bolt (5) by turning it clockwise.
• Remove the outer blade flange washer (6).
• Lift the lower guard (3) and slide the blade onto the spindle.
The saw teeth point upward at the front of the saw.
• Replace the outer flange washer.
• Depress the spindle lock and replace the blade bolt.
• Tighten the blade bolt securely by turning it
counterclockwise with the wrench.
REMOVING THE BLADE (FIG 3)
• Unplug your saw.
• Depress the spindle lock (14).
• Remove the blade bolt by turning it clockwise with the
wrench provided.
• Remove the outer flange washer (6).
• Lift the lower blade guard (3).
• Remove the blade from the spindle and off the saw.
6
5
FIG 3
FIG 2
14
Dry Cut Metal Saw 1
Blade 1
Rip Guide 1
Blade Change Wrench 1
Operator’s Manual 1
