AUTOMATED SYSTEM MISTRAL ENV
1. DESCRIPTION
The MISTRAL ENV automated system for swing-leaf gates is an electro-mechanical operator transmitting motion to the leaf via a worm screw system.
A convenient and reliable release with customized key makes it possible to move the leaf by hand in the event of malfunction or power failure.
The MISTRAL ENV automation can ensure, if properly installed and adjusted, an installation complies with current safety standards. The management of a
virtual encoder further enhances the security level of automation.
• The correct operation and the declared specifications only apply if GENIUS accessories and safety devices are used.
• As no mechanical clutch device is fitted, a control unit with adjustable electronic clutch is required to ensure the necessary anti-crushing safety.
• The MISTRAL ENV automated system was designed and built for controlling vehicle access. Avoid any other use whatever.
• The opening of doors and gates on emergency escape routes cannot be automated.

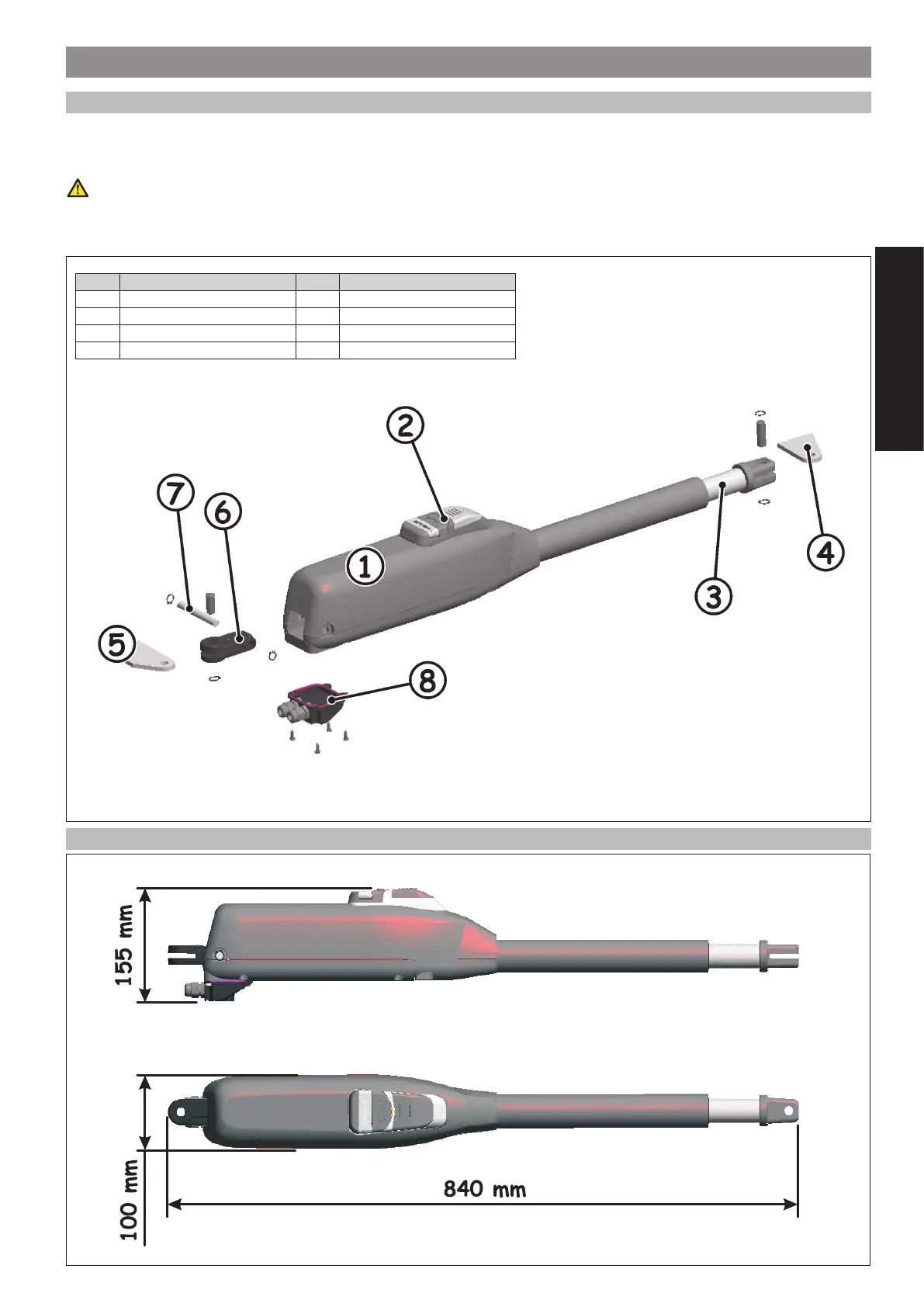

2. DIMENSIONS
Pos. Description Pos. Description
a
Gearmotor
e
Rear bracket
b
Release device
f
Rear fitting
c
Rod
g
Rear fitting pin
d
Front bracket
h
Terminal board cover
Pos. Description Pos. Description
a
Gearmotor
e
Rear bracket
b
Release device
f
Rear fitting
c
Rod
g
Rear fitting pin
d
Front bracket
h
Terminal board cover
Fig. 1Fig. 1
Fig. 2Fig. 2
