Genius MISTRAL ENV User Manual

10
ENGLISH

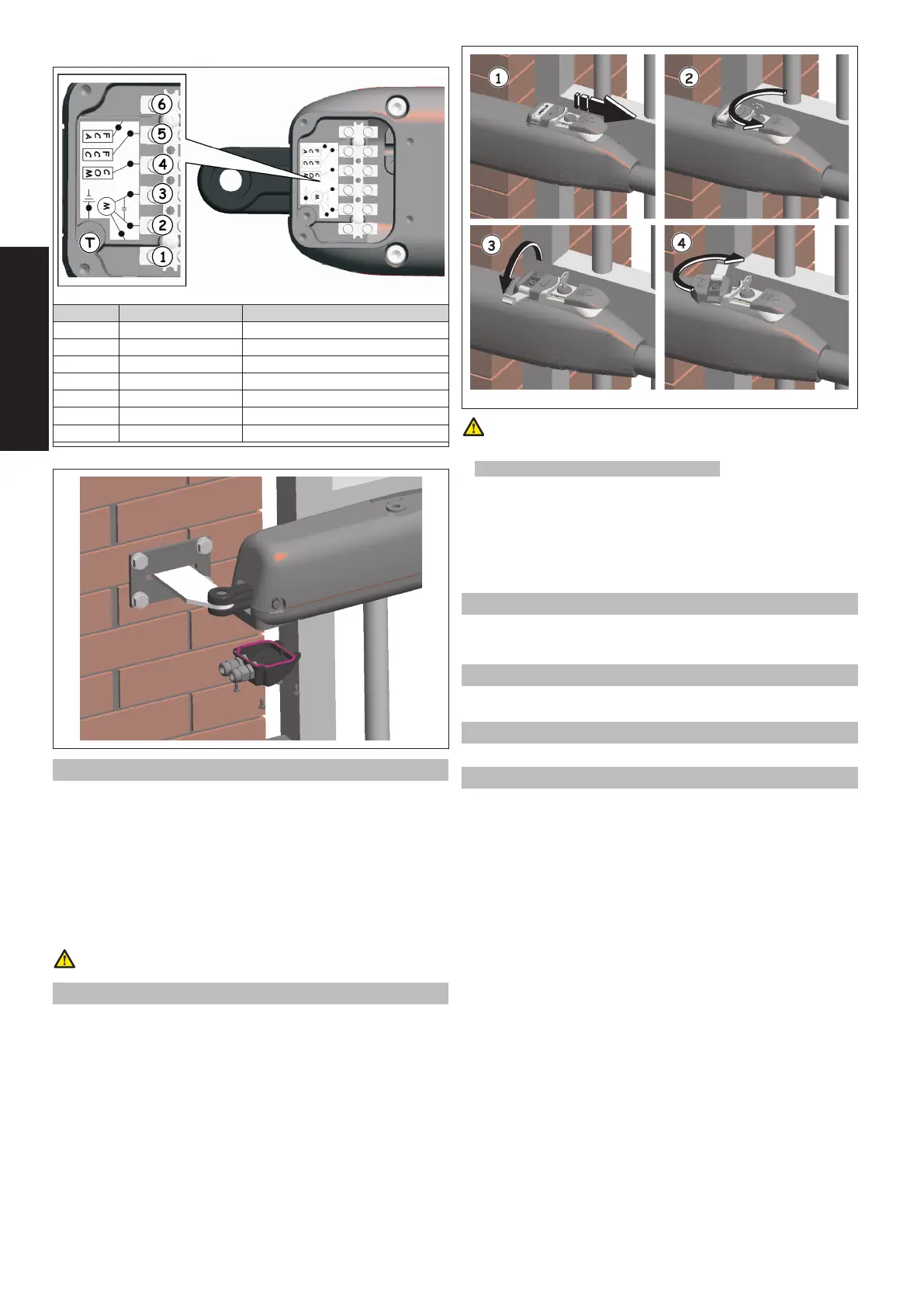

Connect the motor by referring to the table of Fig. 15.
Close the cover with the four supplied screws, Fig. 16.
5. TESTING THE AUTOMATED SYSTEM
Connect the control unit according to the relevant instructions.
Power up the system and check the status of the LEDs as indicated in the
instructions for the unit.
Program the control unit according to your requirements.
Carefully check operating efficiency of the automated system and of
all accessories connected to it, paying special attention to the safety
devices.
Hand the “User’s Guide” to the final user together with the Maintenance
sheet.
Explain correct operation and use of the automated system to the user.
Indicate the potentially dangerous areas of the automated system to
the user.
The file “Guide for the User” is in the middle of this book as a removable
file.
6. MANUAL OPERATION
If the automated system needs to be moved manually due to a power lack
or to an operator malfunction, proceed as follows:
Cut power by means of the safety circuit breaker (even in the event of
a power lack).
Slide the protective cap, Fig. 17 - a.
Insert the key and turn it 90°, Fig. 17 - b.
Lift the control lever, Fig. 17 - c.
To release the operator turn 180° the control lever to the direction indi-
cated by the arrow on the release system, Fig. 17 - d.
Open and close the leaf manually.
3.
4.
•
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
Fig. 15Fig. 15
Pos. Colour Description
a
Blue Phase 1
b
Not used. —
c
Brown Phase 2
d
Not used. —
e
Not used. —
f
Not used. —
T Not used —
Pos. Colour Description
a
Blue Phase 1
b
Not used. —
c
Brown Phase 2
d
Not used. —
e
Not used. —
f
Not used. —
T Not used —
Fig. 16Fig. 16
To hold the operator in manual operation the release device should
be left in its current positions and the system should be without
power.
6.1. RESTORING NORMAL OPERATION
To restore normal operating conditions, proceed as follows:
Make sure that the system is not powered.
Turn the release system 180° in the opposite direction of the arrow.
Turn 90° the release key and remove it.
Close the control lever and the protection cover.
Make sure that the gate cannot be moved manually.
Power up the system and perform some movements in order to check
the correct restoring of every function of the automated system.
7. MAINTENANCE
To ensure trouble-free operation and a constant safety level, an overall che-
ck of the system should be carried out every 6 months. A form for recording
operations has been included in the “User’s Guide” booklet.
8. REPAIRS
The User must not in any way attempt to repair or to take direct action and
must solely contact qualified GENIUS personnel or GENIUS service centres.
9. AVAILABLE ACCESSORIES
For accessories, see the GENIUS catalogue.
10. SPECIAL APPLICATIONS
Applications other than those in this manual are EXPRESSLY PROHIBITED.
1.
2.
3.
4.
5.
6.
Fig. 17Fig. 17
