Genius MISTRAL ENV User Manual

9
ENGLISH

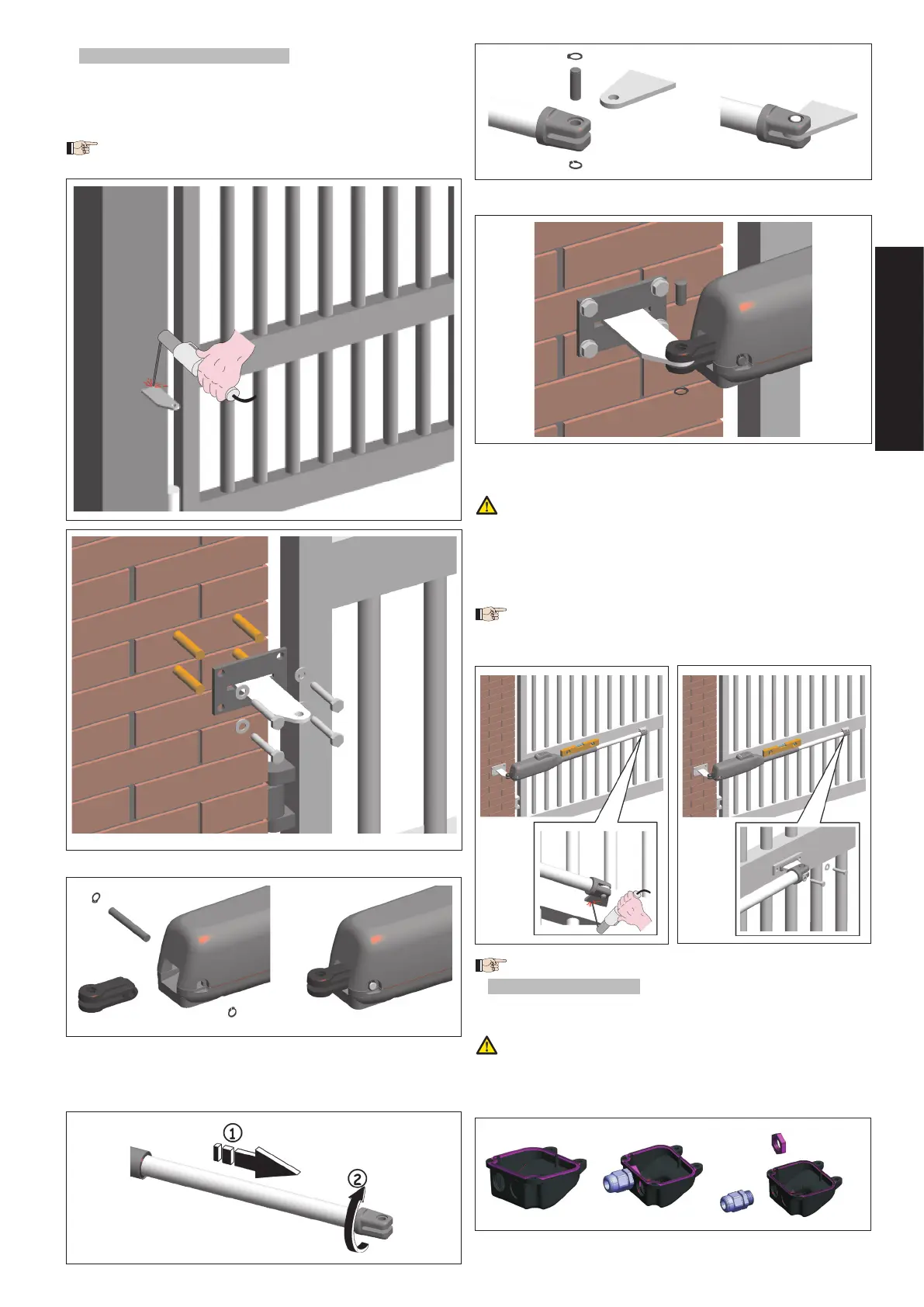

4.4. INSTALLING THE OPERATORS
Fix the rear bracket in the position determined before. In the event of
iron pillar carefully weld the bracket directly on the pillar (Fig. 6). In the
event of masonry pillar, use the suitable plate (optional) for the fixing to
screw (Fig. 7) by making use of suitable fastening systems. Then carefully
weld the bracket to the plate.
During the fastening operations, check if the bracket is perfectly
horizontal by means of a level.
Assemble the rear fitting to the operator as shown in Fig.8.
Set the operator for manual operation (see paragraph 6).
Completely extend the rod till it reaches the limit stop, fig. 9 ref. a.
Lock the operator again (see paragraph 6.1).
Turn the rod clockwise half a revolution / a revolution, Fig. 9 ref. b.
Assemble the front bracket as shown in Fig. 10.
1.
2.
3.
4.
5.
6.
7.
Fig. 6Fig. 6
Fig. 7Fig. 7
Fig. 8Fig. 8
Fig. 9Fig. 9
Fix the operator to the rear bracket by means of the supplied pins as
shown in Fig. 11.
Close the leaf and, keeping the operator in a perfect horizontal position,
determine the fastening point of the front bracket (Fig. 12).
Temporarily fix the front bracket with two welding spots (Fig. 12).
If the gate structure does not allow a fix bracket fastening it is necessary
to create a sturdy supporting base in the gate structure.
Release the operator (see paragraph 6) and manually check if the gate
can completely open without hindrances and stop at the mechanical
travel stops as well as if the leaf moves regularly without any friction.
Carry out the necessary corrective measures and repeat from point 8.
Temporarily release the operator from the front bracket and weld the
bracket definitively.
If the leaf structure does not allow a bracket welding, the suitable
bracket to screw (optional) can be used together with suitable
fastening systems (Fig. 13). Then carry out the same operations as
prescribed for the bracket to weld.
We recommend to grease all the fastening pins of the fittings.
4.5. OPERATOR WIRING
A terminal board for connecting the motor is housed at the bottom of the
operator.
The supplied cable must be used for the mobile section connections
or, alternatively, a cable of the same diameter suitable for mobile
installation from the outside.
Motor wiring procedure:
Free the pre-drilled hole on the supplied cover, Fig. 14.
Fit the supplied cable grippers.
8.
9.
10.
11.
12.
13.
1.
2.
Fig. 10Fig. 10
Fig. 11Fig. 11
Fig. 12Fig. 12
Fig. 13Fig. 13
Fig. 14Fig. 14
