CONTROL FUNCTIONS

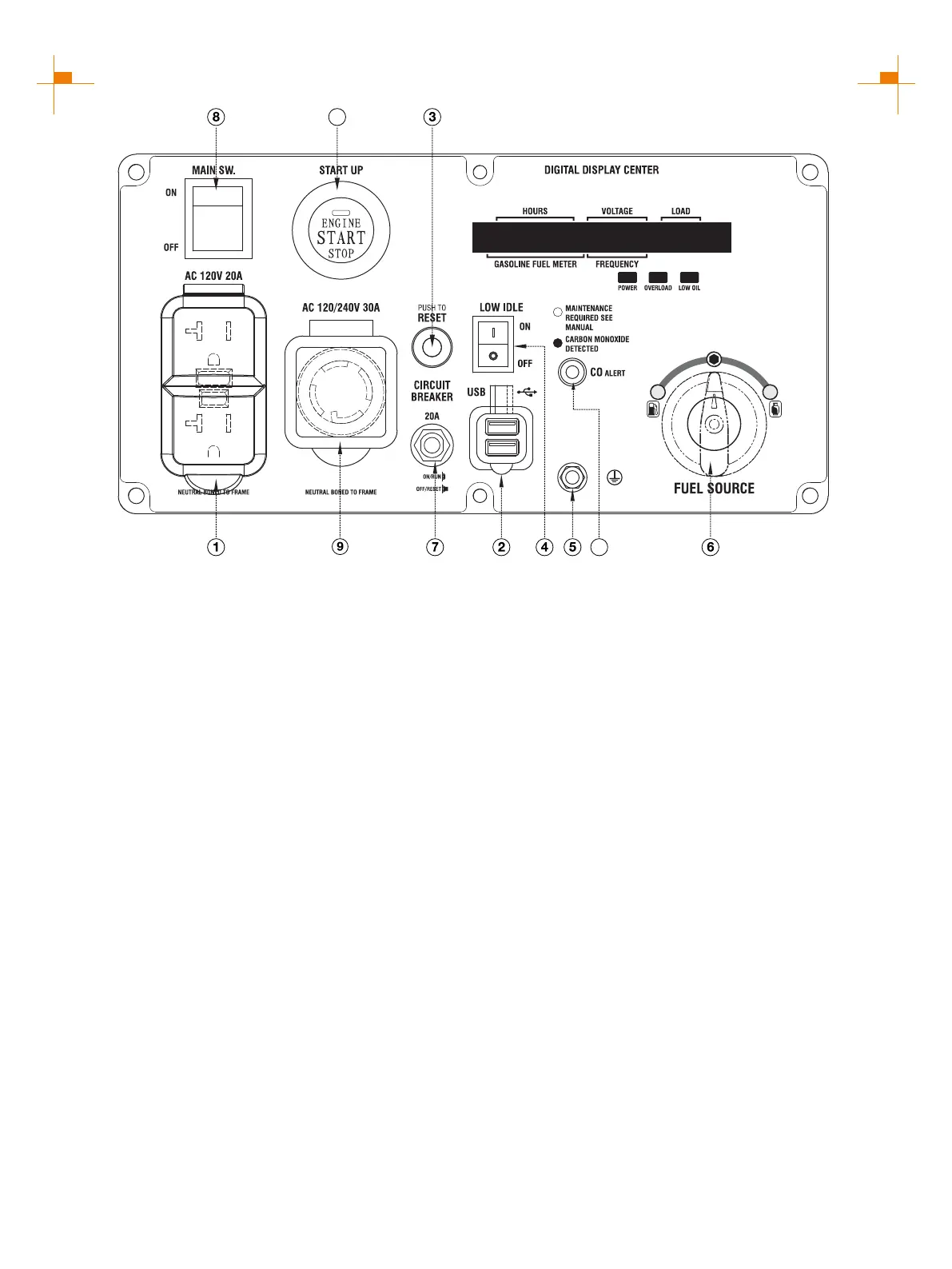

CONTROL PANEL FEATURES GM6000iED
① 120-Volt, 20-Amp Duplex Outlet (NEMA 5-20R):
The outlet is capable of carrying a maximum of 20
amps.
② USB Duplex: 5V DC that come in 1 amps and 2.1
amps.
③ Reset Breaker: If the inverter is overloaded, the
reset breaker will trip. The engine will continue to run,
but there will be no output from the inverter. Unplug
the devices and reduce the load. Push in the reset
breaker to reset it.
④ Low Idle: When turned to the ON position, the
engine will sense the load needed and run at a slower
RPM to save fuel.
⑤ Ground Terminal: The ground terminal is used to
externally ground the inverter.
⑥ Fuel Source: GAS/LPG valve that changes the
fuel into the engine.
⑦ AC Breaker: If the inverter is overloaded, the reset
breaker will trip to block current.
⑧ Main Switch: Manage battery power and
shutdown.
⑨ 120-Volt, 30-Amp Outlet : The outlet is (L5-30)
capable of carrying a maximum of 30 amps.
11
10
⑩ CO Alarm: Flashing red light: dangerous levels of
carbon monoxide gas have built up leave immediately
until area has aired out. Move generator to well-
ventilated area before operation. Flashing yellow light:
carbon monoxide sensor malfunction. Sensor needs
service.
⑪ One Push Start: Press this button, the engine can
start and stop.
