Before Installation
06

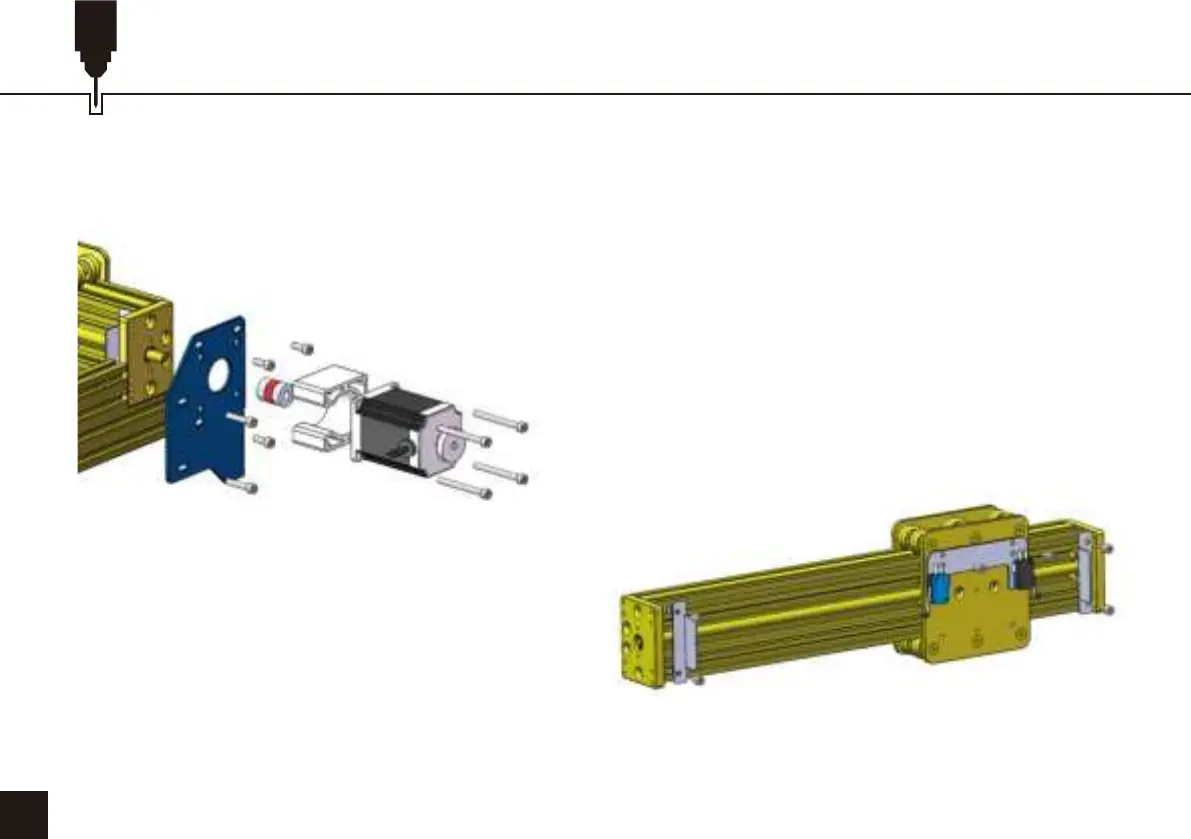

Step 7: Remove the Y axis Stepper Motor and 2 blue corner brackets of the CNC Base Frame.
Step 8: Remove the Y-Axis Limit Switch Assembly and Limit Block.
Step 7
Step 8
