13
4mm Allen Wrench

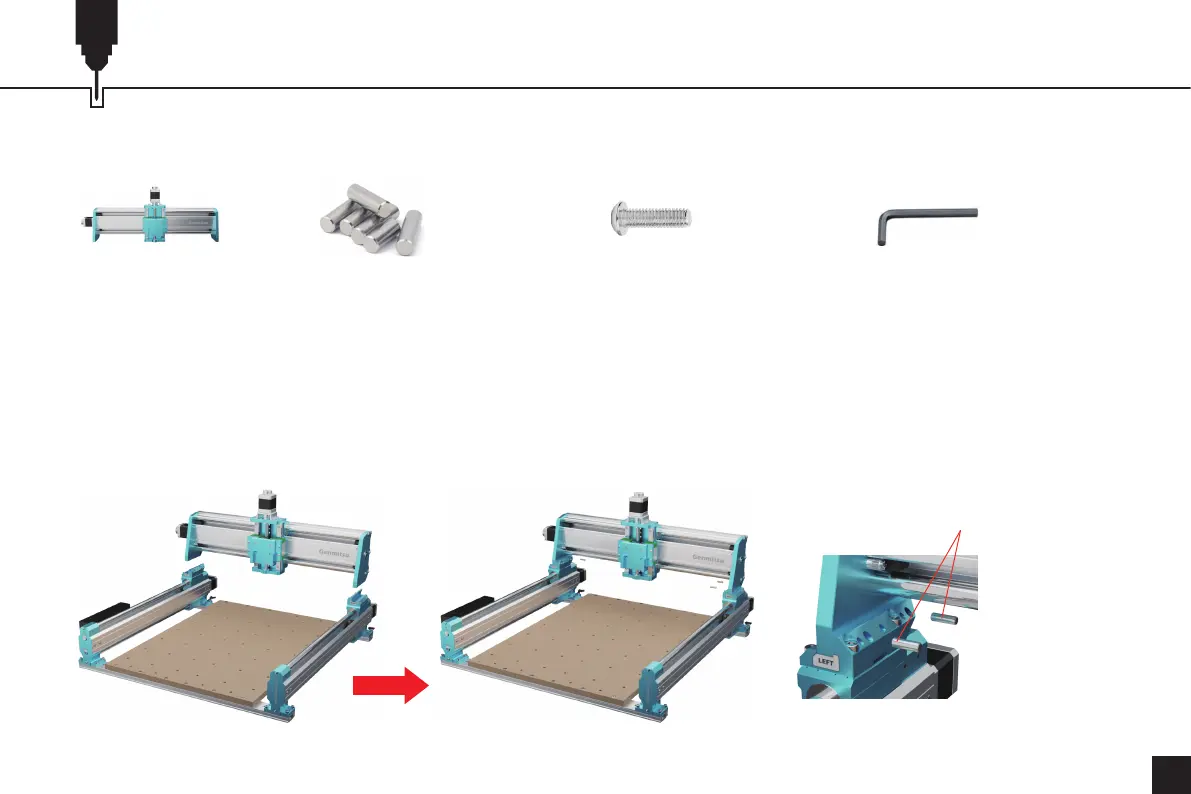

XZ-axis Module (4) D6-L20 Dowel Pin (6) M5×20 Rounded Hex Screw
What you need:
Mechanical Installation
4. Check that the vertical plate is fully inserted into the notches on both sides of the support blocks after you have initially positioned
the assembly.
5. Use (4) D6-L20mm pins to set the vertical plates.
(If you have difficulty installing the pins by hand, it is best to try installing them with additional tools, such as a rubber hammer, or a
wooden mallet.)
(4) D6-L20 Dowel Pin
To Next Page
