(4) M4×18 Socket Head Cap Screw
65mm Spindle Motor Mount Z-axis Clamp Mounting Plate
Mechanical Installation

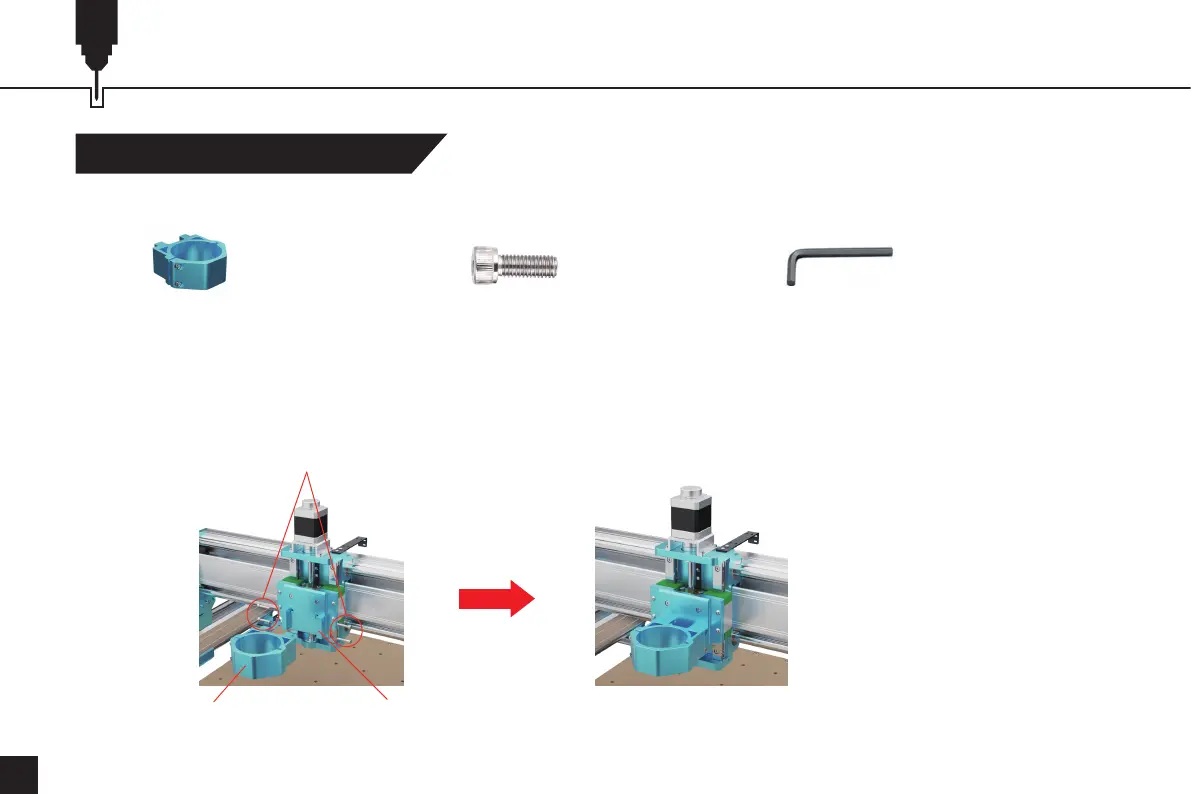

STEP 6 Installing the Spindle
1. Attach the spindle motor mount to the Z-axis clamp mounting plate and align the screw holes on both sides.
2. Use (4) M4×18mm through the Z-axis clamp mounting plate to install the spindle motor mount.
(Note: the screws cannot be locked tight now.)
3mm Allen Wrench
(4) M4×18 Socket Head Cap Screw
What you need:
Spindle Motor Mount (65mm)
