18
3PIN Signal Cable
Mechanical Installation

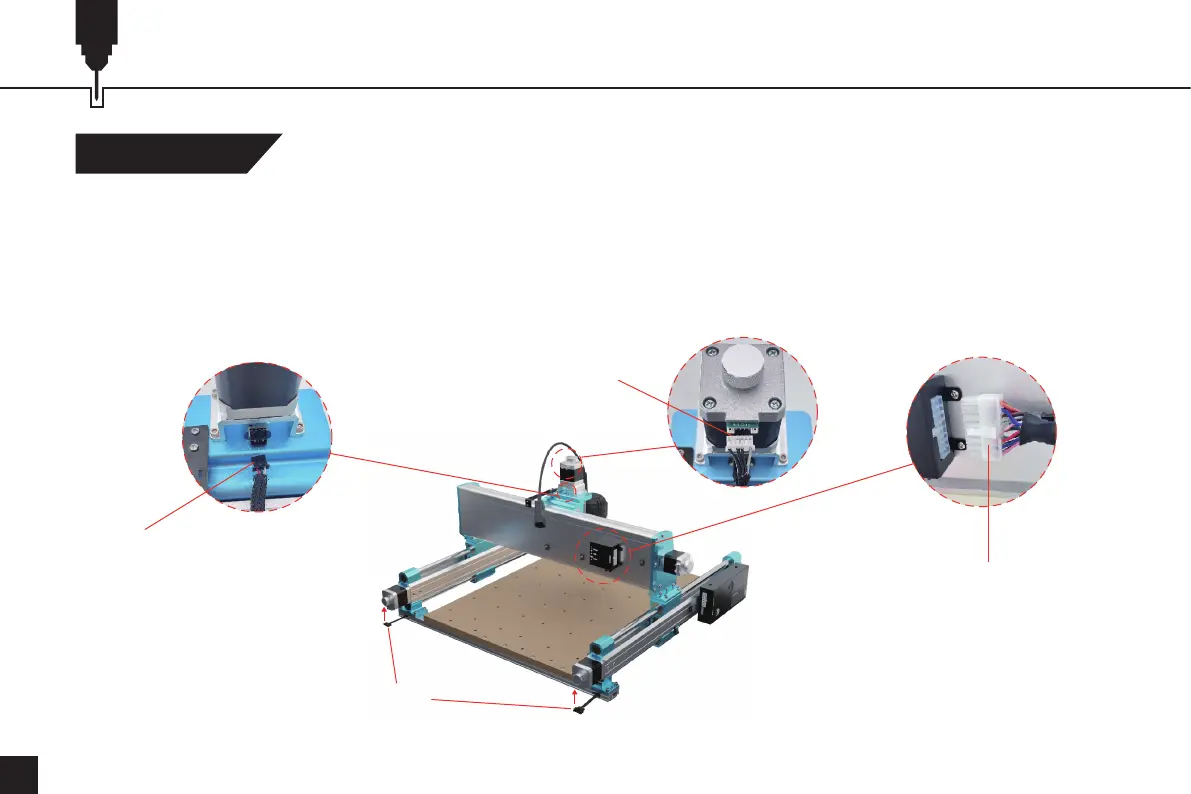

STEP 7 Wring
1. Plug the black terminal (3PIN signal cable) into the Z-axis limit switch board.
2. Plug the white terminal (4PIN motor cable) into the Z-axis motor.
3. Connect the XZ-axis cable on the Y-axis module (Left) to the X-Z Cable connector on the X-axis module.
4. Plug the (2) Y-axis motor cables into both Y-axis motors.
(Tips: Please press the white paddle and apply pressure to the docking port to ensure the two ports are in close contact and secured.)
Y-axis Motor Cable
4PIN Motor Cable
XZ-axis Cable
To Next Page
