Mechanical Installation

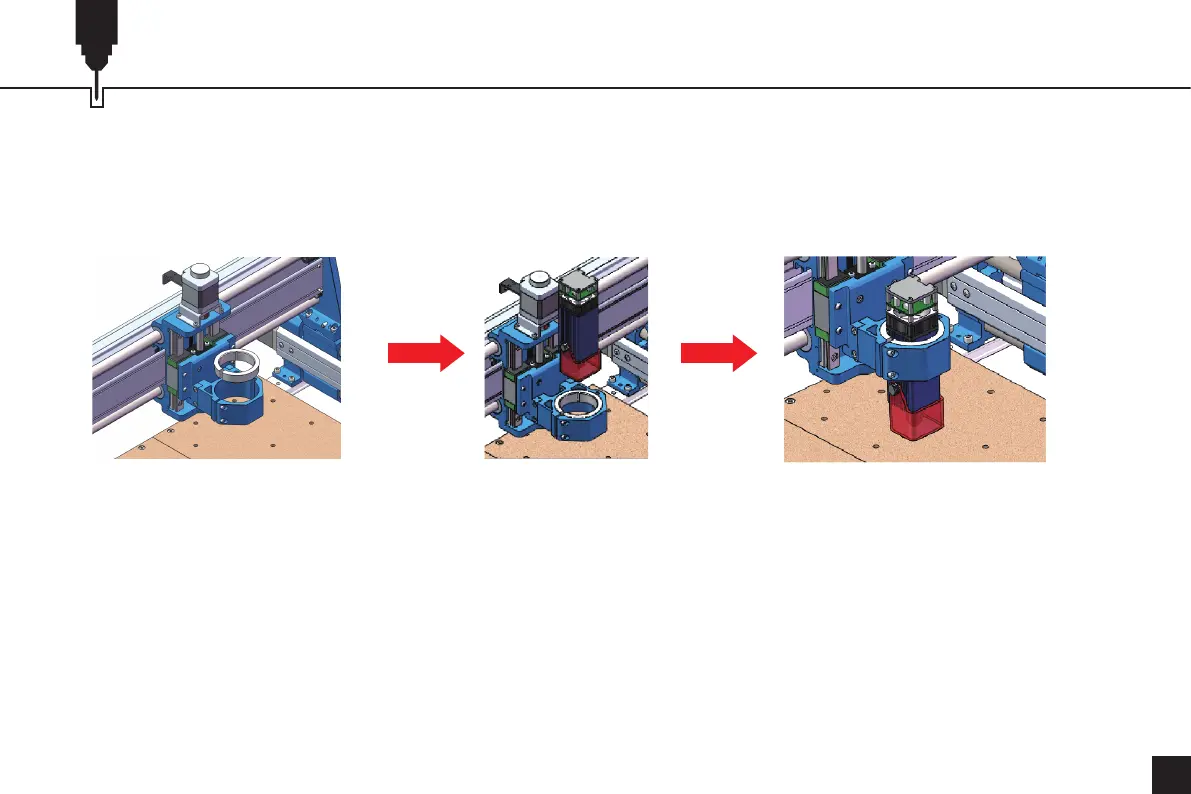

1. Install the ring into the spindle motor mount.
2. Install the laser module into the retaining ring.
3. Adjust the tightness of the spindle motor mount screws to hold the laser module in place.
