Perform the following pre
-installation steps:
1. Place kit components on a clean, padded surface.
2. Record your programmed radio stations.

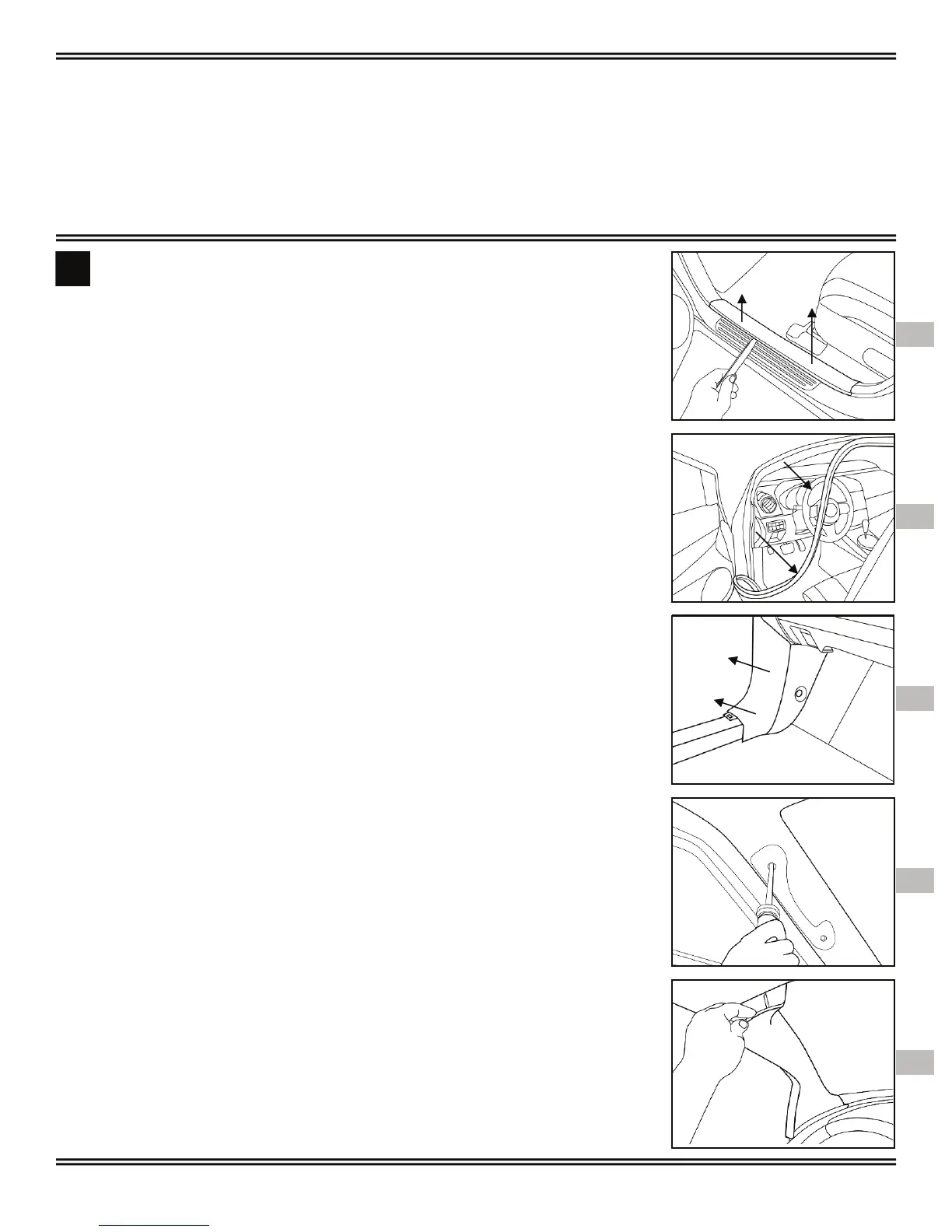

3. Remove driver side scuff plate. (Fig. 1)
4. Remove driver side door seal. (Fig. 2)
5. Remove driver side kick plate / cowl cover. (Fig. 3)
6. Remove driver side grab handle if equipped. (Fig. 4)
7. Remove driver side A-pillar trim. (Fig. 5)
INSTALLATION PRECAUTIONS / NOTES:
¾ Do not use excessive force when removing OEM mirror from windshield.
¾ Do not push fish-wire too far into dash to avoid damage to existing components.
¾ Do not place wire harness against objects with sharp edges that may cause electrical shorting.
¾ On vehicles equipped with A-pillar (side impact or SRS) airbags, verify mirror harness path remains
clear of airbag. Harness should follow and be secured to, existing OEM wiring with tie wraps.
¾ Verify that auto-dimming mirror harnesses do not in
terfere with brake, clutch, emergency brake or air
bag
