Page 4 of 11 Revision A 550-0426

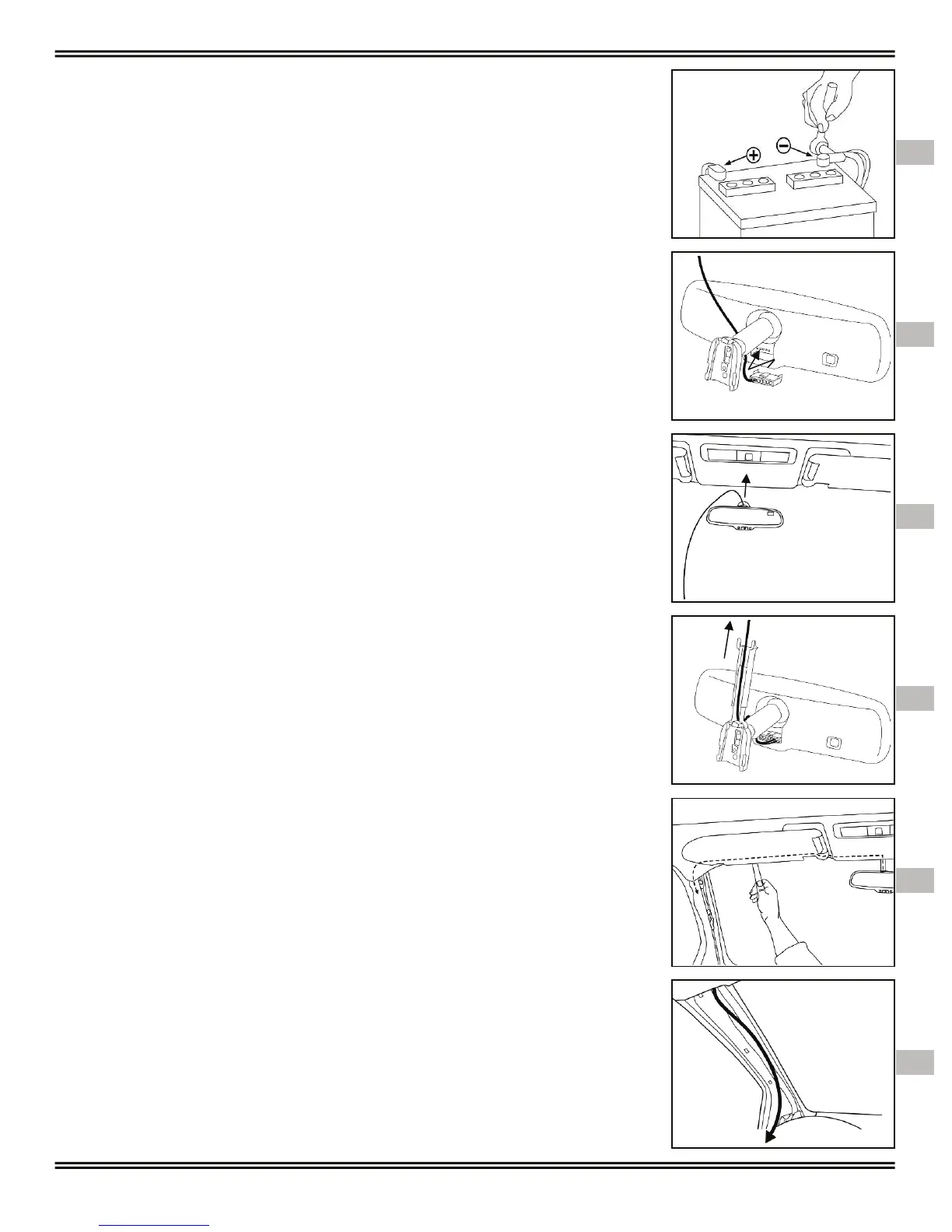

2. Disconnect vehicle's negative battery terminal. (Fig. 11)
3. Plug auto-dimming mirror harness into back of mirror. (Fig. 12)
4. Route harness up to vehicle headliner. (Fig. 13)
a) Install optional wire cover (if purchased). (Fig. 14)
5. Route haress across vehicle headliner to top of A-pillar on side of
vehicle where vehicle connection wires / fuse block were found.
a) Use panel removal tool to ensure harness is tucked between
headliner and roof of vehicle. (Fig. 15)
6. Route harness down A-pillar. (Fig. 16)
NOTE: Harness will be secured later in installation procedure.
