4. Have the crewmember lower and raise the visors as follows (to test
operation and clearance):
NOTE
Visor knobs can be moved to either side of the visor housing
depending on crewmember preference. See Page 23 for
instructions.
Inner Visor
a. Unlock the visor by
pushing the actuator
knob downward as
shown in Figure 6,
view A.
b. While holding the knob
down, raise or lower
the visor by sliding the
knob along the track.
c. Release the actuator
knob in any of the
visor lock positions.
Outer Visor
a. Unlock the outer
visor by turning the
center lock knob
counterclockwise as
shown in Figure 6,
view B.
b. Rotate the visor by
sliding the knob along
the housing slot.
c. Lock the visor by
turning the knob
clockwise.
(Continued on next page)
5

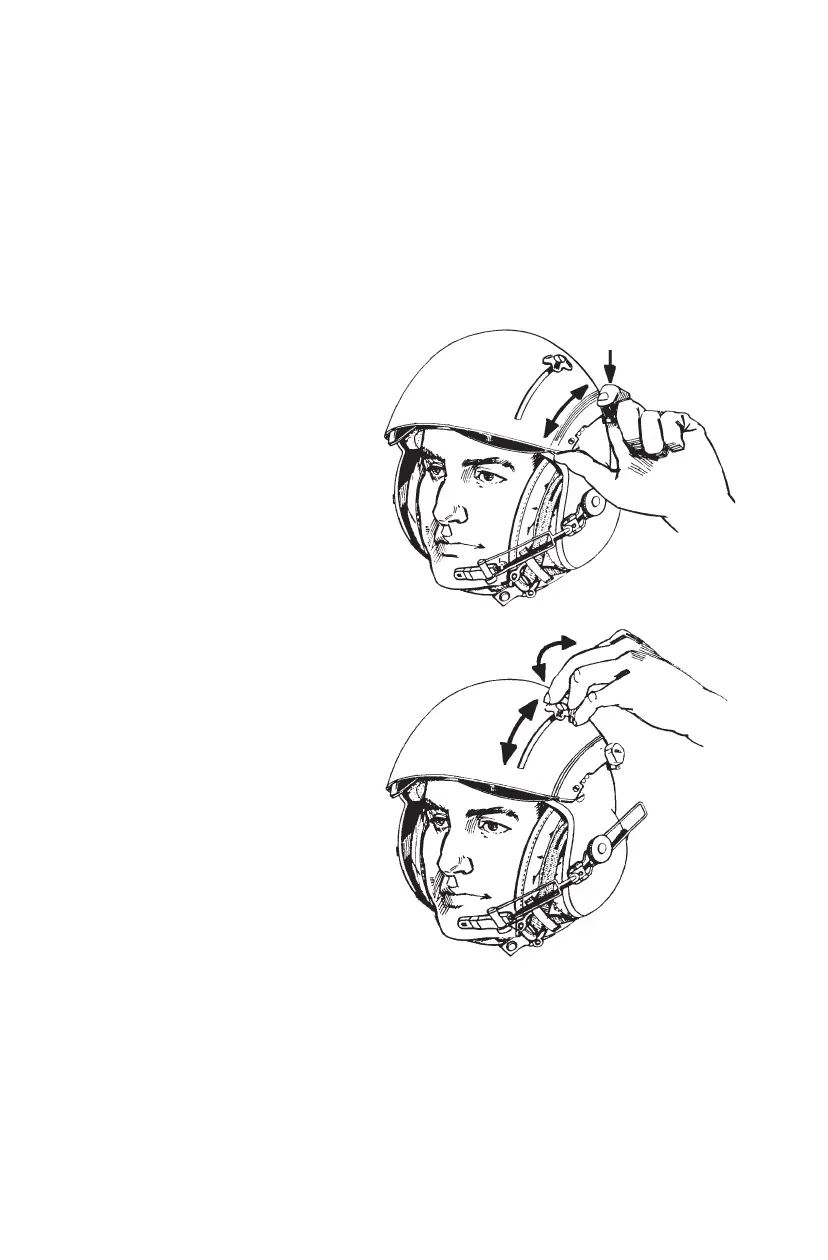

Figure 6. Raising and Lowering Visors
A
B
