Gerhardt Vapodest 10s - Rear View Identification

7
Vapodest 10s
3 Description of the system
3.4. Rear view
Structural components and parts
1 Inlet for NaOH
Connection PVC-tubing 8/12, Order-No.: 22604
2 Level detector:
Connector for diode plug, 3-pin or level detector
for set of storage tanks KAN 20
3 Appliance plug with mains cable
Connection for mains cable, Order-No.: 1311
 4 Excesscurrentswitch,10A,Order-No.:15378
  Cutsoffincaseofexcessivecurrentconsumption
5 Switch to rinse the steam generator
Also see Chapter 7.2.2. ‘Cleaning of steam gene-
rator’

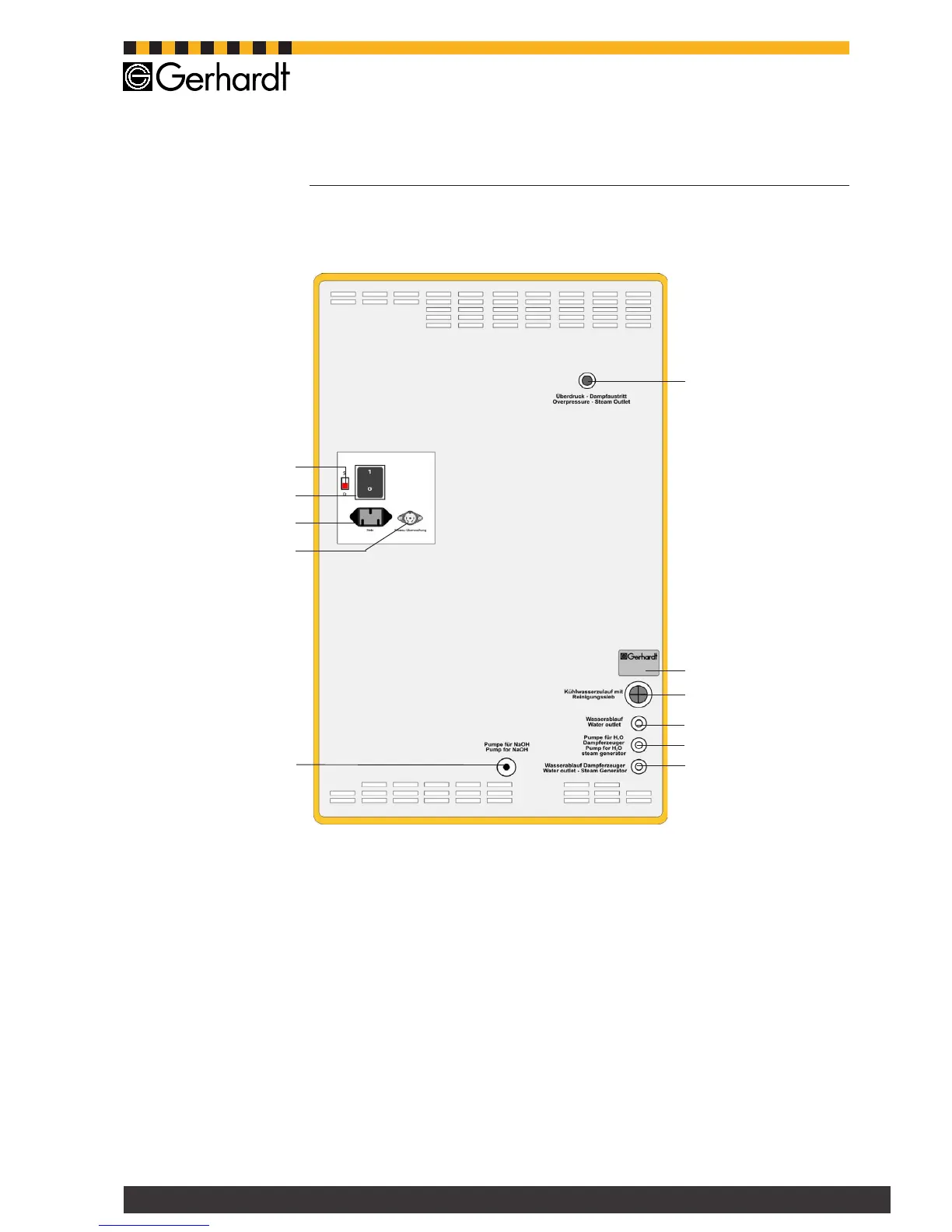

Fig. 3.4: Rear view Vapodest 10
 6 Excesspressure-steamoutlet
7 Type plate
8 Cooling water inlet with sieve:
Connection thread 3/4 Zoll for water inlet tubing
10/17, Order-No.: 22802
9 Cooling water outlet
Connection for PVC-tubing 8/12, Order-No.: 22604
10 Water inlet for H
2
O steam generator
Connection for PVC-tubing 8/12, Order-No.: 22604
11 Water outlet steam generator
Connection PVC-tubing 8/12, Order-No.: 22604
1
2
3
4
5
6
7
8
9
10
11
