Waste-gasexhaustKT,KST
ATTACKKT,KSTboilersareapprovedbythestandardSTNEN483forthetypesC13,
C33,C43,C53,C83.

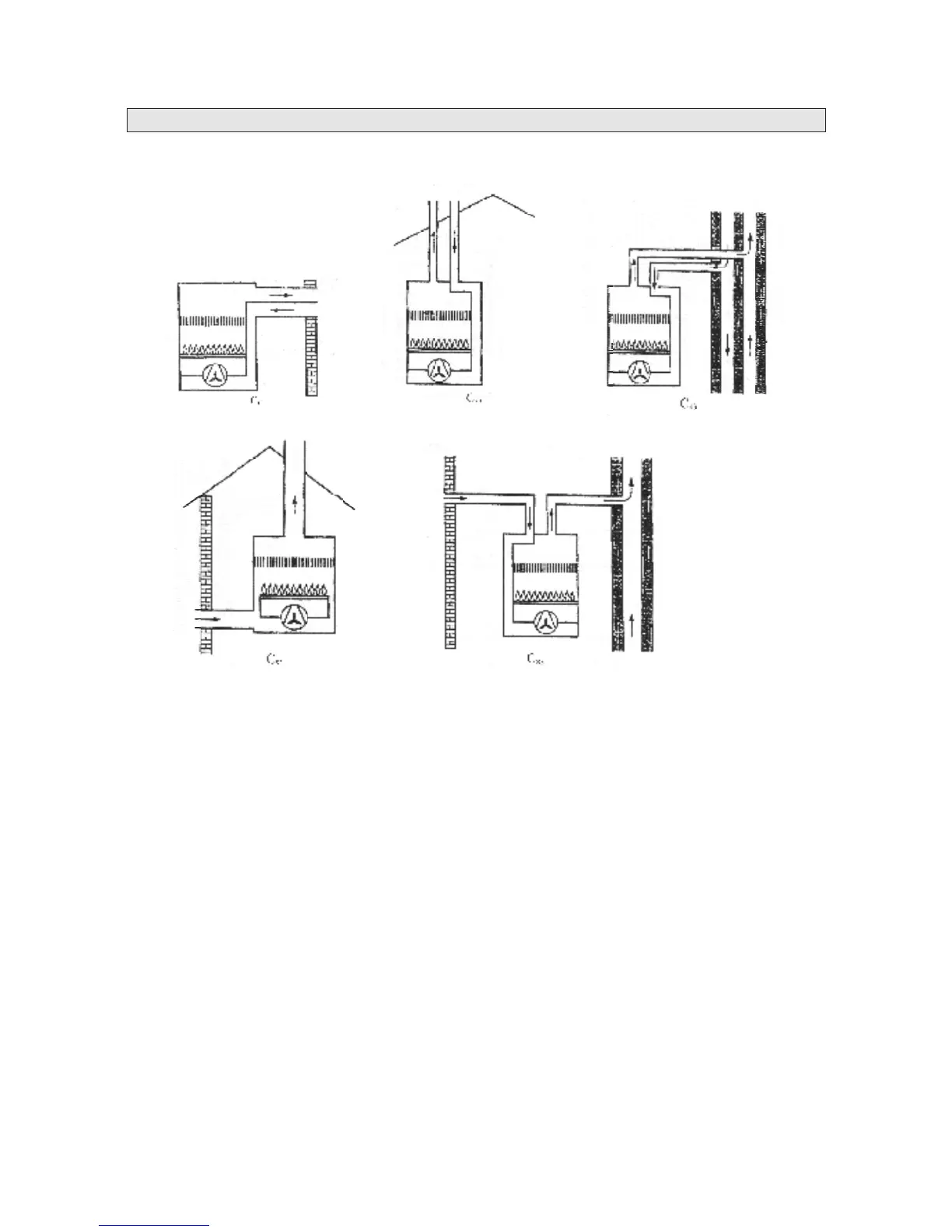

C13-typehorizontalcoaxialtype,wastegasoutletandairintakeareinequalpressure
conditions.
C33-typeverticalcoaxialtype,wastegasoutletandairintakeareinequalpressure
conditions.
C43-typedoubledtypeintoacommonflueshaft.
C53-typeseparatedairintakeandwastegasoutletwiththeintakethrough
thewallandwastegasexhaustthroughtheroof.Thistypemustnotbelocatedonthe
oppositewallsofthebuilding.
C83-typeseparatedairintakeandwastegasexhausttoaseparatedorcommonflue.
Waste-gasexhaustandcombustionaircomethroughdoublepipingdeliveredbytheboiler
producerwhichcanbeorderedinrequiredamountbytheproject(horizontalorvertical
exhaust)includingsealingcollars,roofreducingpiecesandsoon.
Basicrequirementsforwastegasexhaustfortheapplianceswithaburnerandforcedintake
ofcombustionairaresetbytechnicalrules.
–verticalpiping60/100:2,7m
–horizontalpiping60/100:3m
–whenadistributorandpipingforwastegasexhaustandairintakeof80mmareused,the
sumoflengthsofsinglecomponentsusedinthissystemmustnotbehigherthan10m
–each90°elbowinsertedshortensthelengthin0.75manda45°elbowshortensitin0.5m
–forverticalexhaustthrougharoofitisnecessarytouseacondensatecollector
Maximumlengthofwastegasexhaustpermittedbytheproducer:
