P.21
3. Fix remote control holder
The holder shall be installed at appropriate height. Size of the wall hole should be in line with the
hole of the holder. Drill a Φ8 hole on wall and tap a Φ8 plastic expansion tube into it. Fix the
holder on the wall. The holder should be fixed in a location away from water. After putting in the
batteries (AAA x 2), press every button to make sure everything runs well.
Note:
The controller should not be installed in position too close to the bathtub or shower.
Installation Instructions
Install the main body and the switch in accordance to different installation situation.
1. The opening of the window should be around 293mm x 293mm. Adjust this reserved size
according to the actual situation as necessary.

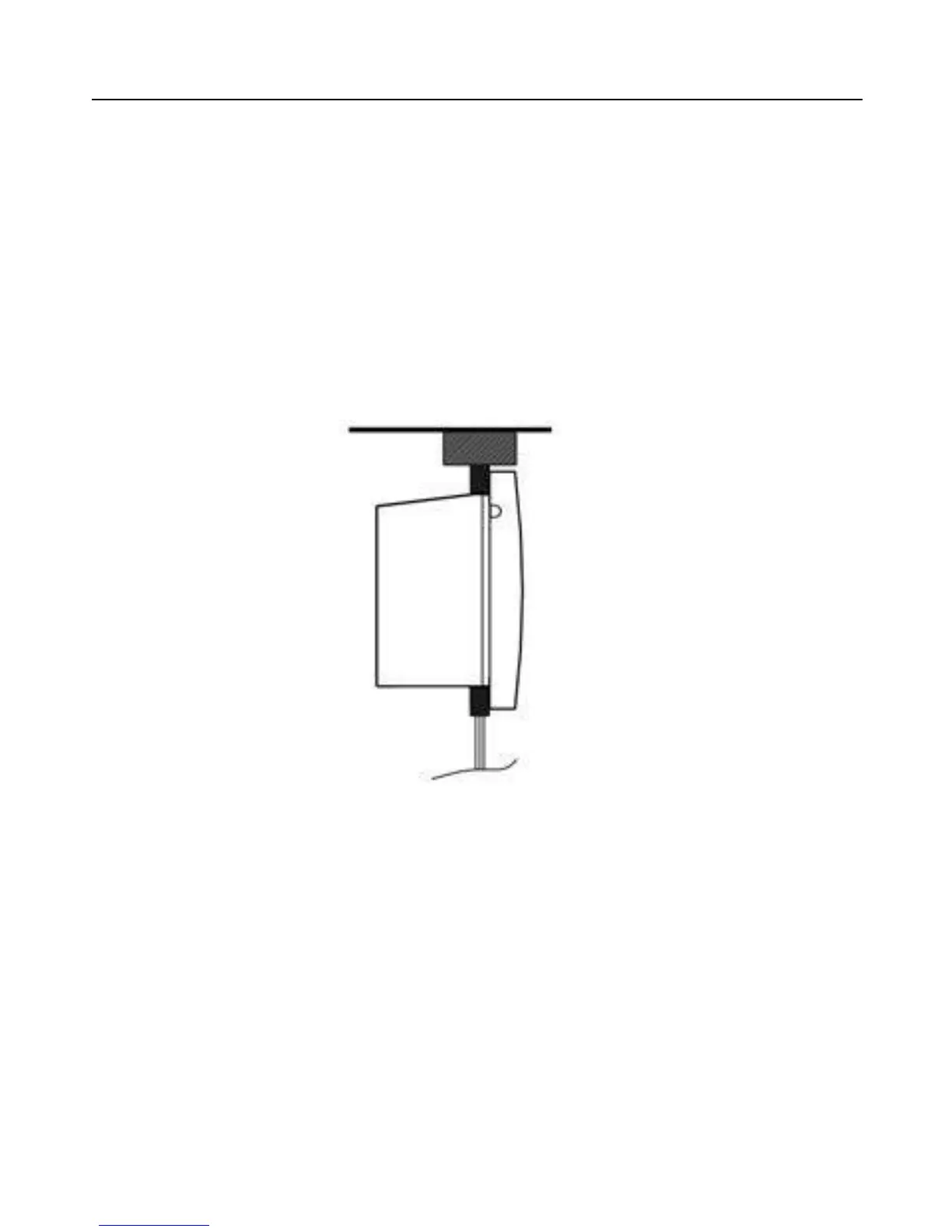

2. Push the waterproof shell together with the machine into the reserved hole. Fix the waterproof
shell with screws on the aluminum frame. And then use glass glue filling to seal. (Fig. 6)
Note: Make sure the outlet hole faces downward.
(Fig. 6)
