German pool SGV-7030 - Product Structure; Oven Components Overview

P.8 P.9
≥560
≥550
≥590
≥590
≥562
≥562
35
35
≥
20
≥
15
50
50
Air Inlet
Air Inlet
Exhaust vents
Exhaust vents
Tall cabinet installation
Remove back
panel for
ventilation
Remove back
panel for
ventilation
Low cabinet installation
558
595
584
595
543
20
543
482
543
≥572
20
20
h
Installation Top View Installation Side View
Socket placement
suggestion
Self-tapping screw securing point

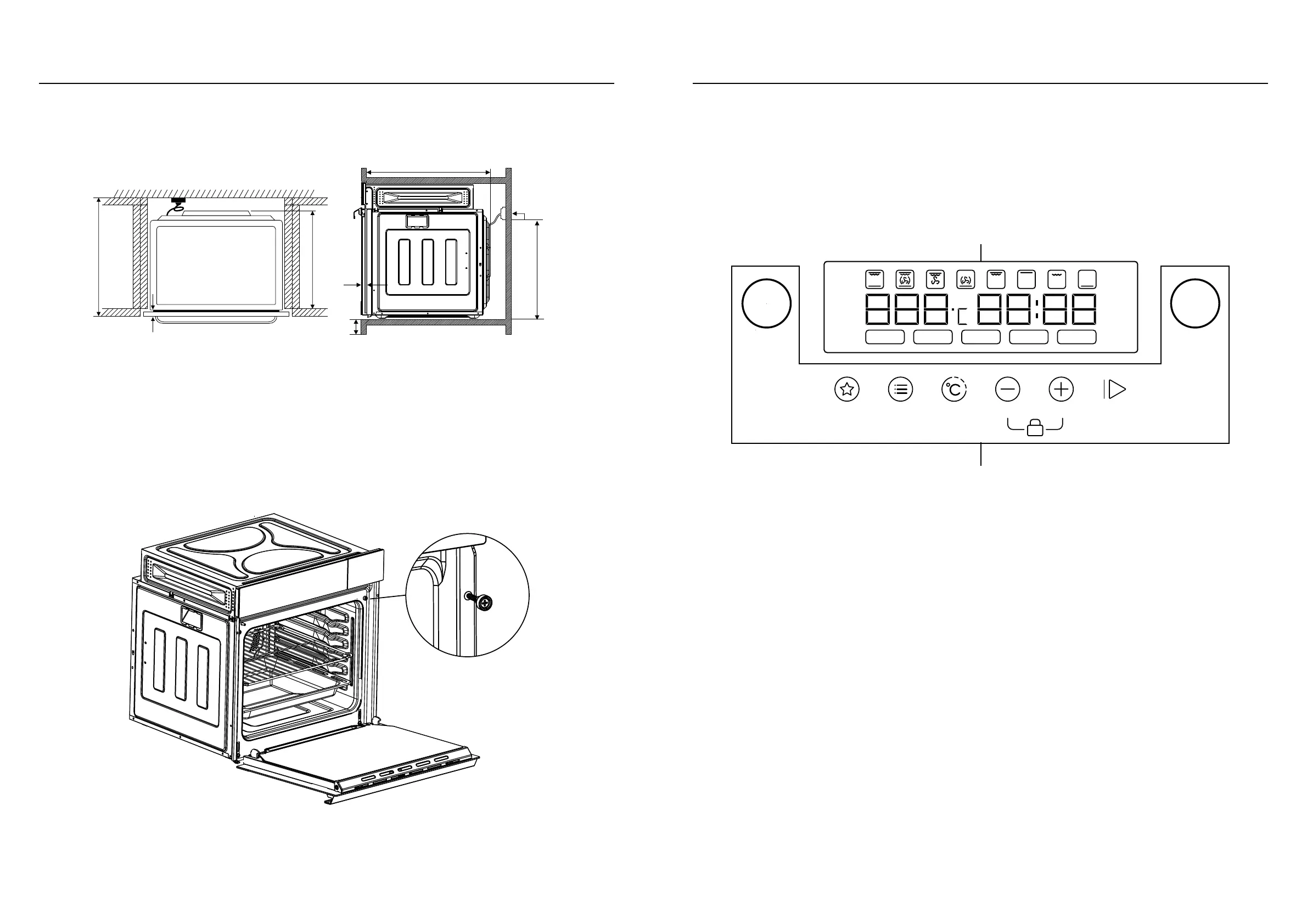

Installation Instructions
Cabinet Cutout Dimensions (in mm)
Operating Instructions
BEFORE INITIAL USE
1. Remove the special film covering the door glass.
2. Thoroughly clean the interior of the product (use moist cloth to wipe the product’s exterior).
3. Fill the water tank with water, and run the product in Steam Mode at 100°C for 45 minutes
(or above) to remove the new product smell.
CONTROL PANEL
MY
FAVOURITE
PRESET
RECIPE
TEMPERATURE/
TIME
START/
PAUSE
DOWN UP
8.7
STEAM GRILL CRISPY GRILL STEAM RECIPE FAVOURITE
FAV 1
FAV 2
FAV 3
FAV 4
PREHEAT
OPERATING
WATER
LOCK
GRILL STEAM
Control Keys
LED Display
