Installing the sampling valve

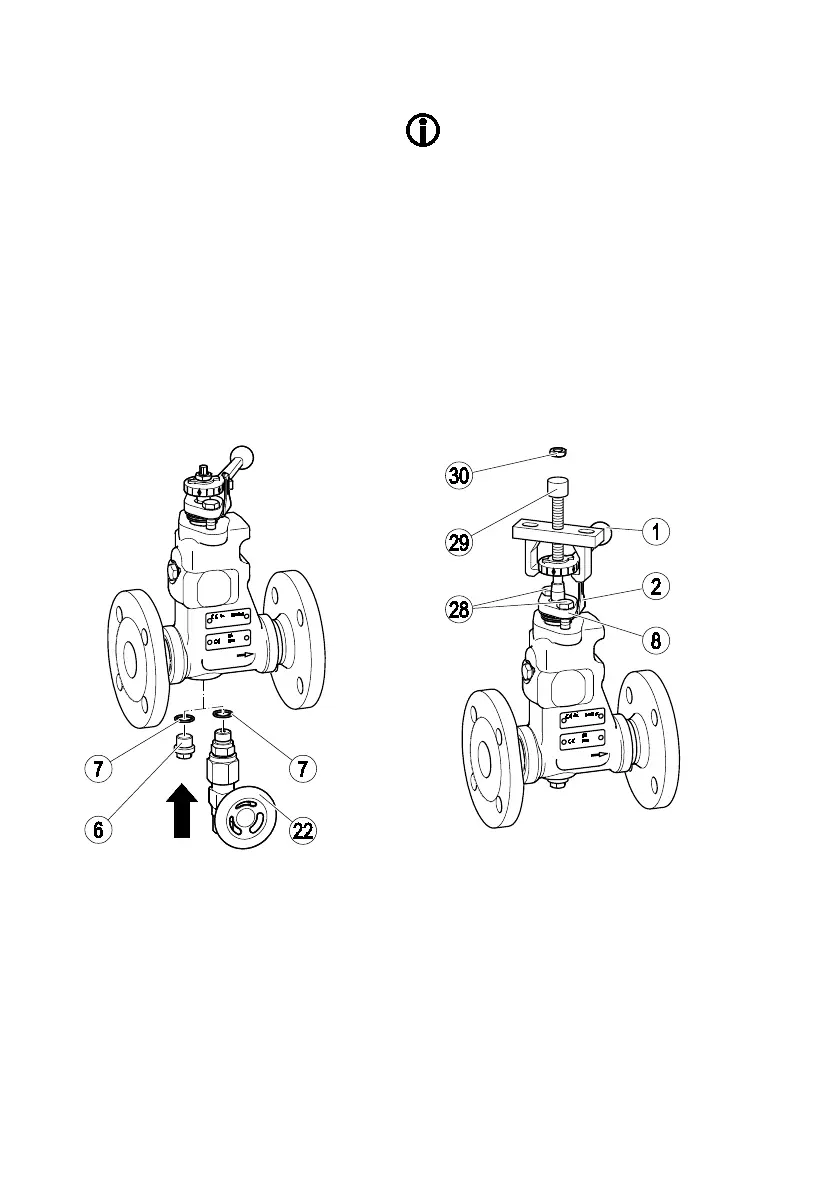

Remove the sealing plug (6).
Remove the sealing ring (7) from the body.
Insert the supplied sealing ring
A17 × 23 × 1.5 mm (7) in the hole.
Read and follow the instructions in the sampling
valve installation & operating manual.
Coat the thread and contact surfaces with
temperature-resistant lubricant.
The lubricant must have the same properties as
OKS 217.
Screw the sampling valve (22) into the hole in
the body with a torque of 130 Nm.
Positioning the control lever
In BA models, you can change the position
of the control lever by 180°.
You will find information on the required
tools on page
26.
Proceed as follows:
Remove the hex nuts (30) from the control lever.
Insert the puller (29) beneath the control lever.
Remove the control lever (1).
Remove the two stuffing box screws (28).
Remove the stuffing box gland (8).
Remove the dial (2).
