Operating instructions
6 Version 990426 5000376-00

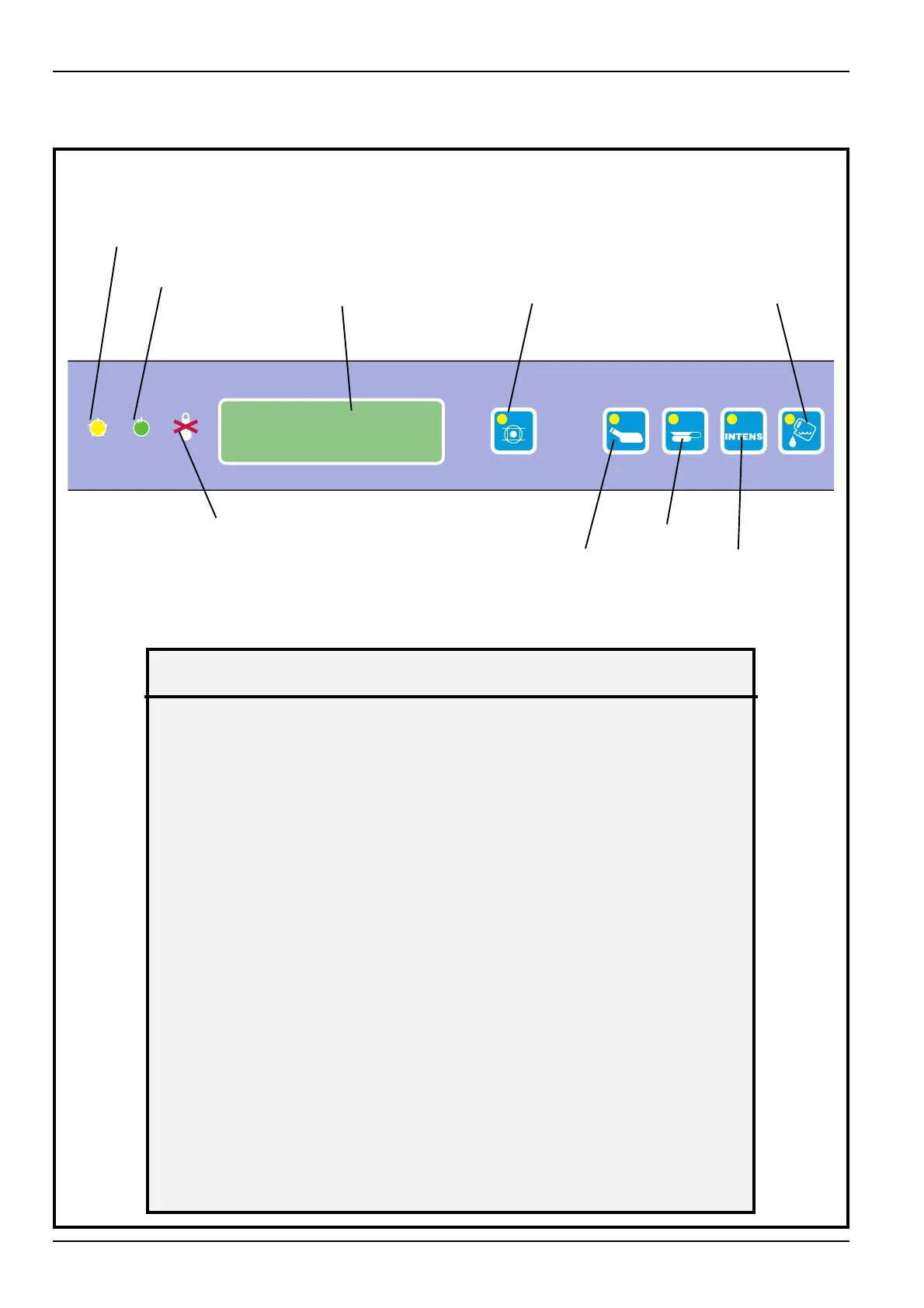

Control panel
S-606dekal
Display window
Normal programme
Economy programme
Red: Disinfection
not achieved, or
other fault code F
Green: Process completed
Yellow: Process running
Intensive programme
Cleaning agent
Peripheral washing
&=q
Button/ Function
lamp
L When the yellow lamp lights: The machine is busy running a programme.
The temperature and cleaning phase appear in the display window.
M When the green lamp lights: The programme is complete. The green
lamp goes out when the door is opened, and the maximum process
temperature is shown in the display window.
K When the red lamp lights: The machine has not yet reached its disinfection
temperature, or some other fault has occurred (Fault code F).
t Button for starting the economy programme for urinals.
u Button for starting the normal programme for normally soiled items.
r Button for starting the intensive programme for heavily soiled items
s+u Button combination to start the programme with cleaning agent for
general re-usable items, e.g. hand bowls.
s+r Button combination to start the programme with cleaning agent for
heavily soiled items, e.g. dressing instruments.
vv
vv
v Button to start peripheral washing (the button must be kept depressed
for the entire duration of the rinsing phase). N.B. No disinfection!
Foot pedal Starts the normal programme.
